EN4080/EN7295/EN7380/EN7580/EN7581
IP Gateway Family
Installation and Operation Manual
1 Overview
Inovonics IP gateways combine the functionality of an Inovonics receiver
with the flexibility of an IP appliance. Each gateway kit starts with an
EN4080 IP gateway, and is loaded with a license for your specific
application. Kits may include additional hardware and/or accessories as
described in the following sections.
Inovonics IP gateways are available in the following configurations:
Part # Product name
EN7580 TapWatch Gateway
EN7581 TapWatch Gateway Lite
EN7380 Senior Living Gateway
EN7295 Security Gateway
EN4080 IP Gateway
1.1 Resources
Unless otherwise specified, all documentation
is available in the documentation library at
www.inovonics.com/resources/technical-
documents or by using the QR code below.
For product and installation videos visit us at
www.inovonics.com/videos
code below.
1.2 EN7580/EN7581 TapWatch Gateway
The EN7580 TapWatch gateway and EN7581 TapWatch gateway lite
provide direct access reads data from Inovonics submetering sensors for
integration into billing software via TapWatch APIs, as well as the manual
access of reads data through the TapWatch application. Designed for large
properties, the EN7580 TapWatch gateway supports up to 2000
submetering transmitters; supporting 50 transmitters and repeaters, the
EN7581 TapWatch gateway lite is ideal for smaller residential or light
commercial properties. This kit includes an ACC 610 transformer and
power cable for installations using line power.
For TapWatch application information, see the TapWatch Application User
Manual available under "Installation Instructions" in the documentation
library.
5.12.23 357-06836-05 Rev A © Inovonics, 2023 - www.inovonics.com
Market
Multi-Family Submetering
Multi-Family Submetering
Senior Living
Commercial Security
Commercial Monitoring
or use the QR
1.3 EN7380 Senior Living Gateway
The EN7380 senior living gateway receives EchoStream messages from
EchoStream senior living transmitters, locators and repeaters, filtering out
unregistered transmitter IDs (TXIDs), and enabling cloud-based Inovonics
senior living solutions to be delivered via API to your application software.
This kit includes an ACC 610 transformer and power cable for installations
using line power.
1.4 EN7295 Security Gateway
The EN7295 security gateway receives EchoStream messages from
Inovonics security devices, filtering out unregistered transmitter IDs
(TXIDs) before sending the data to Inovonics cloud services via API. This
kit includes a EN2233S test pendant plus an ACC 610 transformer and
power cable for installations using line power.
1.5 EN4080 IP Gateway
1.6 The EN4080 IP gateway allows for one of two licenses. With a
message queuing telemetry transport (MQTT) license, the IP gateway
outputs messages in the MQTT protocol; with a BACnet/IP license, the IP
gateway outputs messages in the BACnet/IP protocol, which is widely used
for building automation and control networks.
For MQTT license information, see the E*4080 IP Gateway Amazon Web
Services MQTT Quick Start Tech Note; for BACnet license information, see
the E*4080 IP Gateway BACnet/IP Quick Start Tech Note. Both are
available under "Tech Notes" in the documentation library.
1.7 Inovonics Contact Information
If you have any problems with this procedure, contact Inovonics technical
services:
• E-mail: support@inovonics.com.
• Phone: 1.800.782.2709, option 2.
2 Installation
1. Review all installation instructions, as well as section 3, "Tips and
Notes" on page 3, before beginning installation to ensure you are
familiar with the process and have everything you need to install the IP
gateway.
2. Record the following information for future reference:
• The appropriate MAC addresses from the label on the back of the
housing.
• The eight-character alphanumeric authorization code from the label
on the lower right-hand portion of the printed circuit board, just above
the Inovonics logo.
3. Use a Phillips screwdriver to open the IP gateway housing.

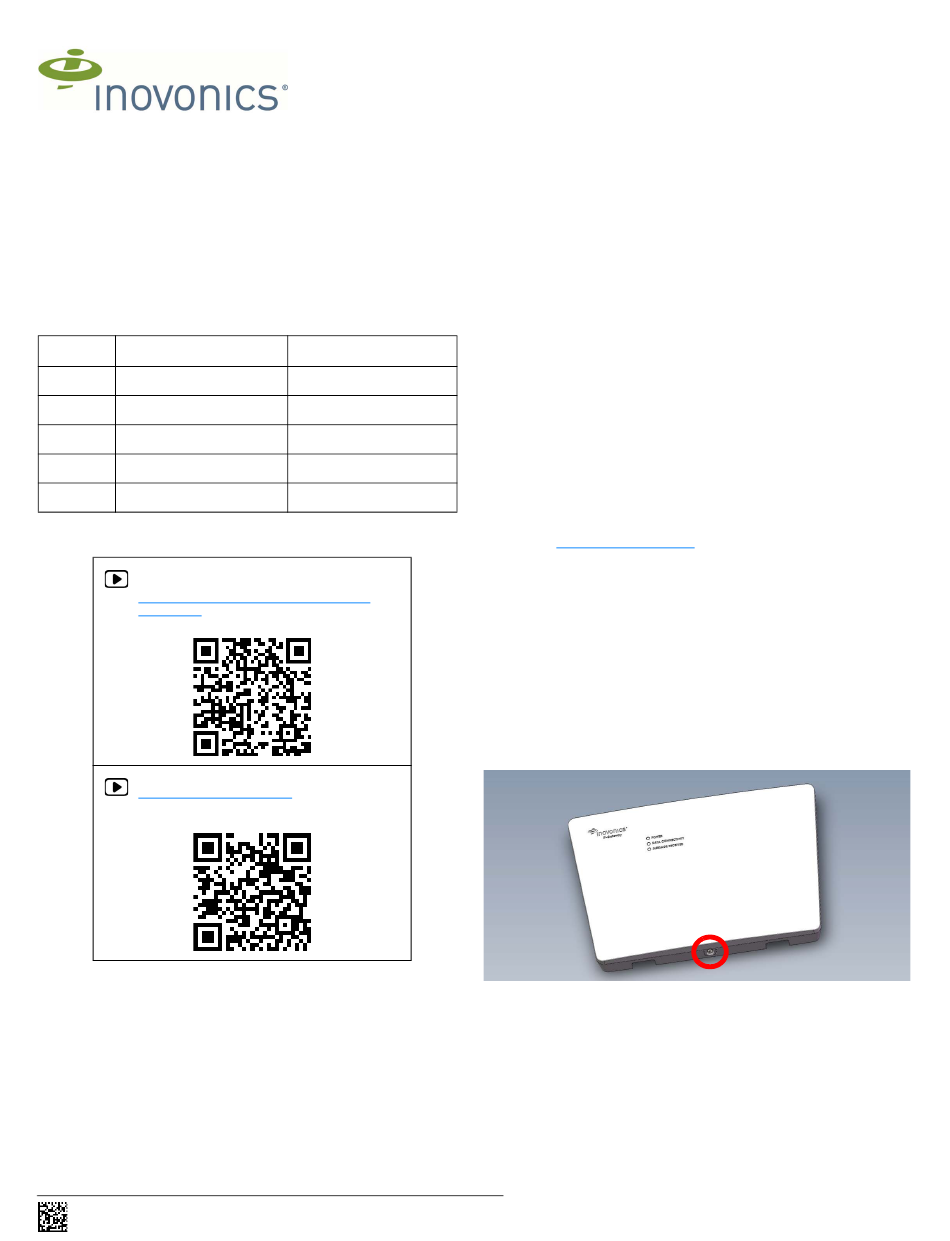

Figure 1 Open the IP gateway housing.
