Inovonics EE4080 Installation Instructions

1 Overview

The EE4080 IP gateway combines the functionality of an Inovonics
receiver with the flexibility of an IP appliance, receiving EchoStream data
and outputting messages directly to an IP-based application.

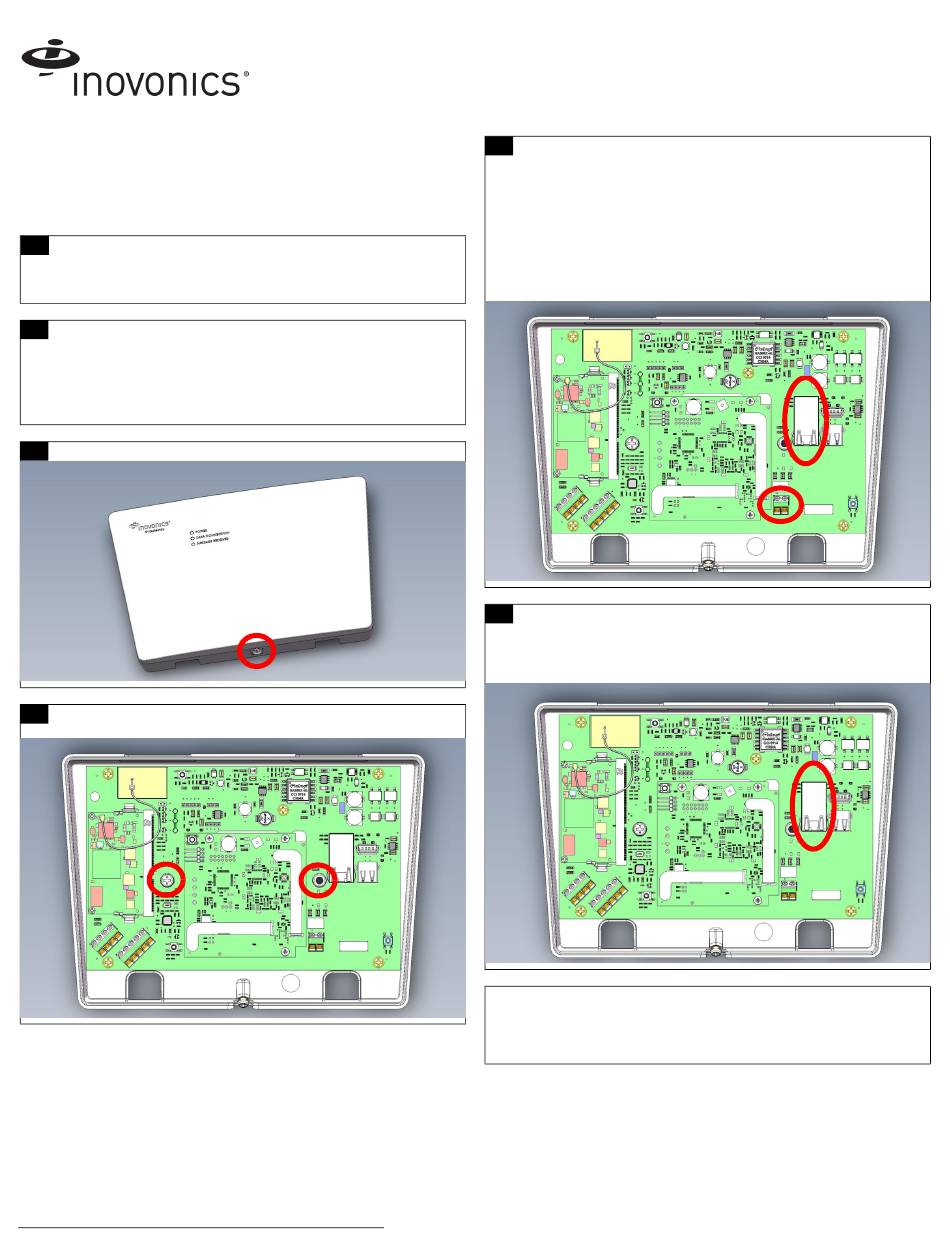

2 Installation

1
Review all installation instructions, as well as section 3, "Tips and
Notes" on page 3, before beginning installation to ensure you are
familiar with the process and have everything you need to install
the IP gateway.
2
Record the following information for future reference:
• Record the appropriate MAC addresses from the label on the
back of the housing.
• Record the eight-character alphanumeric authorization code
from the label on the lower right-hand portion of the printed
circuit board, just above the Inovonics logo.
3
Use a Phillips screwdriver to open the IP gateway housing.
4
Use the included screws and drywall anchors to flush-mount the
IP gateway.
6.5.19 357-06982-02 Rev A © Inovonics, 2019
5
Connect power to the IP gateway, routing cabling through the IP
gateway housing knockout.
• If using line power, connect a power supply to the power
terminal blocks per the power supply manufacturer's
instructions. See section 5, "Specification" on page 3 for
details.
• If using Power over Ethernet (PoE), connect one end of a
RJ45 Ethernet cable to the RJ45 Ethernet jack, and connect
the other end to a PoE capable network switch. Ensure 10/
100BASE-T Ethernet with Dynamic Host Configuration
Protocol (DHCP) network management protocol.
6
If using line power, connect one end of a RJ45 Ethernet cable to
a RJ45 Ethernet jack, and connect the other end to your LAN to
establish Internet connectivity.
• Ensure 10/100BASE-T Ethernet and DHCP network
management protocol.
Note: Steps 7 through 12 are generic configuration instructions for the IP
gateway. For instructions for your individual license, see the
E*4080 IP Gateway Amazon Web Services MQTT Quick Start
Tech Note or the E*4080 IP Gateway BACnet/IP Quick Start Tech
Note available in the documentation library at www.inovonics.com.
