Inovonics EN6080 Installation Instructions

EN6080 Area Control Gateway
Installation Instructions

1 Overview

The Inovonics EN6080 area control gateway bridges the proprietary
Inovonics commercial mesh network to a standard TCP-IP over Ethernet
LAN. Featuring a PSIA-compliant set of RESTful web services, the EN6080
area control gateway is designed to ensure interoperability with other IP-
enabled devices across the security industry.

1.1 Installing an Inovonics Security System

An EchoStream survey kit should be used to establish an EchoStream
system. The EchoStream survey kit measures the signal strength of high-
power repeater and sensor messages to help optimize your EchoStream
system.

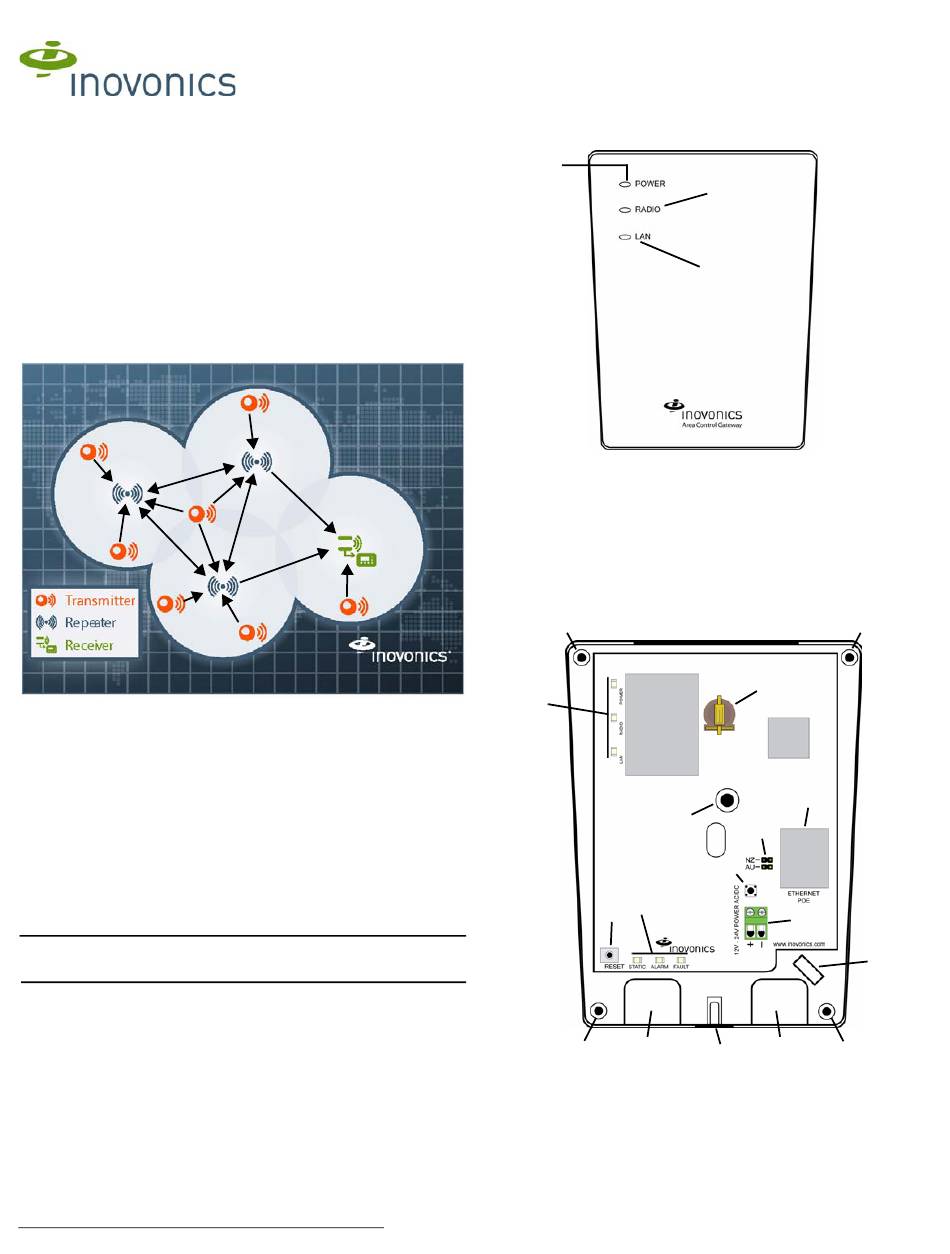

Figure 1 Sample EchoStream system
The EchoStream survey kit provides you with two signal strength
measurements: signal level and signal margin.
Signal level
The signal level is the measurement of the overall decibel level of the
message.
Signal margin
The signal margin is the measurement of the decibel level of the message,
minus the decibel level of any interfering signals. Inovonics equipment
should be placed within a facility such that all end-devices produce signal
margin readings of at least 4 decibels.
Both the signal level and signal margin are measured in decibels. Because
signal strength and signal margin are measured on a logarithmic scale, the
difference between a decibel level of 3 (Weak) and a decibel level of 4
(Good) is a much larger difference than it would be on a linear scale.
Note: For more information about the EchoStream survey kit, see the EN/
®
EE7016SK EchoStream Survey Kit Installation and Operation Manual.

1.2 Inovonics Wireless Contact Information

If you have any problems with this procedure, contact Inovonics Wireless
technical services:
• E-mail: support@inovonics.com
• Phone: (800) 782-2709; (303) 939-9336
5.8.12 06369B © Inovonics, 2012 - www.inovonics.com

1.3 EN6080 Area Control Gateway Front Panel

A
Figure 2 EN6080 front panel
A Power LED B Radio LED
Operation LEDs
Power LED: Green indicates the presence of line power or power over
Ethernet.
Radio LED: Green indicates that the device is decoding messages from the
wireless network.
LAN LED: Green indicates Ethernet link.

1.4 EN6080 Area Control Gateway Internal Components

A
F
E
H
A I
Figure 3 IBEX internal components
A Wall mount holes B Housing cover release
screw
D RJ45 Ethernet jack E Operation LEDs
G Frequency band H Reset button
selection pins
J Wall tamper mounting K Housing tamper
hole switch
M Battery holder
B
C
C LAN LED
M
D
J
G
K
C
I
A
B
C Power connections
F Diagnostic LEDs
I Cabling port
L Cabling tie loop
A
L
