8088-24 Inch Wheel Assembly Instructions

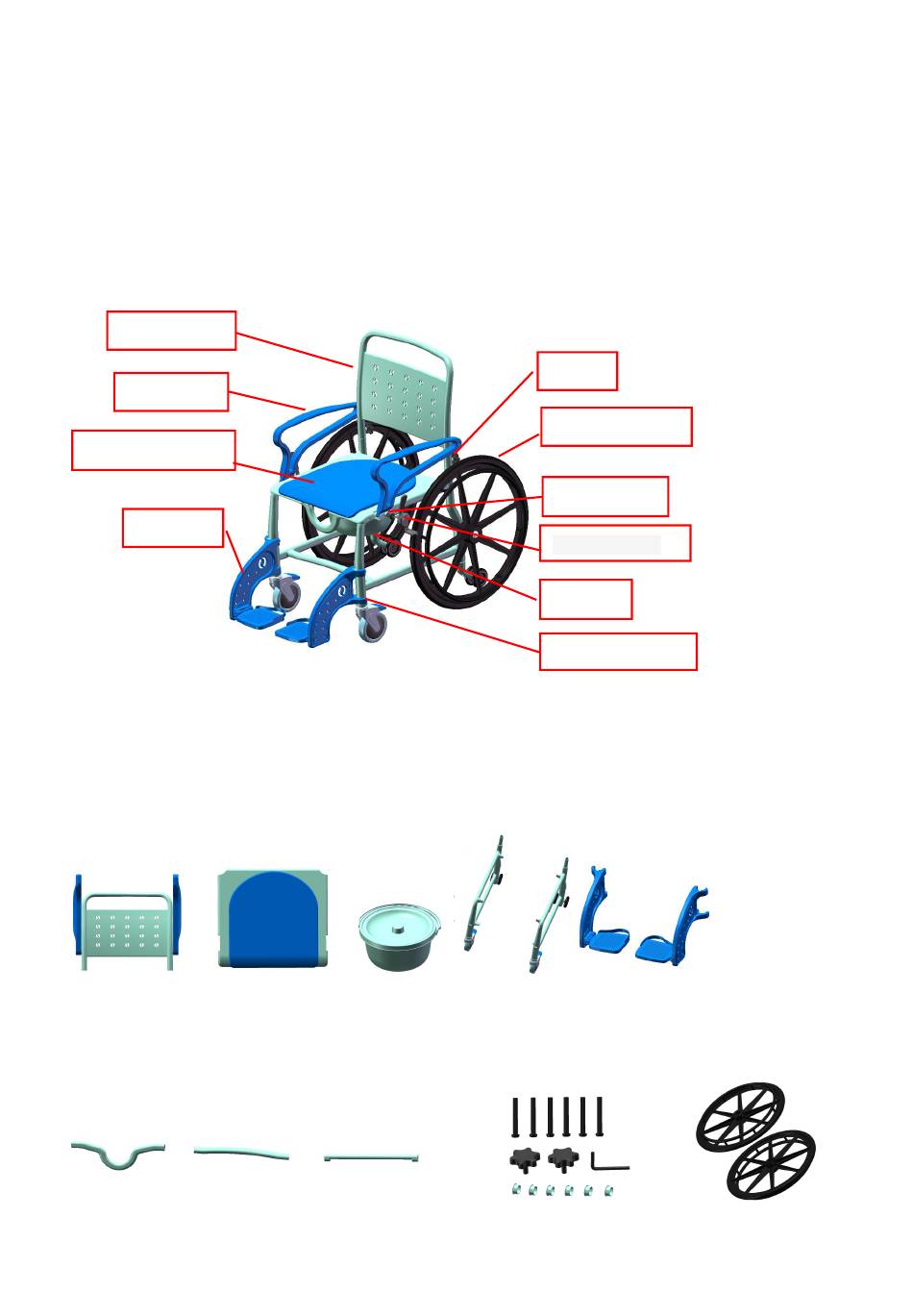

Component
s
1. Backrest
2. Armrest
3. PU Seat Cushion
4. Footrest
Assembly Instruction
1.Take out all components from cartons.
Backrest
Seat Plate
Front Upper
Front lower
Connecting Pipe
Connecting Pipe
Bucket
Left and right
main frames
Rear
The sealing bag has Screws、 24 Inch Wheels
Connecting pipe
Locks、Allen Key and
Cap Nuts
5. Lock
6. 24 Inch Wheel
7. Pull Pin
8. Hand Brake
9. Bucket
10. Brake Wheel
Footrests*2
