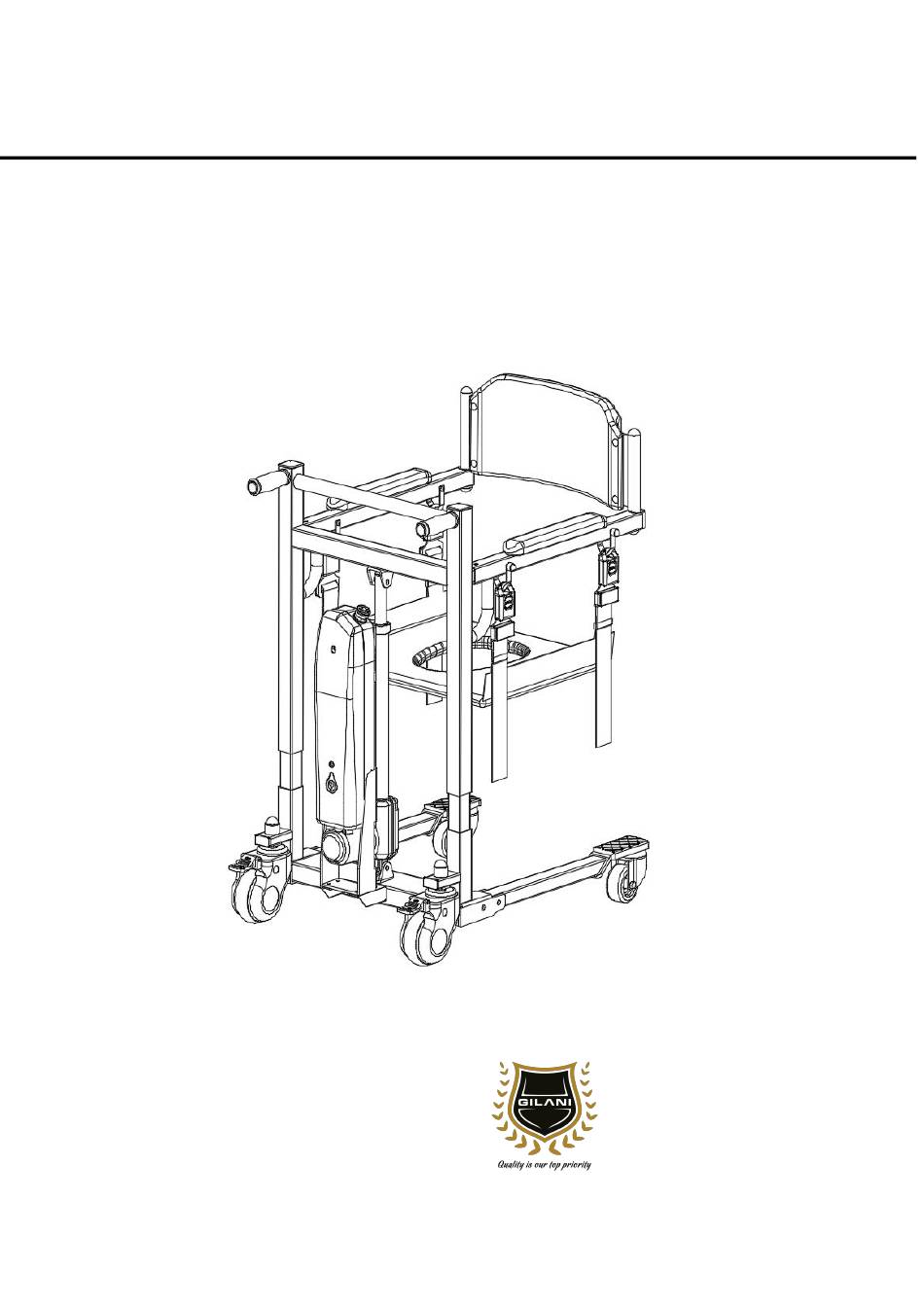

- Page 1 Transfer chair User manual Model: GE-HY803 Gilani Engineering Pty Ltd...
- Page 2 Contents I. Parts introduction....................1 II. Technical specification..................1 III. Installation instructions..................2 IV. User guide.......................4 V. Troubleshooting....................6 VI. Warranty......................6...
- Page 3 I. Parts introduction 1、Backrest；2、Right armrest；3、Left armrest；4、Ring；5、Cushion； 6、3" front wheel；7、Support leg；8、Right rear wheel support；9、4’’Rear wheel；10、Pedal；11、Battery；12、Connecting rod；13、Castor mat; 14、Left rear wheel support；15、Screw；16、Sleeve；17、Lifting frame 18、Controller box/ Motor；19、Handle；20/21；Bedpen/ Bedpen support； 22， Support；23、Long hinge；24、Short hinge；25、Controller II. Technical specification Rated power: 100~240Vac Overall size: 900x676x870mm 50/60Hz 72VA Net weight: 45 Kg Voltage: DC 24V±1 Lifting range: 0~250mm...
- Page 4 III. Installation instructions 1. Parts - 2 -...
- Page 5 2. Installation steps Step 1：install arm-brace ②unfold the arm-brace ①Take out the body ③Untie the strap, unfold the support leg ⑤Install bolts on both sides ④Insert the long bolt into ⑥Fold the arm-brace the hole of the same operation Step 2：Install armrest ①Distinguish the left and right ②...
- Page 6 IV. User guide 1. How to use the controller panel Press the up and down button to control the machine, release the button to stop the movement. Down Power 2. Emergency stop The emergency stop button is used to interrupt and turn on the power. so that the motor will stop working immediately in the case of danger.Stop working immediately in case of danger.
- Page 7 5. Operation of the transfer chair. . Sit on the cushion ②．Push into , fasten the 4 rings Shower ③. Install backrest, adjust the height Toilet Tread right: close Tread left: open 6. Storage of transfer chair Folding steps: - 5 -...
- Page 8 7. Battery charge. When the battery power is only 1 grid, it needs to be charged immediately. If not, the motor will stop working. Notes： 1.Please close the emergency button and turn off the machine when charging. 2.It is generally charged once every month when the machine is not used for a long time.
