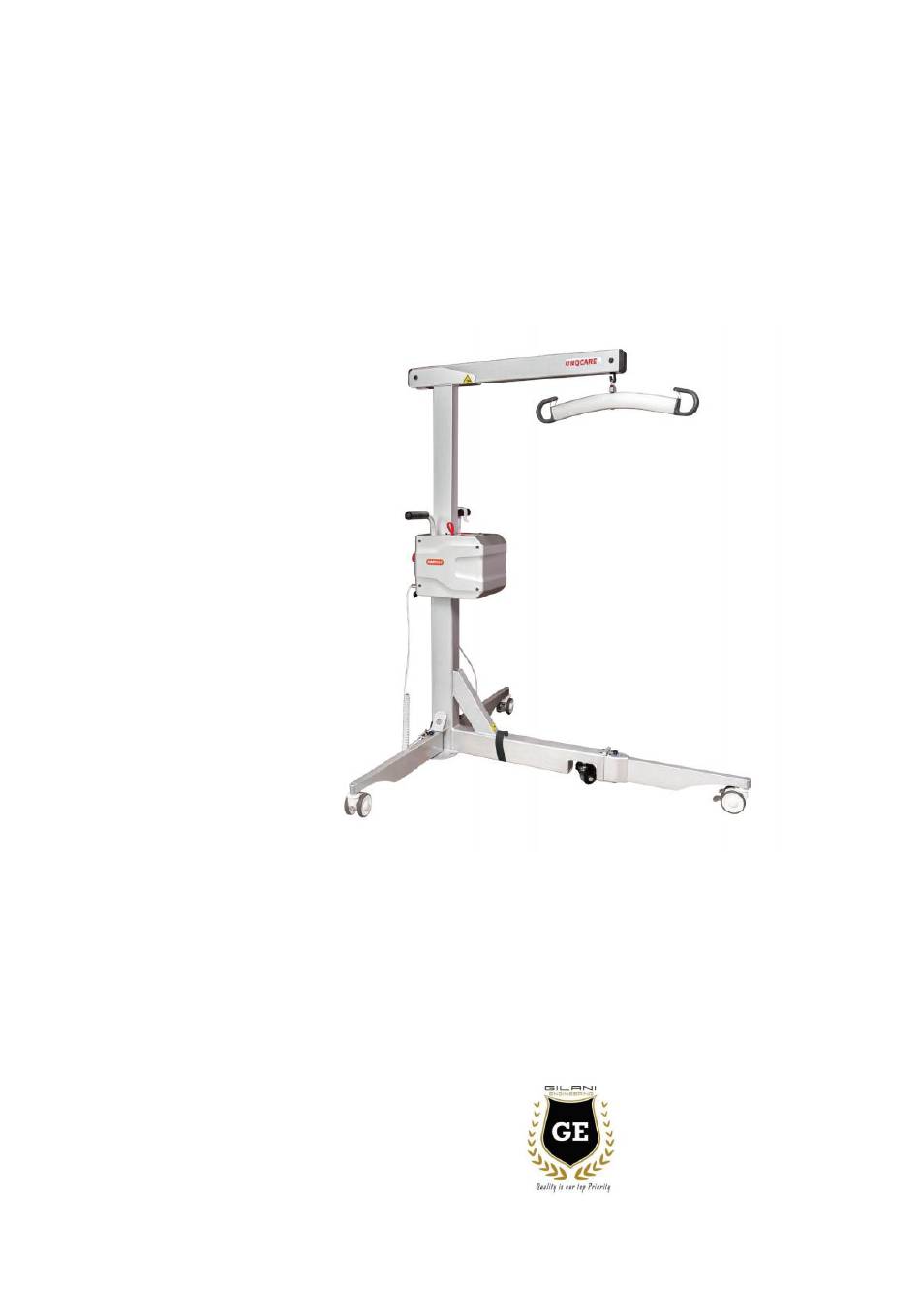

- Page 1 USER MANUAL MODEL: GE-HY302 LIFT MACHINE Vehicle Congratulations ! Proper use of this product to ensure safety, convenience and durability. Please read this instruction carefully before using, and be sure to master the matters marked ★. Gilani Engineering Pty Ltd...
-
Page 2: Table Of Contents
Catalogue 1. Product Drawing..................1 2.Specification....................1 3.Installation....................2 4.Operation....................5 5.Battery Charging..................7 6.Maintenance....................7 7.Trouble shooting..................8 8.Warranty..................... 8... -
Page 3: Product Drawing
1. Product Drawing 1. Lift arm 2. Internal tube 3. Handle 4. Motor box 5. External tube 6. Front support tube 7.Side support tube 8. Suspender 9. Controller 10.Scram stop button 2.Specification Overall size :1235 mm×1180 mm×1450 mm( length × width × height) Fold size :850 mm×252 mm×940 mm( length ×... -
Page 4: Installation
3.Installation 3.1 Open-box inspect Please check if accessories are lost (Please refer to the following list), if any damage or lost, please contact the distributor in time. Description Item Quantity Frame+ controller 1 set Suspender assembly 1 pc Suspension 1 pc Charger 1 set Manual book... - Page 5 3.4 Controller and Operation Panel You can use the cable controller or control panel on motor box to control the machine. ① Lighting : Power On. ②Battery light: Orange lighting : Battery needs to be charged . ③④ up / down button: Push to rise or fall, release to stop moving.
- Page 6 3.6 Emergency stop Button Function Emergency stop button to interrupt the power supply, In case of sudden danger, stop the lifting machine immediately. Emergency stop: press the Red button (Showing as A in the picture ) Normal working state: Rotate red button clockwise,(Showing as B in the picture ),control machine can work normally.
-
Page 7: Operation
3.9 Release or brake the rear wheel The rear wheel can be locked to prevent rotation and lateral movement. Warning: Locking the wheel during lifting increases the risk of dumping of lifting equipment. 3.10 Use sling: Select the appropriate gear according to the patient's reminder 3.11 Manual landing : (Only used for emergency) In case the electric control failure , use the wrench to landing . - Page 8 Operation steps: Step 1: Nurses wrap the patient, choose the right gear to hang the sling on the hanger. (Note: Hanging sling should be as low as possible in the lower gear, lifting boom in the patient's chest is the best moving position); Step 2: Nurse remove machine to the patient front position and lock both sides wheel, hang the boom on the machine hook (the machine needs to be set to the...
-
Page 9: Battery Charging
5.Battery Charging The battery should be charged while : (1) Press battery power indicator lights yellow . The light on controller BATT shows orange light. Controller sounds "beep， beep..." alarming while using . Charger specification model: HP0060W (L2); Charger input: AC 100-240V ，50-60 Hz ，1.2-0.5 A Charger output: DC 24 V /2A (1.5A) Charger light has 2 states: Red: In charging... -
Page 10: Trouble Shooting
7.Trouble shooting 1.Check whether the device be turn on normally 2.Check the control handle is correctly connected Couldn’t lift or land 3.Check battery power 4. Check whether battery is well connected 1. Check whether charger is well connected Charging failure 2.
