USER MANUAL

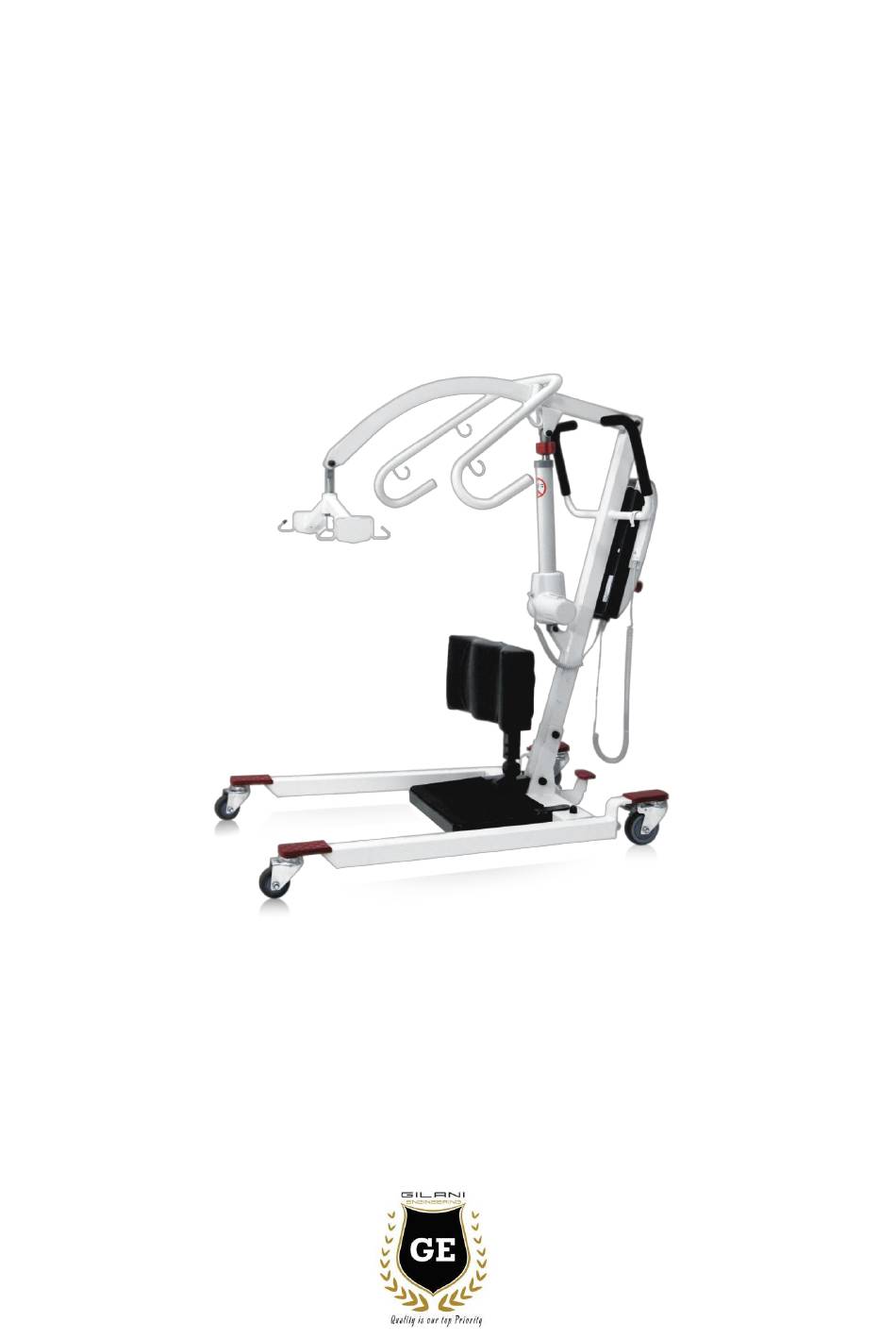

MODLE: GE-HY202 LIFT MACHINE
Accessiblehoist
Proper use of this product is the prerequisite to ensure safety, convenience and
durability
Please read this instruction carefully before using, and be sure to master the matters
marked with the mark ★
Gilani Engineering Pty Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accessiblehoist and is the answer not in the manual?

Questions and answers

Summary of Contents for GILANI ENGINEERING Accessiblehoist

  • Page 1 MODLE: GE-HY202 LIFT MACHINE Accessiblehoist Proper use of this product is the prerequisite to ensure safety, convenience and durability Please read this instruction carefully before using, and be sure to master the matters marked with the mark ★ Gilani Engineering Pty Ltd...
  • Page 2: Table Of Contents

    Catalogue Ⅰ. Safety Instruction........................... 1 Ⅱ. Product Drawing...........................1 Ⅲ. Specification..........................2 Ⅳ. Installation...........................2 Ⅴ. User Guide............................5 Ⅵ. Battery Charging......................... 7 Ⅶ. Maintenance..........................8 Ⅷ. Trouble Shooting........................8 Ⅸ. Warranty............................9 X. Maintenance Record........................10 △ NOTES: This manual contains important information about the product. Please read carefully and fully understand it before using.
  • Page 3: Ⅰ. Safety Instruction

    Ⅰ. Safety Instruction 1. Please ensure the following items before the first using: The shifter is installed according to the instruction; ● Make sure the battery is fully charged or charged for at least 6 hours; ● 2. Need to check the items before using: All accessories are not damaged;...
  • Page 4: Ⅲ. Specification

    Ⅲ. Specification Overall size 1200x1320x665 Button unfold size 885mm Motor 24V/8000N Lifting speed 8.3mm/s Protection class IP54 Net weight 57kg Max load 200kg Lifting times per charge 60-80times Cross height 10mm Lifting range of boom 870-1750mm Lifting range of waist brace 1020-1650mm Knee pad adjustment range 555-680mm...
  • Page 5 1. Installation steps Step 1: Raise the body frame,Screw the M10x75 outer hexagon bolt as drawings. ① Bolt M10x75 ② Gasket ③ Nylon lock nut M10 ④ Nut Step 2: Connect the rear lift tube with the body frame shown in the drawing, tighten by M10x50 Hexagon bolt and nuts .
  • Page 6 Step 5: Insert the front lift head into the rear lift tube ,pull the bigger index plunger, the front/rear lift tube ends coincide, loosen to reset the indexing pin. Step 6: Pedal knee pad installation ,using a 2.5mm hexagon wrench, unscrew the M3 screw and hand twist plum screw, then install the kneecap pad into the square pipe on the pedal, and then unscrew the M3 screw and hand twist plum screw.
  • Page 7: Ⅴ. User Guide

    Ⅴ. User Guide 1. Control handle operation Up/down key to control the boom up and down, release to stop motion 2.Base width adjustment Adjustment by foot pedal. Step on the left to widen, step on the right to narrow 3.Emergency stop button to cut the power supply, stop the lifting machine immediately in case of sudden danger.
  • Page 8 6.Manual emergency low down For emergency manual low down, turn the red sleeve in the direction of the arrow shown. 7.Rear wheel release and brake Release The rear wheel can be locked to prevent rotation and lateral movement. Brake Brake Warning: Locking the wheel during lifting movement increases the risk of tipping over the lifting equipment.
  • Page 9: Ⅵ. Battery Charging

    When in use, the waist tube, pedal knee pad assembly with standing shift function and the front lifting pipe hanger assembly with conventional shift function cannot be installed on the shift machine simultaneously. When using the standing shift function, remove the front lifter hanger assembly from the shift machine.
  • Page 10: Ⅶ. Maintenance

    Ⅶ. Maintenance For safe operation, please check and test before use. 1. Check that the screws and fixing nuts on the boom are tight; 2. Check control handle, lift and width adjustment movement; 3. Check the emergency drop function(electric and manual); 4.
  • Page 11: Ⅸ. Warranty

    Ⅸ. Warranty Date from you get the lifting machine 1. The control box shall be replaced within six months and guaranteed within one year. 2. The battery shall be replaced if its capacity is less than 60% of the rated capacity within half a year.
  • Page 12: Maintenance Record

    X. Maintenance Record Maintenance record Date Problems Causes Note...
