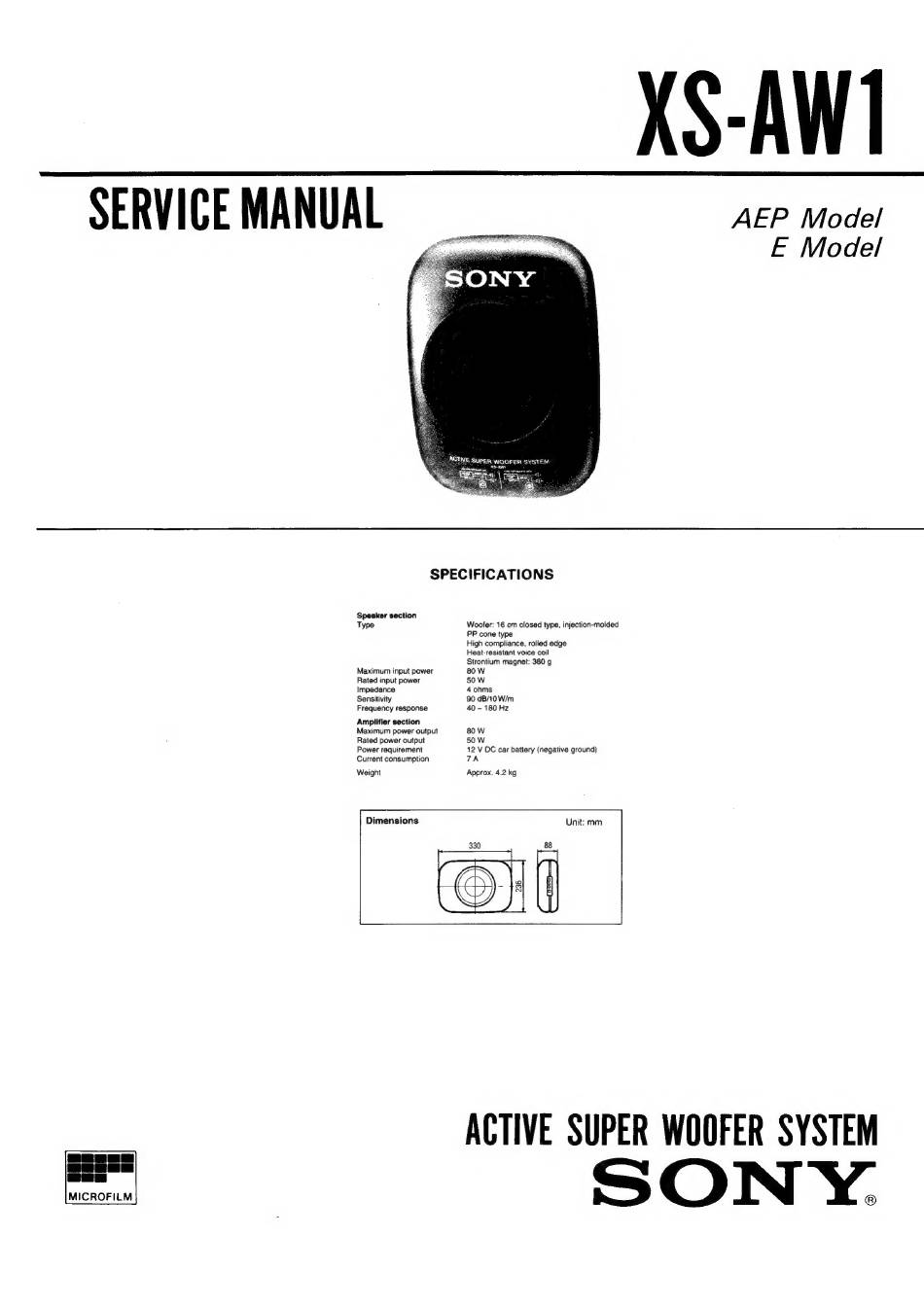

SERVICE MANUAL
MICROFILM
XS-AW1
AEP Model
E Model

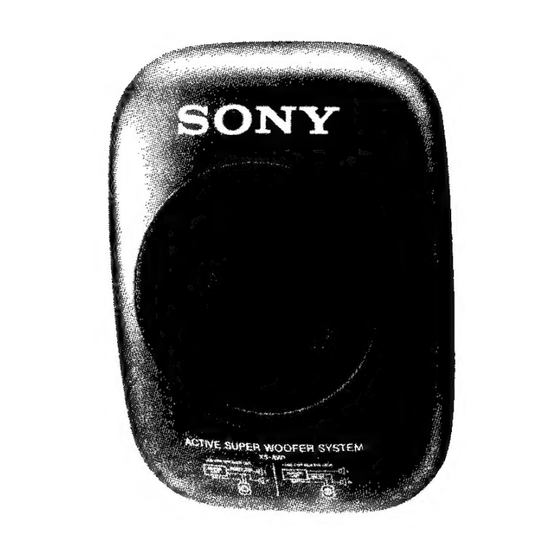

ACTIVE SUPER WOOFER SYSTEM
"
SPECIFICATIONS
Speaker section
Type
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Amplifier section
Maximum
power output
Rated power output
Power requirement
Current consumption
Weight
Woofer: 16 cm closed type, injection-molded
PP cone type
High compliance, rolled edge
Heat-resistant voice coil
Strontium magnet: 380 g
80W
50W
4 ohms
90 dB/10 W/m
40 - 180 Hz
80 W
50 W
12 V OC car battery (negative ground)
7A
Approx. 4.2 kg
Dimensions
Unit: mm
ACTIVE SUPER WOOFER SYSTEM
SONY.
