Summary of Contents for TEFAL FV4093Z0

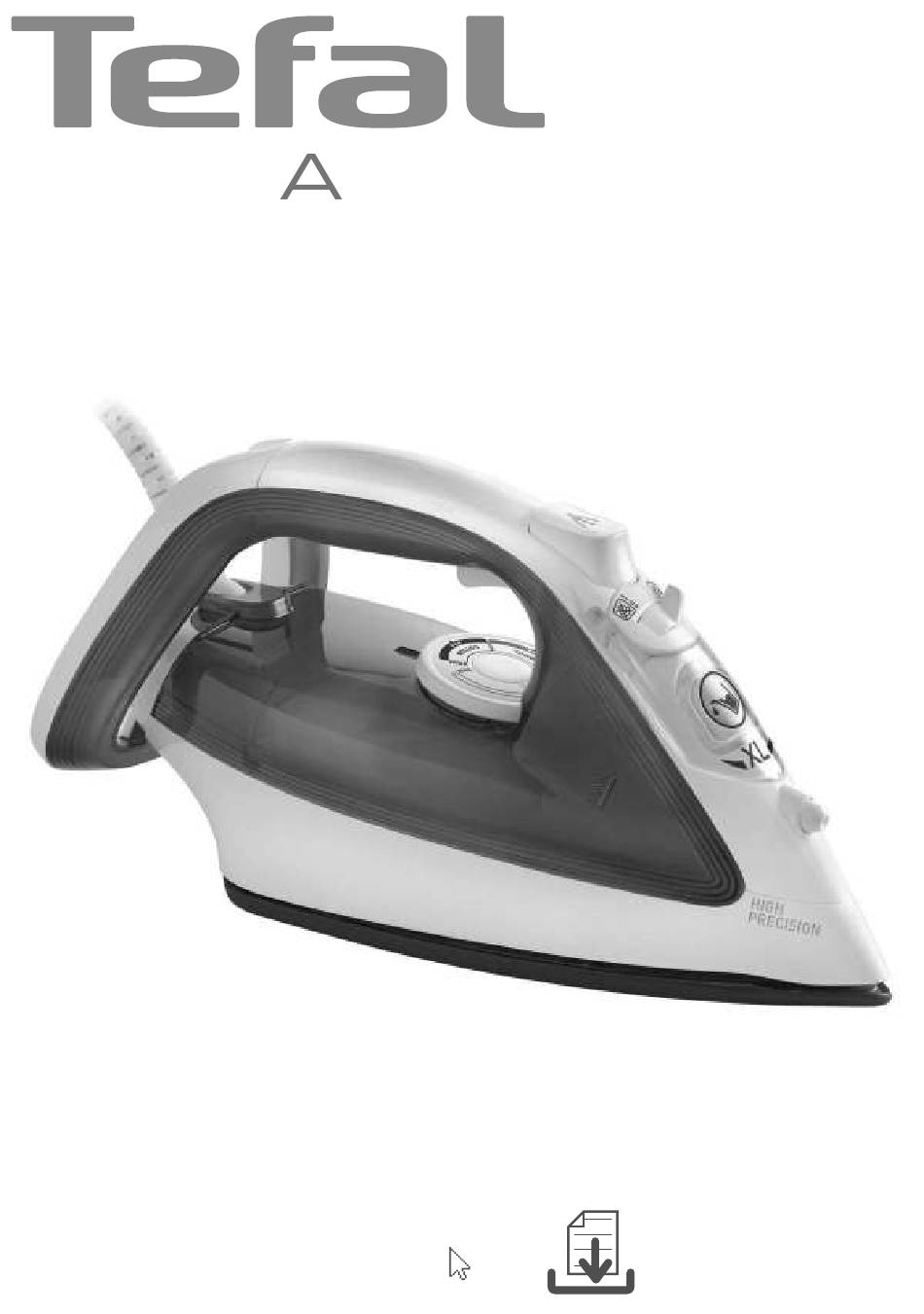

- Page 1 E SYGLISS www.tefal.com...
-
Page 3: Table Of Contents
SUMMARY IMPORTANT SAFETY RECOMMENDATIONS Important safety recommendations ............p. 6 Before first use....................p. 10 PREPARATION Which water should I use?................p. 11 Filling the water tank ..................p. 11 Adjusting the temperature and steam..........p. 12 Dry ironing ......................p. 13 Getting more steam.................. - Page 4 N According to model...
-
Page 6: Important Safety Recommendations
IMPORTANT SAFETY RECOMMENDATIONS ase read these instructions carefully before • Ple first use. This product has been designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. - Page 7 • This appliance may be used by children aged 8 or over and persons lacking appropriate knowledge or experience or persons with reduced or impaired physical, sensory or mental capabilities provided that they have been thoroughly instructed regarding the use of the appliance, are supervised, and understand the risks involved.
- Page 8 or if it functions abnormally in any way. Do not attempt to dismantle your appliance: have it examined at an Approved Service Centre to avoid any danger. • Do not allow the power cord to rest close to or come into contact with sources of heat or sharp edges.
- Page 9 steam towards people or animals. • Never immerse your steam iron in water or any other liquid. Never place it under a running tap. • The plug must be removed from the power socket outlet before the water reservoir is filled with water. PLEASE RETAIN THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE Environment protection first !
-
Page 10: Before First Use
BEFORE FIRST USE Remove any labels from the soleplate before heating the iron. Before using the steam function in your iron for the first time, we recommend that you allow the iron to operate a few moments in a horizontal position without coming into contact with your laundry. -
Page 11: Preparation
PREPARATION Which water should I use? • Your appliance was designed to operate using untreated tap water. However, it is necessary to periodically clean the steam chamber to remove any mineral deposits. • Do not use pure demineralised or pure distilled water, water from clothes dryers, scented or softened water, rain water, filtered, bottled or boiled water, water from refrigerators, batteries or air conditioners, pure distilled water or rain water as these may... -
Page 12: Use
• Plug in the appliance. Adjusting the temperature and steam • Set the steam control to • Adjust the temperature control, referring to the table below. TEMPERATURE CONTROL FABRIC POSITION LINEN COTTON ••• •• WOOL SILK/SYNTHETIC • (Polyester, Acetate, Acrylic, Polyamide)) = STEAM ZONE •... -
Page 13: Dry Ironing
Your iron heats quickly: begin with fabrics that require lower temperatures. When ironing fabrics with most delicate fibres: set the ironing temperature for the most fragile fibre. The iron will not heat up if the thermostat control is set to "MIN". -
Page 14: Vertical Steam Ironing
Vertical steam ironing • Hang the item on a hanger and keep the fabric taut with one hand. The steam is very hot; never steam iron clothing while it is being worn - always use a hanger. m x. • Set the thermostat control to “MAX” sec. -
Page 15: Dampening Clothing (Spray)
Dampening clothing (Spray) • When dry or steam ironing, press repeatedly on the spray button to moisten clothing and remove stubborn creases. • Ensure that there is water in the tank before using the spray button. While ironing • Do not lay the iron down on the soleplate; use the heel rest for this purpose. -
Page 16: Iron Storage And Maintanance
IRON STORAGE AND MAINTANANCE Storing your iron • Unplug the iron and wait for the soleplate to cool (approx. 45 min.). min. • Empty the water tank. • Set the steam control to • Wrap the cord around the bottom of the iron's body. Store the iron on its heel rest. -
Page 17: Cleaning The Anti-Limescale Collector (Once Per Month)
Cleaning the anti-limescale collector (once per month) • Unplug your iron and empty the water tank. • To remove the anti-limescale collector, open the water tank cover and pull on the collector near the steam control. • Soak the collector for 4 hours in a glass of water with lemon juice. •... -
Page 18: Descaling The Steam Chamber (Once Per Month)
Descaling the steam chamber (once per month) • Allow your iron to heat up with a full water tank while on its heel Max. rest and with the temperature control set to maximum. • Once the indicator light switches off, unplug the iron and place it over a sink. -
Page 19: Cleaning The Soleplate
• Unplug your iron and, once cooled, wipe it with a soft cloth. • Never use chemical or abrasive products. During the next use, turn on your iron in a horizontal position without putting it into contact with your laundry in order to eliminate any water containing mineral residues that remain in the soleplate. -
Page 20: Is There A Problem With Your Iron
IS THERE A PROBLEM WITH YOUR IRON? PROBLEMS POSSIBLE CAUSES SOLUTIONS Water is leaking You are using the steam when Wait for the indicator light to turn from the holes in the iron is not hot enough. off. the soleplate. You are using the turbo steam Wait a few seconds between each button (turbo steam) too often. - Page 21 The water tank is not full Add water to the water tank. not spray water. enough. If you have any problems or queries please call our Customer Relations team first for expert help and advice: consult our website for contact details: www.tefal.co.uk...
