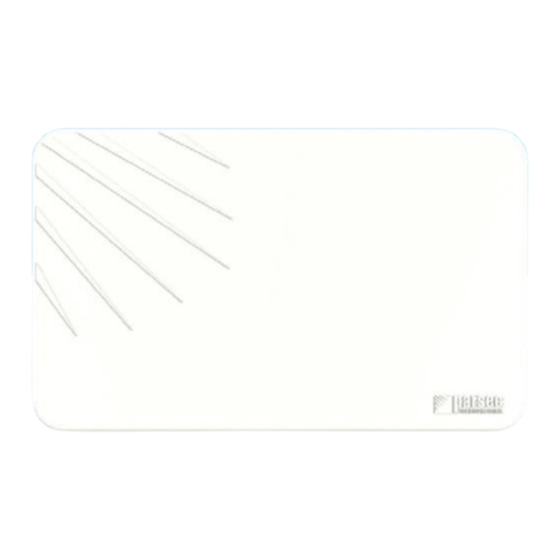

AKITA LITE
Installation Instructions
Required Tools & Accessories
Flathead Screwdriver
Phillips Screwdriver
Loctite or 3M Red 271 Thread locker
Mounting Options
Antenna Mounting Location Directions
When selecting the location of an antenna, consider the following factors:
1.
Antenna Directionality – the direction of the signal is limited
by the directionality of the antenna.
Omni-directional antennas provide a 360-degree horizontal
radiation pattern, allowing for coverage in all directions
horizontally with varying degrees of vertical coverage.
When selecting the location of an omni-directional antenna,
ensure that the antenna can be mounted in the proper
orientation relative to the horizontal plane.
2. Signal Path Loss – signal strength is greatly affected by the
materials that the signal passes through. Severe signal loss
can be caused by concrete and brick walls. Metals can absorb and/or reflect the signal, affecting
the signal path. For best antenna performance, select an antenna location with minimal
obstructions between the antenna and the signal source(s).
3. Reflection & Diffraction – the signal will bounce off certain materials and bend around obstacles.
For best antenna performance, the antenna should be installed in a location where the signal path
is not interfered with by materials like Low E glass, Metal,
Tinted glass, etc., that reflect RF Energy.
4. Interference – electrical devices and appliances interfere with
the antenna's signal.
Electrical devices and appliances, such as refrigerators,
microwaves, AC units, and cameras, can cause
electromagnetic interference with the antenna signal.
Select a location that is as far as possible from electrical
devices and appliances and minimizes the amount of such
devices between the antenna and the signal source(s). For
best antenna performance, install antennas as far away as
possible from each other and other devices. In general,
separate antennas by at least 24 inches (61 cm).
Akita Lite Installation Instructions
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Parsec Antennas AKITA LITE
Summary of Contents for Parsec Antennas AKITA LITE
- Page 1 For best antenna performance, install antennas as far away as possible from each other and other devices. In general, separate antennas by at least 24 inches (61 cm). Akita Lite Installation Instructions Page 1 of 8...
- Page 2 Lightning Arrestor – SMA(F) to SMA(F) PTA0476 Lightning Arrestor – N(F) to N(M) PTA0736 SMA Wrench, Key Chain PTA0194 Service: Cable Sleeving (Priced Per Ft) Cable Sleeving *Lightning Arrestors are recommended for outdoor installations Akita Lite Installation Instructions Page 2 of 8...
- Page 3 (minimum 24 inches), including lights, AC units, routers, and other antennas. B. A clear line of sight to the nearest cell tower is recommended for best performance. C. For multiple Akita Lite antennas, antennas must be separated at least 12 inches vertically or 24 inches horizontally.
- Page 4 A. To avoid de-tuning or interference issues, install the antenna as far away as possible from other devices (minimum 24 inches), including lights, AC units, routers, and other antennas. B. For multiple Akita Lite antennas, antennas must be separated at least 12 inches vertically or 24 inches horizontally.
- Page 5 A. To avoid de-tuning or interference issues, install the antenna as far away as possible from other devices (minimum 24 inches), including lights, AC units, routers, and other antennas. B. For multiple Akita Lite antennas, antennas must be separated at least 12 inches vertically or 24 inches horizontally.
- Page 6 A. To avoid de-tuning or interference issues, install the antenna as far away as possible from other devices (minimum 24 inches), including lights, AC units, routers, and other antennas. B. For multiple Akita Lite antennas, antennas must be separated at least 12 inches vertically or 24 inches horizontally.
- Page 7 CELL 1 MAIN0 CELL 2 AUX0 / DIV CELL 3 MAIN1 CELL 4 AUX1 For best MIMO performance, use the following in pairs: CELL 1 & CELL 2 CELL 3 & CELL 4 Akita Lite Installation Instructions Page 7 of 8...
- Page 8 This document is for general information only. It cannot be used as a warranty. Parsec Technologies Inc. will not accept any liability for any damage caused by an antenna due to unknown variables. Parsec Technologies 972-804-4600 support@parsec-t.com Last Revised: 08.07.2023 Akita Lite Installation Instructions Page 8 of 8...
