Summary of Contents for Hornady 050118

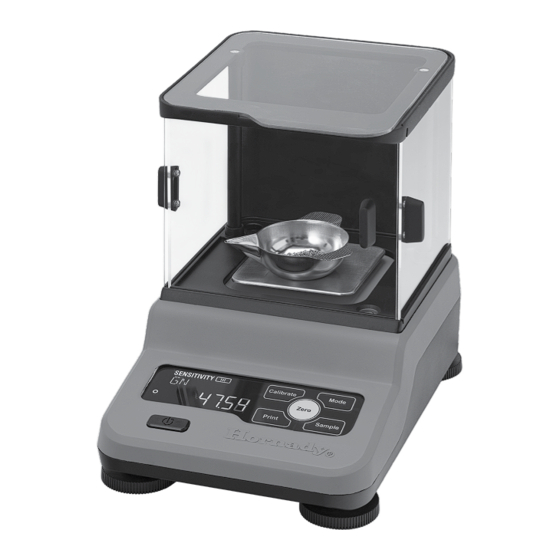

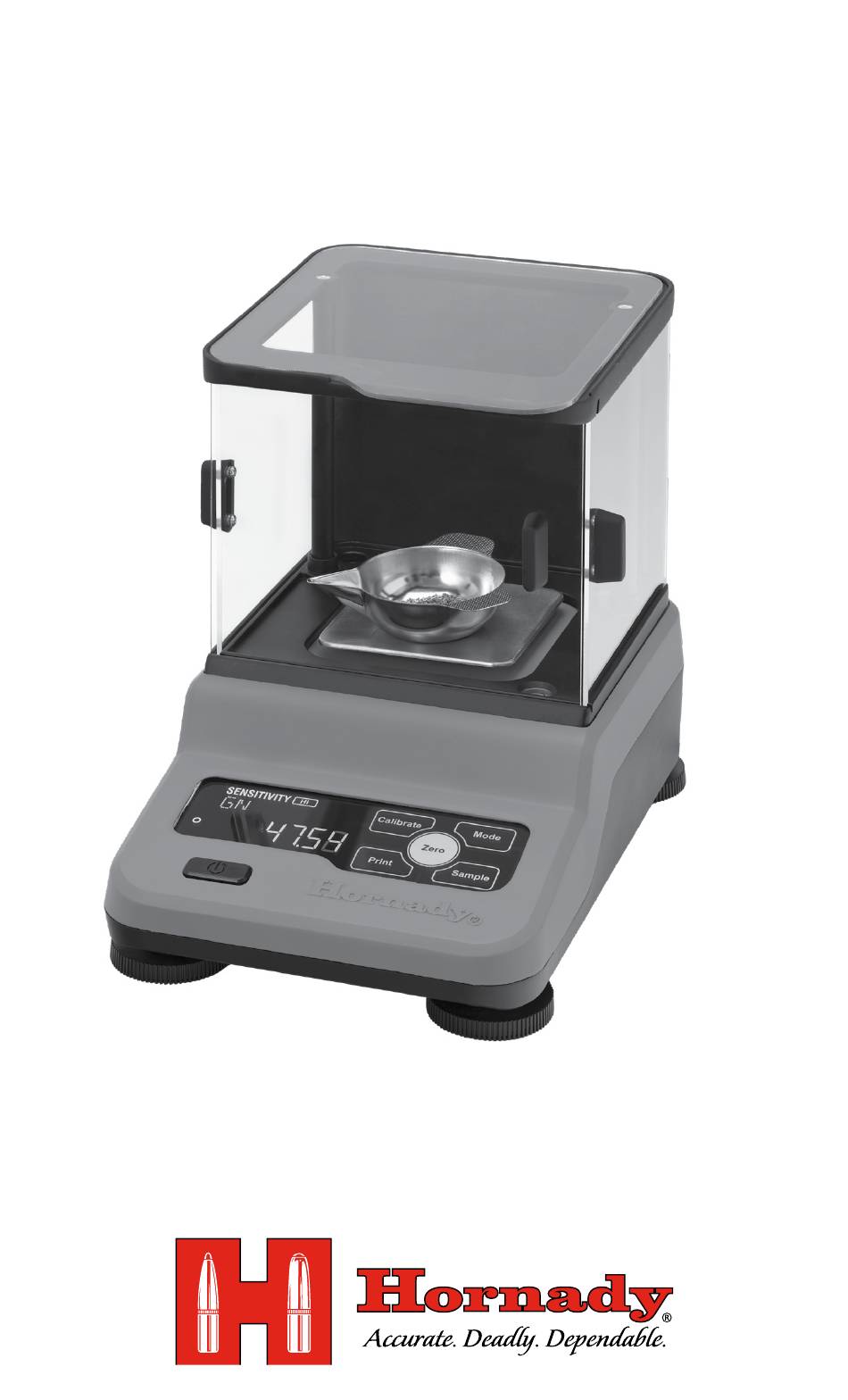

- Page 1 INSTRUCTIONS PRECISION LAB SCALE Item No. 050118...
-
Page 2: Power Supply
• Internal components are very sensitive. Do not shake, drop, or overload unit. • Handle unit with care, treating it as the sensitive instrument it is. • If spilled powder gets inside unit, do not operate. Call Hornady Customer Service at 1-800-338-3220. -
Page 3: Parts List
PARTS LIST WINDSCREEN TOP WINDOW WINDSCREEN SIDE WINDOW WINDSCREEN HOUSING CALIBRATION WEIGHT WINDSCREEN SCALE TRAY FRONT WINDOW POWDER CALIBRATION WEIGHT BUBBLE LEVEL LEVELING FEET LCD TOUCH SCREEN 9V POWER SUPPLY -US PLUG ADAPTER -EURO PLUG ADAPTER... -
Page 4: Keypad Button Functions
KEYPAD BUTTON FUNCTIONS ON/ OFF (mechanical button): Tap to turn on. Hold for three seconds to turn off. CALIBRATE: Hold for three seconds to calibrate. MODE: Tap to toggle units (G, GN, OZ). Hold for three seconds to enter “Mode Menu.” See “Mode Menu”... -
Page 5: Mode Menu
MODE MENU Holding the MODE button for three seconds will enter the mode menu. The MODE menu has the following options: • SETTINGS: the settings menu allows you to set the scale speed and change the units being used. (See Settings section) •... - Page 6 COMPARE (select with ZERO button) › Use “Sample” button to toggle through options forward › Use “Print” button to toggle through options backwards. (options: ON,OFF) › Use “Zero” button to select option and enter the options menu. › Use “Calibrate” to return to Main Menu ›...
- Page 7 • TOL LOW (select with ZERO button) › This number is the number of units away from your nominal weight you are allowing. » Example: 10g +/- .4g | Tol LOW: .4g » Use “Sample” button to toggle through place holders left to right »...
- Page 8 PIECE (select with ZERO button) › Use “Sample” button to toggle through options forward. › Use “Print” button to toggle through options backwards. (options: ON,OFF) › Use “Zero” button to select option and enter the options menu. › Use “Calibrate” to return to Main Menu ›...
-
Page 9: Outputting Data
Exit menu and return to standard weighing screen OUTPUTTING DATA The Hornady Precision Lab Scale has the ability to output the weighing data into the spreadsheet program of choice. To do this: • Plug the included RS232 cable into the back of the scale ›... -
Page 10: Warranty
® and workmanship. Hornady electronic components are covered by a one-year warranty from the date of purchase. This warranty is void if the product (1) has been damaged by accident or unreasonable use, neglect, improper service or other causes not arising out of defects in material or workmanship;... - Page 11 PRODUCT SERIAL NUMBER AND REFERENCE INFORMATION You must register your product in order to obtain warranty service. In the event you should need service for your product, please note the following information: Serial Number ___________________________________________________________ Date Purchased __________________________________________________________ Retailer ________________________________________________________________ FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 12 Hornady Manufacturing Company P.O. Box 1848, Grand Island, NE 68802-1848 hornady.com/contact 22HMC0040 | 03/2023 586029...
