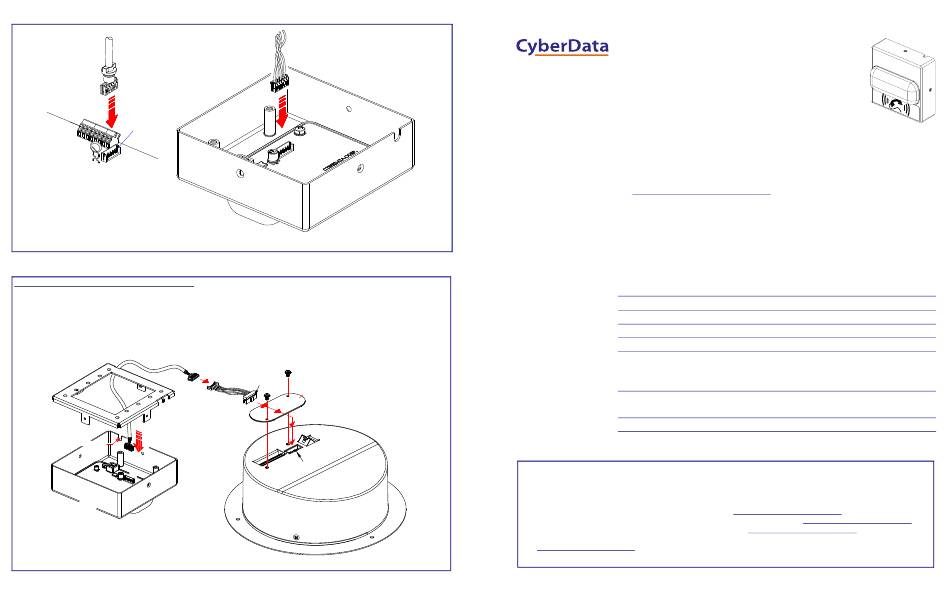

CyberData 011288 Installation Quick Reference

Intercom Connections

JX
Intercom Board
Speaker Connections

Auxiliary Strobe Cable to SIP Speaker Installation:

1. Connect the one meter strobe cable to the adapter cable.
2. Remove the mounting screws and port cover from the SIP Speaker.
3. Align the key bump on the adapter cable to the key bump slot on the SIP Speaker.
4. Replace the port cover and mounting screw.
Strobe Cable
Backplate
to
J1
Cable Exit
J1
RGB Strobe Assembly
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
J1
Auxiliary RGB (Multi-Color) Strobe Kit
Remove Port Cover
to Install the Adapter Cable
Mounting Screw
Adapter
Cable
Key Bump
Port Cover
Key Bump
Slot
SIP Speaker Assembly
930831D
The IP Endpoint Company

Parts List

Getting Started

Features

Specifications

Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
https://www.cyberdata.net/
Quick Reference Quick Reference
Installation Quick Reference
Auxiliary RGB (Multi-Color)
Strobe Kit
011288
• (1) Auxiliary RGB Strobe Kit
• (1) 3.28 feet [1 meter] cable
• Download the Operations Guide PDF file, from the Downloads tab at:
http://www.cyberdata.net/voip/011288/
• Meets ADA requirements for telephony signaling and notification
• Activates from a CyberData IP endpoint
• Mailbox Message Waiting Indication
• Multicast activation
Specifications
Power Input Supplied by the supported CyberData VoIP endpoint
Flash rate 4 scenes available
Operating Temperature -10° C to 50° C (14° F to 122° F)
Dimensions 4.5 inches [115 mm] Length
2.1 inches [55 mm] Width
4.5 inches [115 mm] Height
Weight 1.0 lbs. (0.45 kg)
Boxed Weight 2.0 lbs. (0.90 kg)
Part Number 011288
Sales: 831-373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: https://support.cyberdata.net/
RMA Department Contact and Status:
Warranty Information: https://support.cyberdata.net/
930831D © 2023, CyberData Corporation, ALL RIGHTS RESERVED
https://support.cyberdata.net/
