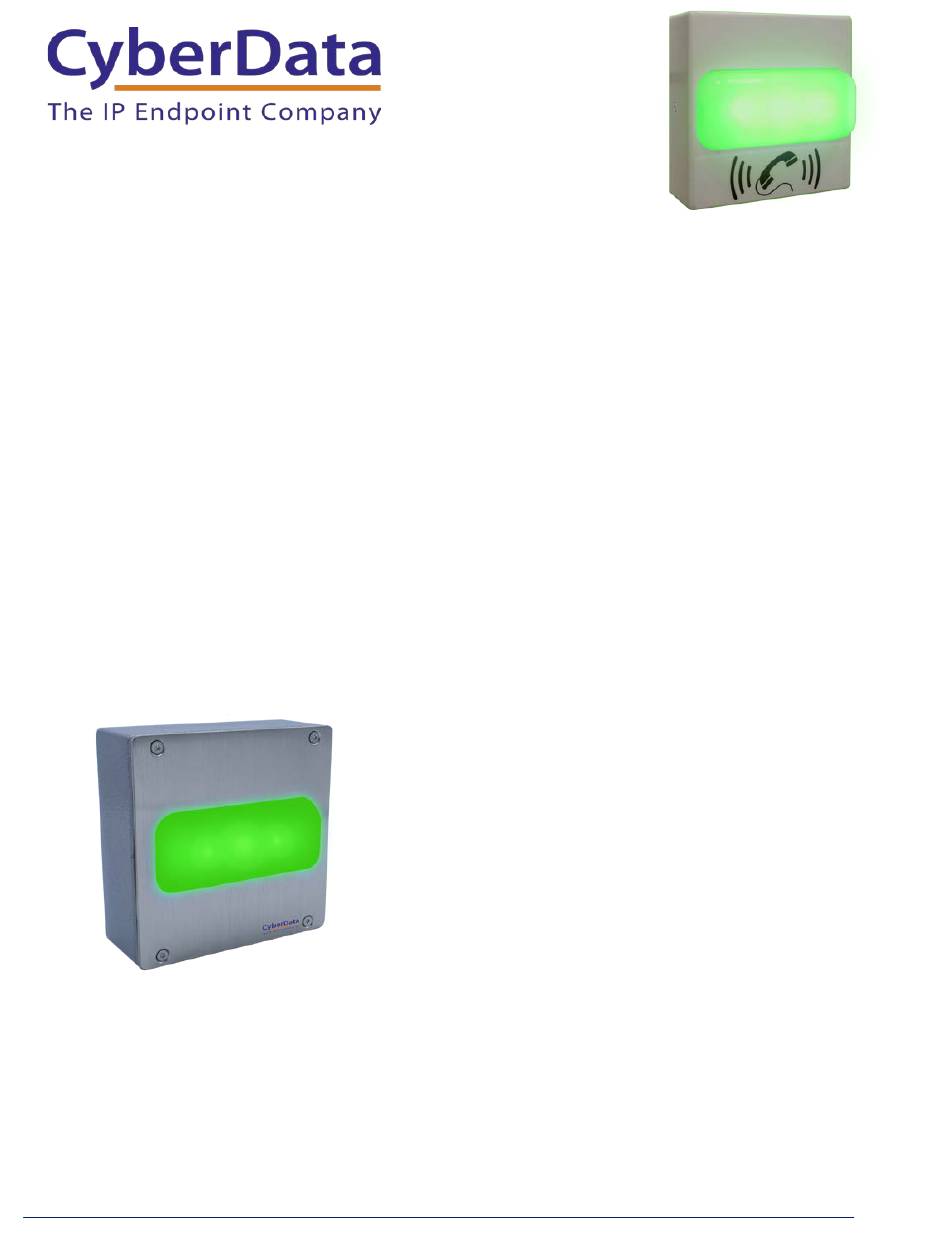

  • Page 1 Using the CyberData InformaCast Enabled RGB Strobe Document Part #931702B CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 Software or firmware developed by CyberData that is unrelated to Open Source Software is copyrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied, modified, reverse-engineered, or otherwise altered without explicit written permission from CyberData Corporation.
  • Page 3 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 2 Revision Information Revision 931702A was released on August 28 , 2019. -Initial Release Revision 931702B was released on September 3 , 2019. -CyberData InformaCast Enabled Outdoor (Multi-Color) Strobe added.

  • Page 4: Table Of Contents

    3.0 Before You Start ........................6 4.0 Configuration Procedure: Setting up the Strobe ............... 7 5.0 Configuration Procedure: Setting up the Strobe in InformaCast ..........11 6.0 Configuration Procedure: Creating A Message ..............20 7.0 Contact CyberData Corporation ..................... 23...

  • Page 5: Setup Diagram

    USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 4 1.0 Setup Diagram CyberData Corporation 3 Justin Court, Monterey, CA 93940 www.cyberdata.net P 831.373.2601 | F 831.373.4193...

  • Page 6: Test Setup Equipment

    USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 5 2.0 Test Setup Equipment Equipment Part Number Firmware Version CyberData InformaCast Serial Number (3771xxxxx): 11.8.0 Enabled RGB (Multi- 011377 Color) Strobe Serial Number (3772xxxxx): 20.0.0 CyberData InformaCast Enabled Outdoor RGB 011489 Serial Number (4980xxxxx): 20.0.0...

  • Page 7: Before You Start

    Singlewire/InformaCast uses SLP as the primary method of discovery when adding devices to your InformaCast server. It will be important to make sure you have SLP enabled on the InformaCast Server and Multicast enabled on your switches. If you are unsure about SLP configuration Singlewire has excellent documentation on enabling those features.

  • Page 8: Configuration Procedure: Setting Up The Strobe

    4.0 Configuration Procedure: Setting up the Strobe With SLP enabled once the Strobe is connected to the network it should detect the Singlewire/InformaCast server(s) and fetch its configuration file. This is easy to verify via the Home page of the Strobe’s web interface.
  • Page 9 Network Configuration, SIP registration status and firmware version are shown on the Home tab. Note: The web interface of an InformaCast enabled strobe may look different between firmware versions. The process of using the product has not changed, just the layout of the web interface.
  • Page 10 4. Click on the Device menu button to navigate to the Device page. Figure 4. Device Page 5. The Singlewire Broadcast Strobe Settings section is where the majority of configuration will take place regarding use with InformaCast. CyberData Corporation 3 Justin Court, Monterey, CA 93940 www.cyberdata.net...
  • Page 11 Figure 5. Device Page - Singlewire Broadcast Strobe Settings The strobe can blink a different “Scene” for each of the ten priorities sent from InformaCast. The scenes are; ADA, Fast Blink, Slow Blink, Fast Fade, and Slow Fade. Each priority can blink a different color, which can be chosen from the drop-down menu or a custom color can be used with standard RGB values.

  • Page 12: Configuration Procedure: Setting Up The Strobe In Informacast

    5.0 Configuration Procedure: Setting up the Strobe in InformaCast For the next portion of setup, the Strobe must now be added as a Speaker in the InformaCast system. To begin this process, navigate to the web interface of the InformaCast server.
  • Page 13 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 12 3. A new tab should open prompting for Login credentials for the server. Figure 7. InformaCast Login 4. Once credentials have been entered correctly, the browser should be forwarded to the InformaCast Home tab.
  • Page 14 5. From the Home Tab select Speakers to add the strobe as a speaker. Figure 8. Home Tab 6. On the Speakers tab, you should see a line at the top stating “InformaCast has detected new IP Speakers on the network.” Press View.
  • Page 15 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 14 Figure 9. Speaker Tab 7. Clicking View will move to the Edit Unconfigured IP Speakers page where you can ADD or Test your device. Figure 10. Edit Unconfigured IP Speakers Note: This would be a good time to test the strobe to see how the strobe lights up.
  • Page 16 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 15 8. Press the ADD button to add the Strobe as a Speaker. Figure 11. Add IP Speaker 9. On this page the strobe can be named, given a description, dial code, and volume. Set the device as desired and press the Add button to complete the process.
  • Page 17 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 16 10. After adding the speaker confirm it is shown as Registered in the list of speakers. Figure 12. List of Speakers CyberData Corporation 3 Justin Court, Monterey, CA 93940 www.cyberdata.net...
  • Page 18 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 17 11. The strobe must now be added to a Recipients Group, please click Recipients. Figure 13. Recipient Groups 12. Once on the Recipients page please select a group to enter the strobe into, then press Edit.
  • Page 19 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 18 13. On the Edit Recipient Group page press Individually Edit to add the strobe. Figure 14. Edit Recipient Group CyberData Corporation 3 Justin Court, Monterey, CA 93940 www.cyberdata.net P 831.373.2601 | F 831.373.4193...
  • Page 20 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 19 14. A new popup should appear allowing the strobe to be picked from the list of speakers. Figure 15. Select Individual Recipients 15. Use the filter to narrow down the search for the strobe. Select the Strobe from the list, press Add, then finally press Submit.

  • Page 21: Configuration Procedure: Creating A Message

    USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 20 6.0 Configuration Procedure: Creating A Message 18. Navigate to the Messages tab to setup a message. Note: The strobe can be activated by: o Pre-Recorded Audio message (Regular or High Quality)
  • Page 22 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 21 21. Select Pre-Recorded Audio in the Message Type drop-down menu. Figure 17. Add Message 22. Set a description for the message, and then upload an audio file to be played.
  • Page 23 USING THE CYBERDATA INFORMACAST ENABLED RGB STROBE Doc. 931702B Page 22 23. Once finished, press Add to create the message. 24. On the Message tab, the message can be sent with the send message button. Figure 18. Send Message 25. On the Send Message page, select the desired group and press SEND.

  • Page 24: Contact Cyberdata Corporation

    Describe Problem section of the form. Your installation is extremely important to us. Documentation Feedback We realize changes to the software or hardware of the CyberData solution may render this document obsolete. We welcome and encourage documentation feedback to ensure continued applicability.
