Sealey AP5210BE Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
‰
product.
WARNING! Use storage on level and solid ground, preferably concrete.
‰
WARNING: Fill from the bottom drawer up. If the tool cabinet is filled from the top drawer down, it will be top heavy and may fall over.
‰
Locate in a suitable, well lit, clean and hazard free work area.
9
When moving the cabinet DO NOT pull it. Push the cabinet to prevent injury.
9
Close and lock the drawers before moving the cabinet. If the drawers came open they could make the cabinet unstable.
9
Apply the brakes when in desired position.
9
Be aware of sharp edges, wear gloves.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep the storage system clean and tidy in accordance with good workshop practice.
9
Keep children and unauthorised persons away from the work area.
9
DO NOT open more than one drawer at a time.
8
DO NOT attempt to lift by the side handles, use chains, ropes or other lifting devices.
8
DO NOT step or climb on the product or on the drawers.
8
DO NOT use the storage system for any purpose other than that for which it is designed.
8
DO NOT place the storage system in a damp or wet location or an area where there is condensation.
8
DO NOT clean the storage system with any solvents which may damage the surfaces or the protective coating.
8
DO NOT move the storage system when there are items placed inside.
8
DO NOT overload the storage system.
8
DO NOT mount on a truck bed or any other moving object.
8
DO NOT alter the product in any way, e.g. do not weld on external lock bars or attach electrical equipment. Alterations may cause
8
damage to the product or cause personal injury.

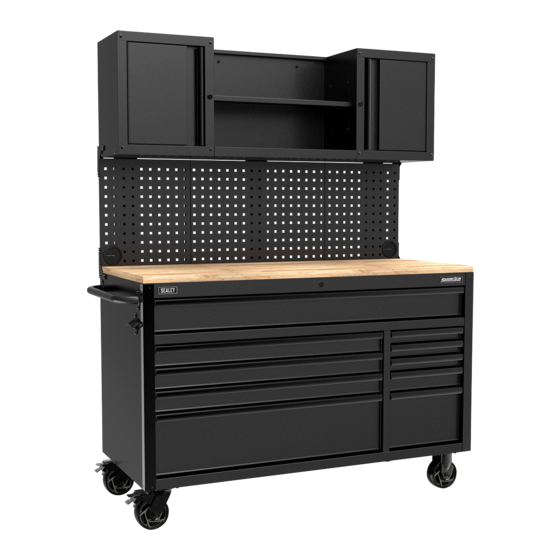

2. INTRODUCTION
Heavy-duty steel construction and manufactured with steel inner walls for extra strength and durability. Fitted with four Ø125mm PP wheels
with black chrome effect alloys, two fixed and two swivel with brakes. Rust and solvent resistant black crinkle effect finish with anodized
black drawer and cupboard handles. Supplied with 25mm thick rubber wood worktop. 10 soft close drawers on 45mm ball bearing slides, 2
cupboard and pegboard back panel. Drawers and cupboard fitted with cylinder locks and each supplied with 2 keys. Some simple assembly
required.
3. SPECIFICATION
Model No:............................................................ AP5210BE
Overall Size (W x D x H): .................... 1421 x 650 x 1860mm
Large Full length Drawer: ...................... 1307 x 552 x 120mm
Medium Drawer (x3):.................................922 x 552 x 79mm
X-Large Drawer: ......................................922 x 552 x 230mm
Small 1/2 Drawer (x2): ..............................322 x 552 x 51mm
Medium 1/2 Drawer: ..................................322 x 552 x 79mm
XL-Large 1/2 Drawer: ..............................322 x 552 x 230mm
© Jack Sealey Limited
BLACK EDITION 10 DRAWER MOBILE
WORKSTATION
AP5210BE
MODEL NO:
Original Language Version AP5210BE Issue 2 13/04/23
