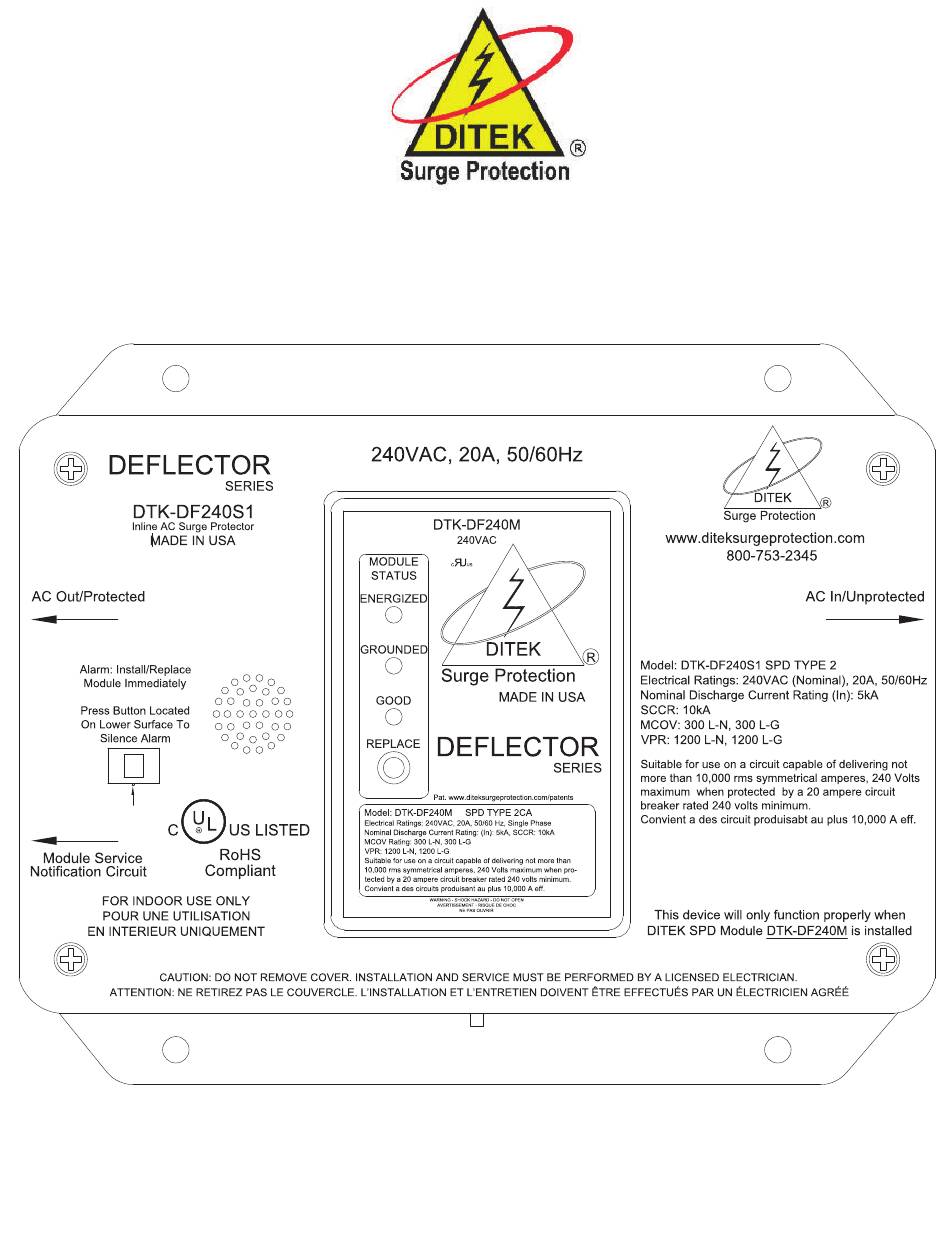

- Page 1 DTK-DF240S1 User Guide DITEK CORPORATION One DITEK Center 1720 Starkey Road Largo, Fl 33771 1-800-753-2345 www.diteksurgeprotection.com...
- Page 2 DTK-DF240M (Surge Module) The DTK-DF240S1 is a series connected Surge Protective Device with a replaceable surge module.The LED indicators on the top face of the DTK-DF240M provide power, ground and surge module health status. When the DTK-DF240M surge module has gone end of life, the large “REPLACE”...

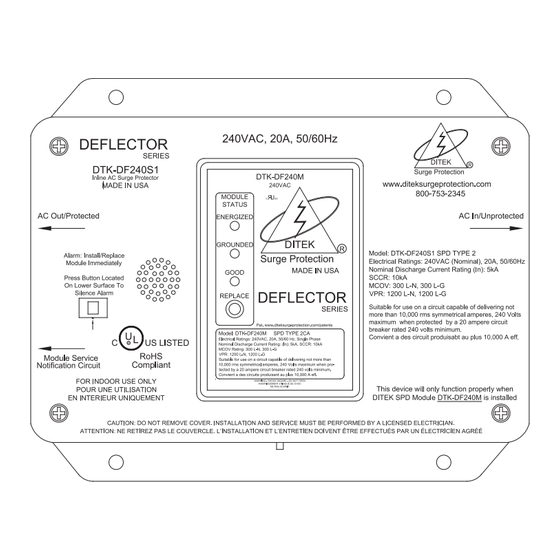

- Page 3 DTK-DF240S1 (240V 20A Series Surge Protective Device) CAUTION: Risk of Electric Shock-Only intended for installation in accordance with National Electric Code, ANSI/NFPA-70, Article 398. Warning: Turn power off at the main circuit breaker panel before beginning install. Note: Connect this device in series between the 240VAC power supply and the alarm panel, or branch panel 240VAC inputs.
- Page 4 DTK-DF240S1 (Mounting Dimensions) 191604 INT-100173-001 Rev 1 DITEK CORPORATION One DITEK Center 1720 Starkey Road Largo, Fl 33771 1-800-753-2345 www.diteksurgeprotection.com...
