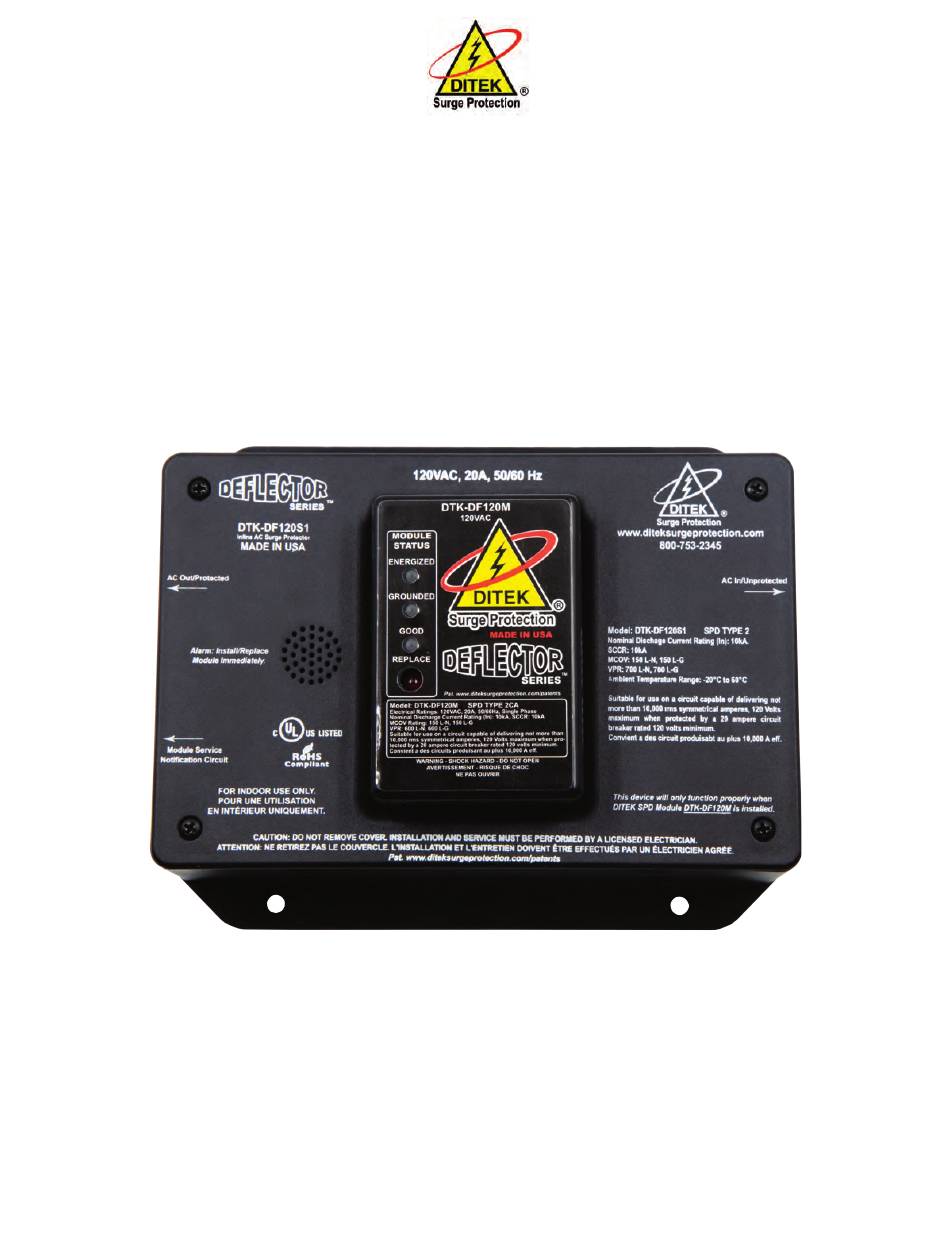

- Page 1 DTK-DF120S1 User Guide DITEK CORPORATION One DITEK Center 1720 Starkey Road Largo, Fl 33771 1-800-753-2345 www.diteksurgeprotection.com...

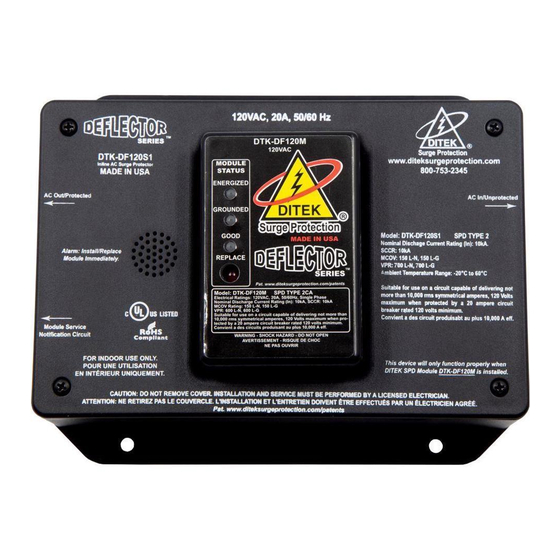

- Page 2 POSITION GOOD REPLACE The DTK-DF120S1 is a series connected Surge Protective Device with a replaceable surge module.The LED indicators on the top face of the DTK-DF120M provide power, ground and surge module health status. When the DTK-DF120M surge module has gone end of life, the large “REPLACE”...
- Page 3 DTK-DF120S1 (120V 20A Series Surge Protective Device) CAUTION: Risk of Electric Shock-Only intended for installation in accordance with National Electric Code, ANSI/NFPA-70, Article 398. Warning: Turn power off at the main circuit breaker panel before beginning install. Note: Connect this device in series between the 120VAC power supply and the alarm panel, or branch panel 120VAC inputs.
- Page 4 AVERTISSEMENT - RISQUE DE CHOC NE PAS OUVRIR 0.250 4.325 6.580 Ø1.109 Ø1.109 0.770 3/4” NPT Conduit Fitting 5.333 1/2” NPT Conduit Fitting Ø0.875 1.840 191603 INT-100172-001 Rev 1 DITEK CORPORATION One DITEK Center 1720 Starkey Road Largo, Fl 33771 1-800-753-2345 www.diteksurgeprotection.com...
