Ditek DTK-TSS5 User Manual

DTK-110RJC6APOE (10 Gigabit Ethernet Surge Protector)
Application
Surge suppression for PoE circuits transmitting video and/or data over CAT6
or CAT6A cable.The DITEK is wired in series and terminates with a 110 punch
down to RJ45 Plug.
DISCONNECT CIRCUIT BEFORE BEGINNING INSTALL.
1. Connect the incoming (field) wires to the IDC (110) punch down block using the
proper punch down tool designed for IDC connectors. Using any other tool will
damage the IDC connector and void warranty.
2. Follow the wire color codes printed on the circuit board next to the IDC
connectors for wire termination points.
T568A Wiring- BL-BL/W, BR-BR/W, OR/W-OR, GR-GR/W
T568B Wiring- BL-BL/W, BR-BR/W, GR/W-GR, OR-OR/W
This connector is rated for 26-22AWG solid conductor wire.The wire pairs must be
twisted together and maintain that twist all the way to the punch down block.
3. If using STP (Shielded Twisted Pair) the shield must be connected to the
"Shield GND" termination screw located on the circuit board near the IDC connector.
This can be accomplished by twisting the shield into a wire and wrapping it under
the screw.
4. Using the velcro loops provided, secure the CAT6/CAT6A cabling to the circuit
board.
5. Using a CAT6 or CAT6A rated patch cord with a properly tipped RJ45 connector,
plug one end into the DITEK and the other end into the equipment to be protected.
6. After all connections have been made and no hazards exist, restore the circuit.

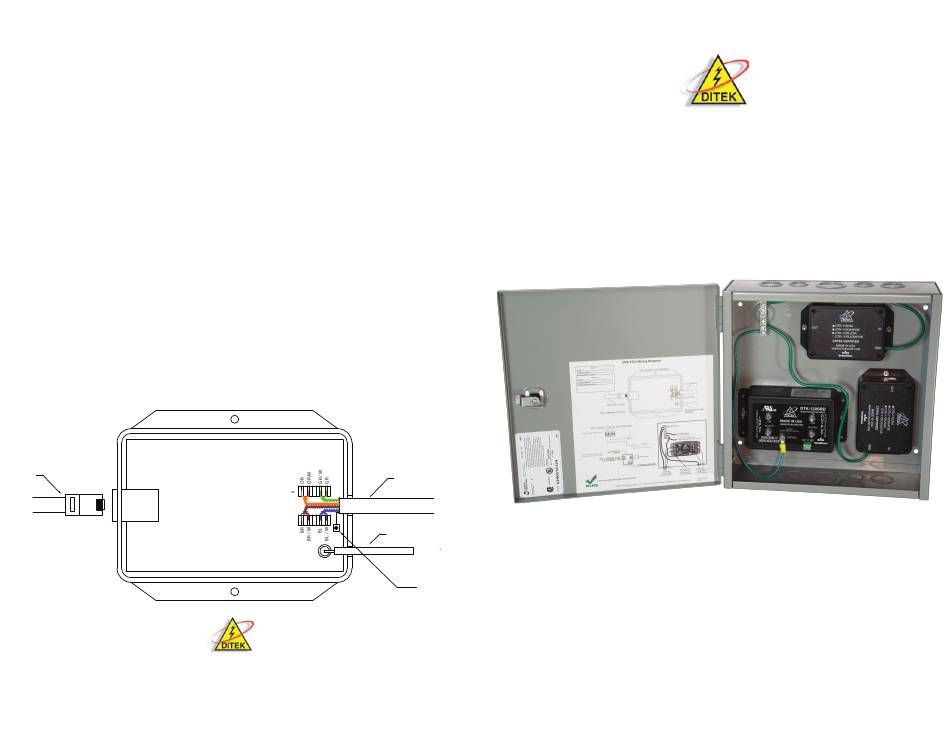

TO PROTECTED EQUIPMENT
3' MINIMUM LENGTH
OUPUT
Note: T568B Wiring Shown
191593 INT-100162-001 Rev 1
DITEK CORPORATION
One DITEK Center 1720 Starkey Road Largo, Fl 33771
1-800-753-2345
DTK-110RJC6APOE
INCOMING (FIELD) WIRING
GROUND WIRE 14 AWG
MINIMUM
INPUT
www.ditekcorp.com
SHIELD GND

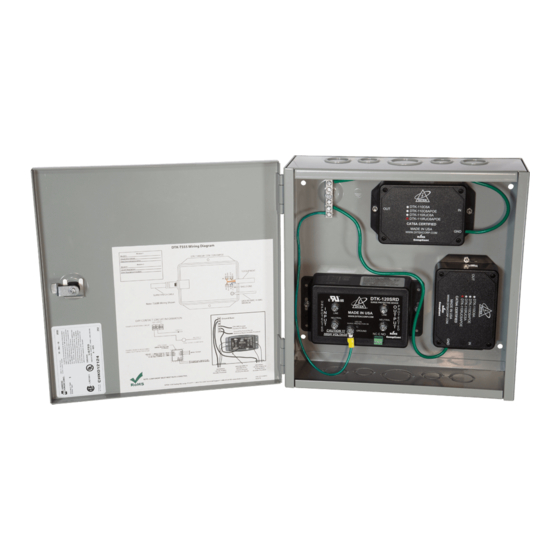

DTK-TSS5
Total Surge Solution
User Guide
DITEK CORPORATION
One DITEK Center
1720 Starkey Road
Largo, Fl 33771
Sales: 1-800-753-2345
Technical Support: 1-888-472-6100
