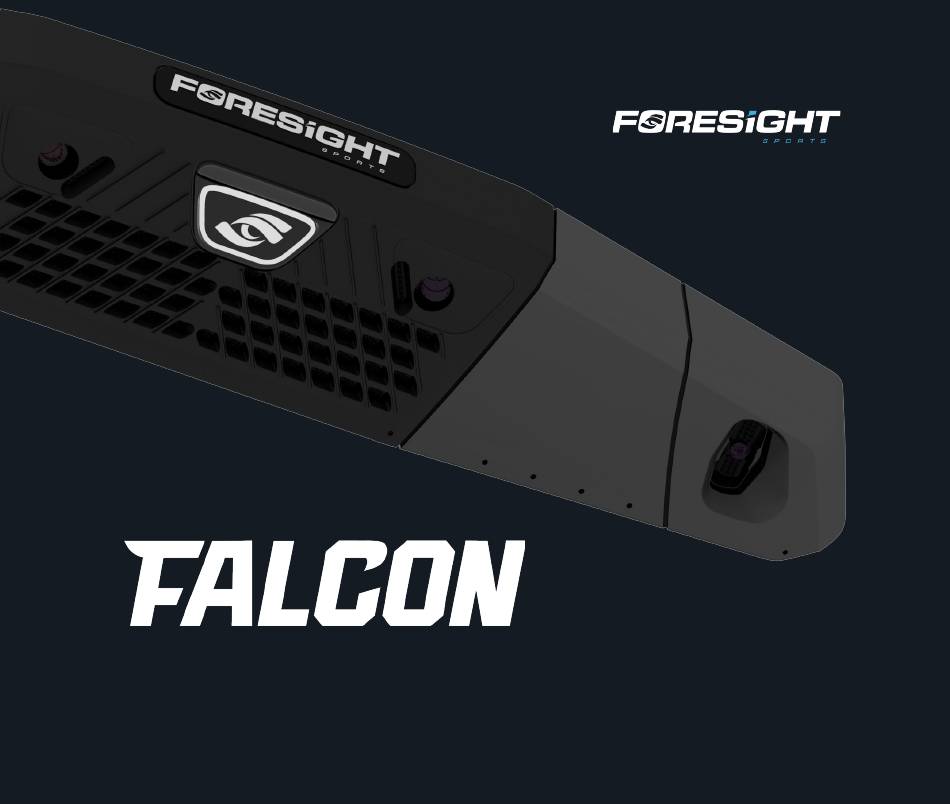

- Page 1 Quick Start Guide...
- Page 2 FALCON QUICK START GUIDE Foresight Falcon Components Remove contents from the box. Make sure the box includes all components listed in this Quick Start Guide and that there are no damaged components. In addition, make sure the calibration wand has five white dots.
- Page 3 FALCON QUICK START GUIDE Launch Monitor Features...
-
Page 4: Installation Layout
9.5 to 10.5 feet tall, and the center of the hitting mat should be placed 10 to 12 feet from the screen and 4 feet away from the Falcon. There should be room to swing for both a... - Page 5 FALCON QUICK START GUIDE The Falcon has two hitting zones, the club zone and the ball only zone. The club zone collects data on both the ball and club, the ball only zone collects ball data. Hitting zone dimensions for the club zone (dark blue) and ball only zone (light blue) shown in the figure above.
- Page 6 2) Run the power cord from a power source to the overhead location where the Falcon will be mounted. Plug one end of the power cord into the back of the Falcon (see figures) and the other end into a GFCI-protected outlet or GFCI-protected power strip.
- Page 7 FALCON QUICK START GUIDE...
-
Page 8: Power On/Off And Reset
Power On/Off and Reset To Power On: 1) To turn on the Falcon, press the POWER button to initiate boot of the Falcon. The grip end of a golf club can be used to reach the POWER button. 2) The status bar will illuminate yellow when the Falcon is turned on and booting up. The... -
Page 9: Status Bar
FALCON QUICK START GUIDE To Power Off: 1) To turn off the Falcon, press the POWER button on the back of the device with the grip end of a golf club. The status bar should turn off completely. (Power button will remain illuminated regardless of device state.) -
Page 10: Device Connectivity
Falcon is powered on. *Note: It is highly recommended that your PC is connected to the internet before starting calibration. Once the Falcon resets and boots up, you should see a blue light appear on the Falcon - your calibration is complete! - Page 11 FALCON QUICK START GUIDE Connecting to Software Connecting your Foresight Sports Falcon to our gaming and performance software is necessary to see your shot data. Once you have completed the overhead calibration process, launch either FSX Play or FSX Pro and navigate to the device connection screen. Your device will appear on screen once it’s recognized.
- Page 12 Scan the QR Codes below for the full Falcon manual and additional support. Full Manual Support Still have questions? Go to our support page: www.foresightsports.com/support...
