Summary of Contents for FORESIGHT GC2
- Page 2 Foresight Sports may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from Foresight Sports, the furnishing of this document does not give you any license to these patents, trademarks, copyrights, or...
-
Page 3: Feature Overview

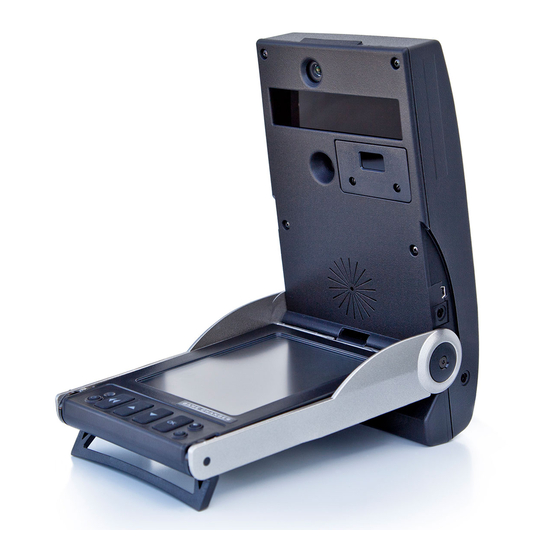

Feature Overview LEFT SIDE VIEW tracking cameras Tracking Cameras high speed optical cameras for ball placement interchangeable and tracking fl ash module Flash Module replaceable high intensity strobe light for tracking LCD display Audio Speaker provides audio announcement of launch data audio speaker Audio Line Out connector to enable external, amplifi... -
Page 4: Getting Started
Deploy the foot stand by rotating it 180 degrees until it is directly below the base of the GC2. Be sure to rotate stand until it comes to a stop. Open the top of the device by rotating top cover back until it comes to a stop. - Page 5 To change the current setting of SYSTEM OPTIONS the selected option, press the Once the GC2 is ON and has fully completed its boot-up sequence, Velocity Unit OK key until the desired setting the player’s preferred SYSTEM OPTIONS can be changed.
- Page 6 Once the ball is placed within the hitting zone and the LED indicator has turned green, a shot may be hit. Upon launch, the GC2 will capture images of the ball in fl ight, calculate and display the launch parameters. If sound is enabled, the launch...
-
Page 7: Safety Instructions
Safety Instructions Please read the safety and warning information below before operating The GC2 has a replaceable fl ash unit installed. Depending on usage, this unit should operate reliably for one to two years. If the fl ash unit requires your new GC2 smart camera system: replacement, it can be easily removed and replaced. - Page 8 USB cables to the device: The battery in your GC2 has been designed to provide safe, reliable operation. However, the life of your GC2 battery and its ability to hold an adequate charge is dependent upon a regular routine of fully discharging and recharging the battery.
-
Page 9: Troubleshooting Guide
LCD displays a • Make a copy of the message, and call message on screen Foresight Sports customer support asking me to contact for further assistance. The ball placement • The placement aid is visible only when the... -
Page 10: Product Specifications
Product Specifi cations Stereoscopic high-speed TECHNOLOGY: digitial camera tracking system. GC2 Dimensons 5.5”W x 10”L x 3”T (Closed) Weight: 3.8 lbs (1.7 kg) Data Interface: USB/Bluetooth Battery: 6-8 hour Rechargeable NiMH Measured Data: Ball Speed, Side spin, Azimuth, Back Spin,... - Page 11 © 2012-2013 Foresight Sports Printed in the USA gc2um-2012-03 www.foresightsports.com...
