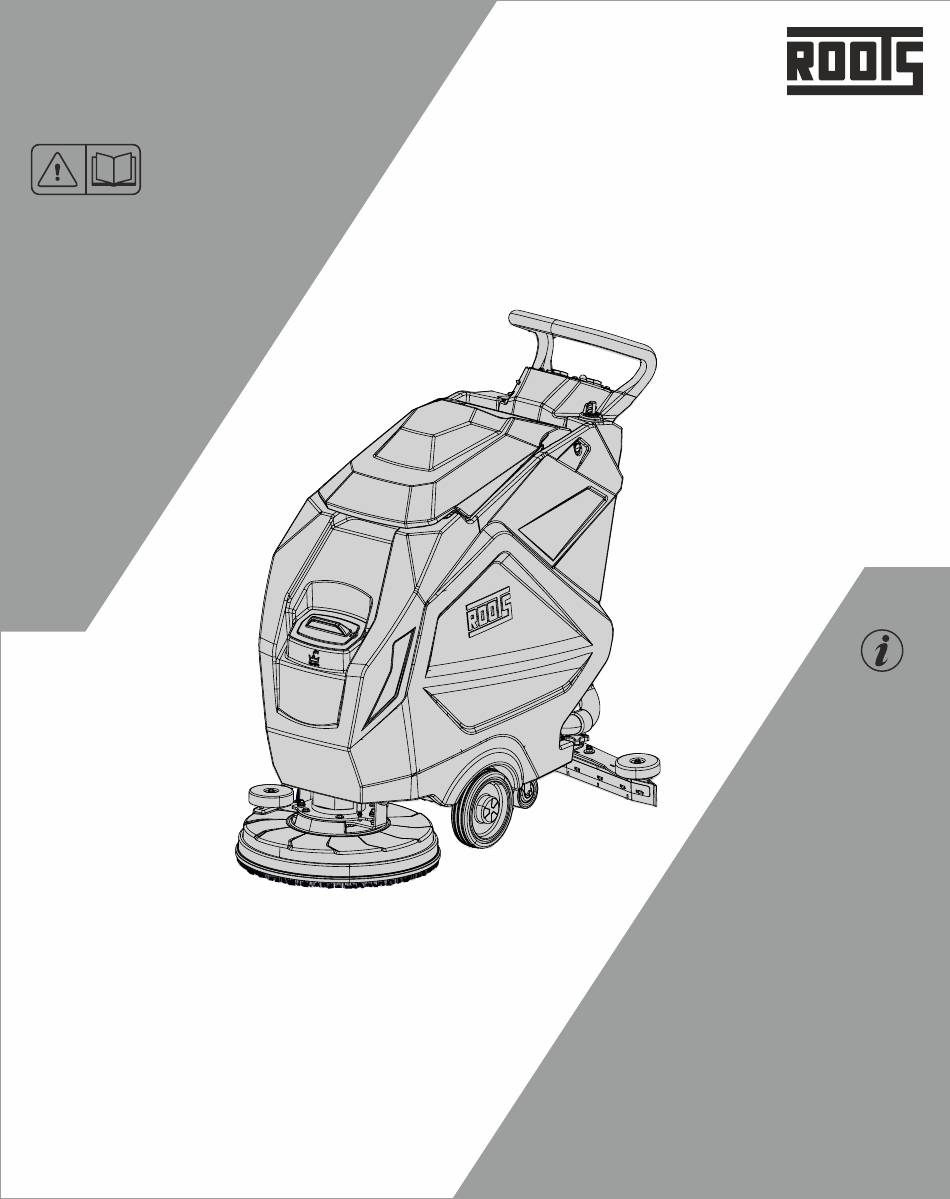

- Page 1 RootsScrub E4043 Walk Behind Scrubber Drier Electric 230V/50Hz Read this manual completely and understand the Operator’s Manual instructions before operating the machine. RootsScrub E4043 “English Version”...
- Page 2 RootsScrub E4043...
-
Page 3: Table Of Contents
Installation Date - ___________________________ Operator Notes USER MANUAL ROOTS philosophy is to continually improve all of its products. For this reason we may modify the design, appearance and engineering of our products periodically. Therefore, some changes, modifications and improvements may not be covered in this manual. -
Page 4: Introduc On
The letter should be sent within 24 hours of receipt of machine comes with our Roots promise of quality, efficiency and the machine. performance. -
Page 5: Intended Use
/ b r u s h e s a n d recommended floor cleaning detergents. Do not use this machine in any other way other than described in this Operator’s Manual. RootsScrub E4043... -
Page 6: Technical Specifica Ons
Scrubbing width - 430 mm Brush pressure - 22 Kg Fresh water tank - 40 L Dirty water tank - 40 L Sound level - 73.5 dB (A) Dimensions: Length with SQG - 1205 mm SQG - Squeegee RootsScrub E4043... -
Page 7: Safety Instruc Ons
Do not use to suck in dry damaged by running over, pinching, dragging or similar. dust! Protect the cable from heat, oil, and sharp edges. This machine must be used indoors only. RootsScrub E4043... - Page 8 Maintenance work may be carried out only by approved customer service outlets or experts in this field who are familiar with the respective safety regulations. Please observe the local safety regulations regarding portable commercially used machines. Always attach a “Do Not Start” tag during maintenance procedures. RootsScrub E4043...
- Page 9 Manual Do Not Use High Toxic Hazard Reset Warning Motorized Brush Head Pressure Jets Do not let powercord come in contact with Electrical Hazard STOP No Access No Smoking water or other fluids. Disconnect Powercord Electric Shock Hazard RootsScrub E4043...
- Page 10 Batteries, electrical & electronic components contain substances that must not enter the environment. Please dispose off your old machine, batteries, electrical & electronic components using appropriate collection systems at the end of the product’s life cycle. RootsScrub E4043...
-
Page 11: Know Your Machine
7. Swivel Castor Wheel 8. Control Unit with Handle 9. Control Panel 10. Squeegee Raise/Lower Handle 11. Brush Head Raise/Lower Pedal 12. Squeegee suction Hose 13. Dirty Water Tank Drain Hose with Cap 14. Fresh Water Flow Control Knob RootsScrub E4043... - Page 12 19. Squeegee Suction Port 20. Fresh Water Fill Port with Filter 21. Mechanical Float with Strainer 22. Flow Diverter 23. Electrical Float Switch 24. Lid Safety Stopper 25. Brush Release Switch 26. Fresh Water Level Indicator Hose 27. Ball Valve RootsScrub E4043...
- Page 13 KNOW YOUR MACHINE DECALS ON THE MACHINE: E4043 Control Panel Sticker MACHINE ORIENTATION: Front Right Left Rear RootsScrub E4043...
-
Page 14: Working Principle
Instructions for dosage are given on the detergent tank and · operator must ideally adhere to manufacturer's recommendations. The ideal type of detergent and the perfect dosage · applicable to it will come through sustained use of the machine. RootsScrub E4043... -
Page 15: Machine Opera On
F Owner’s personnel are not allowed to unpack the machine. NOTE F Before unpacking, carefully check the packaging for signs of damage. Report to authorized Roots Multiclean Ltd personnel immediately. F Upon unpacking, check for missing items or damaged parts. Report to authorized Roots Multiclean Ltd personnel immediately. - Page 16 This knob is used to control the flow of fresh water from the tank to the brush head. Turn the knob clockwise to close or reduce the water flow. Turn the knob anti-clockwise to increase the water flow. RootsScrub E4043...
- Page 17 5. Brush Release Switch: The brush release switch is located at the rear of the machine in the control unit to left hand side of the machine. The brush release switch is used to remove the disc brush from the machine. RootsScrub E4043...
- Page 18 Ensure that nobody including the operator modifies or alters the machine or any of its func on, doing so may cause fatal injury or death or it may damage the machine itself. g. Ensure that children do not operate the machine. RootsScrub E4043...
- Page 19 Do not mix dirty water. Ø Do not mix acids or heavy industrial de-greasers. Ø Recommended Cleaning Detergents: Ensure that only low-foaming, non corrosive detergents are used. Example: RootsScrub - Low Foam Refer the package instructions for dosage levels. RootsScrub E4043...
- Page 20 To raise the brush head - Push the pedal slightly to its right to release it from the locked position. The pedal raises upwards and locks into position ensuring that the brush head is raised and secured. RootsScrub E4043...
- Page 21 Align disc brush to center of brush head. (Disc brush now in front of the machine) Catch Holder WARNING Disc Brush Do not operate the brush release switch when the brush motor switch is in On position. E4043 RootsScrub E4043...
- Page 22 Ensure that the tanks are empty. Ÿ Lift the squeegee raise/lower handle. Ÿ Loosen the knobs (a) on the squeegee (d) and remove them. Ÿ Remove the washers (b). Ÿ Remove the squeegee from the holder (c). Ÿ Disconnect suction hose (e). RootsScrub E4043...
- Page 23 Epoxy Marble Poly Nylon Silicone Carbide Pad Application: Pad Colour Process Black Brown Green Blue Beige White Natural Stripping Recoat Scrub Routine Cleaning: - Heavy Soil Load - Medium Soil Load - Light/Normal Soil Load Spray Buffing Burnishing RootsScrub E4043...
- Page 24 Within a short time, the operator will learn how to avoid è Set water flow using the water flow control knob (c). unnecessary inconveniences caused by the cable. Lower the squeegee (d). è Lower the brush head (e). è Move machine forward to start scrubbing. è RootsScrub E4043...
- Page 25 Slowly open the drain hose cap (b) to let the dirty water flow è out. Wait till the dirty water tank is completely empty. è è Clean the dirty water tank with clean fresh water. Close the drain hose cap and secure the drain hose to the è machine. RootsScrub E4043...
-
Page 26: Maintenance
Please contact your local Roots Multiclean Ltd. dealer. The CLEANING OR SERVICING THE MACHINE. people there will be glad to perform that work for you. Their well trained personnel and genuine Roots spare parts are at your disposal. DANGER In case of any inquiry or order for spare parts, please always quote the machine's serial number mentioned on the nameplate. - Page 27 Ensure that water does not enter the suc on turbine. WARNING DO NOT DRAIN THE DIRTY WATER INTO DO NOT DRAIN THE DIRTY WATER INTO THE ENVIRONMENT. THE ENVIRONMENT. THERE IS A RISK OF THERE IS A RISK OF CONTAMINATING THE ENVIRONMENT. CONTAMINATING THE ENVIRONMENT. RootsScrub E4043...
- Page 28 Clean the filter under clean running water. Use a brush to WARNING clean any salt deposits. Use mild detergent if required. DO NOT DRAIN THE DIRTY WATER INTO THE ENVIRONMENT. THERE IS A RISK OF CONTAMINATING THE ENVIRONMENT. RootsScrub E4043...
- Page 29 Secure the lips using the squeegee lip holder via the toggle clamp. DO NOT CLEAN THE SQUEEGEE AND ITS COMPONENTS INTO THE ENVIRONMENT. THERE IS A RISK OF CONTAMINATING THE ENVIRONMENT. WARNING DO NOT USE HARSH CHEMICALS AND ACIDS TO CLEAN. Squeegee Lip Holder Squeegee Lip RootsScrub E4043...
- Page 30 DO NOT USE HARSH CHEMICALS AND ACIDS TO CLEAN. DO NOT USE HIGH PRESSURE JETS TO CLEAN THE BRUSH. DO NOT CLEAN THE MACHINE BY MEANS OF VAPOUR JET OR HIGH PRESSURE CLEANING EQUIPMENT. WARNING: Disconnect power cord. RootsScrub E4043...
- Page 31 If the squeegee lips are in good condition invert them to use the other side. If the squeegee lips are completely worn out, replace the same with new ones. Secure the lips using the squeegee lip holder via the toggle clamp. RootsScrub E4043...
- Page 32 The suction turbine is located within the lid assembly. In case of Fuse: any fault in the suction turbine call authorized Roots Multiclean Ltd personnel to perform maintenance tasks. A fuse is used to protect the suction turbine in case of a failure.
- Page 33 Open the flow control knob to start the flow of antifreeze through the tubes and nozzle. Ÿ Close the flow control knob when the antifreeze is visible on the floor. Ÿ After storing the machine in freezing temperatures, drain any remaining antifreeze from the tank. RootsScrub E4043...
- Page 34 Check squeegee holder and castor roller, re-adjust if required Brush head skirt Check for damage and wear 200 Hours Hoses Check for damage and wear Squeegee lips Check for wear, turn or replace Suction turbine Check carbon brushes, replace if required RootsScrub E4043...
-
Page 35: Troubleshoo Ng
TROUBLESHOOTING TROUBLESHOOTING PROBLEM CAUSE REMEDY Faulty power switch Contact Roots service No power - nothing works Fuse blown Rectify the cause & replace fuse Brush motor does not work Reset circuit breaker Brush motor does not work Faulty brush motor or loose cable... -
Page 36: Do & Don'ts
Do not abuse the machine beyond its operable limit. û Do not mix brushes and use. û Do not store the machine by exposing it to the natural elements. û Do not use the machine to tow or push other equipments. û RootsScrub E4043... -
Page 37: Operator Notes
OPERATOR NOTES RootsScrub E4043... - Page 38 RootsScrub E4043...
- Page 39 RootsScrub E4043...
- Page 40 Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. Phone: +91 (422) 4330 330, E-mail: rmclsales@rootsemail.com Web: rootsmulticlean.com RootsScrub E4043 Toll Free: 1800 41 99 77 9...
