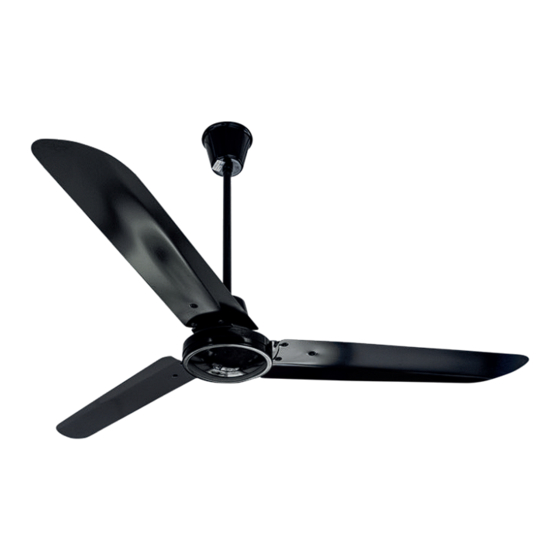

- Page 1 ® INSTALLATION MANUAL Destratification Fan Model SR...
-
Page 2: Installation
Content General Description Technical Data Pre-Installation Location Contents of the package Installation Fixing the ceiling J-hook Fitting the fan blades Hanging the fan Wiring the fan Fitting the safety wire Fitting the upper canopy Troubleshooting Maintainance 11 Disposal and recycling The meaning of the symbol on the material, its accessory or packaging indicates that this product shall not be treated as regular waste. -
Page 3: Pre-Installation
This user’s guide is meant for the installer and if necessary for the user. It’s a reference to operation and installation 4. Installation of the SR destratification fan. 4.1 Fixing the ceiling J-hook 1.1. Description Mount the ceiling J-hook (Fig. 3) with fixings suitable for SD is a 3 bladed ‘sweep’... - Page 4 Mount the three fan blades (blade holder up) to the mo- instructions packed with the controller. tor using the screws, spring washers, washers and blade holder underlay cards. See Fig. 4). This appliance MUST be earthed. Ensure the blade screws are evenly and safely tightened 4.5 Fitting the safety wire (with care not to damage the thread).
-
Page 5: Maintenance
