WELL-CONTACT PLUS
01507

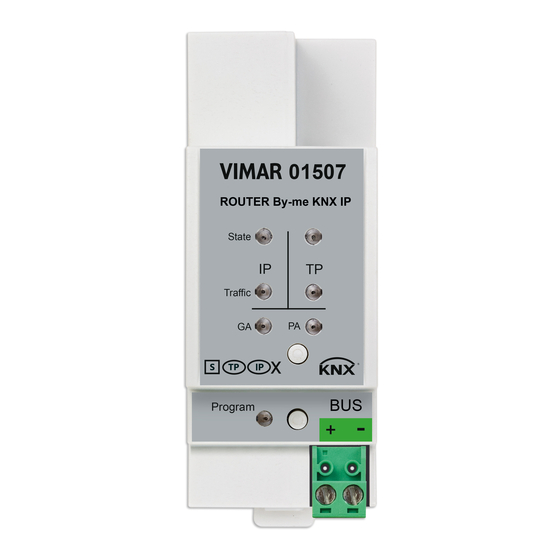

By-me KNX IP Router, KNX Secure standard, installation on
DIN rail (60715 TH35), occupies 2 modules size 17.5 mm.
The By-me/KNX router enables communication between parts of a system
comprising By-me devices, grouped together within an "island", with a system
comprising KNX devices. The messages are transmitted in both directions
according to criteria which define the correspondence of the communication
objects belonging to the specific domains. The router allows up to 500 routing
rules. Each rule is specified by the By-me group address, by the KNX address, by
the direction of communication (from KNX to By-me; from By-me to KNX; both) and
by the type of information exchanged (1 bit, 2 bit, ...).
The device is equipped with a TP terminal for connection to the By-me BUS, an
Ethernet connector and a front push button for configuration via ETS. The power
supply is provided by the By-me BUS.
Router 01507 conforms to the KNX Secure requirements on the datapoints defined
in the routing table. A datapoint on the KNX side can be defined for the heartbeat
signal.

CHARACTERISTICS:

• Rated supply voltage: BUS 21- 30 V DC (SELV)
• Max current consumption (on the By-me BUS): < 20 mA
• Dissipated power:
- 800 mW average
- 1100 mW maximum
• Operating temperature: - 5°C to + 45°C (indoor use)
• IP20 protection degree
• Protection class III
• Overvoltage category III
• 2 modules of 17.5 mm

CONNECTIONS.

The connection to the bus is made directly from the By-me BUS terminal on the
front of the device. A standard RJ45 connector is available for connection to the
KNX over IP network. The router can be installed inside mounting boxes or panels,
surface mounting or flush mounting with DIN rail (60715 TH35).

CONFIGURATION.

Configuration of the By-me Plus system is carried out using the View Pro App
updated to the latest version (gateway 01410-01411 must be present). On
completion, all the information about the By-me devices can be exported to an
XML file and made available on KNX. The IP KNX Secure router 01548 must be
used to configure the device from one of the tunnelling connections envisaged,
or the IP interface 01547.1 or the USB KNX interface 01540.1 or similar. The
KNX part is configured using the ETS software; a dedicated component, referred to
as a DCA (Device Configuration App), allows you to define the routing rules for the
exchange of messages. The purpose of the DCA is to define the Communication
Objects of the device and allow association of the By-me group address for each
one. Configuration of the KNX group associated with the Communication Object
will be carried out using the standard ETS interface.
The DCA simplifies configuration operations thanks to the copy communication
object function. The copying (cloning) of an entire router is permitted by the
standard ETS functions.
To begin configuring the device and assigning the respective physical address,
press the configuration push button.
All the updated ETS databases can be downloaded from the "Software" section
of the website www.vimar.com.

DEVICE RESET.

Press push button H (LEDs B and C light up) and hold it down for approximately
10 s. When the LEDs are turned off, release the push button and press it again
for approx. 1 s.

INSTALLATION RULES.

• Installation must be carried out by qualified persons in compliance with the
current regulations regarding the installation of electrical equipment in the country
where the products are installed.
• Switch off the power supply before beginning installation.
• Carefully carry out the electrical insulation when making the connections.
• Make sure you keep the 120/230 V lines separate from the SELV conductors.
01507 01 2306
CAUTION: Installation of 120/230 V power lines must only be carried out by qualified
persons.

REGULATORY COMPLIANCE.

EMC directive. RoHS directive.
Standards EN IEC 62368-1, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 63044,
EN IEC 63000.
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces
of lead.

WEEE - User information

The crossed bin symbol on the appliance or on its packaging indicates that the product at the end of its life
must be collected separately from other waste. The user must therefore hand the equipment at the end of its
life cycle over to the appropriate municipal centres for the differentiated collection of electrical and electronic
waste. As an alternative to independent management, you can deliver the equipment you want to dispose of
free of charge to the distributor when purchasing a new appliance of an equivalent type. You can also deliver
electronic products to be disposed of that are smaller than 25 cm for free, with no obligation to purchase, to
electronics distributors with a sales area of at least 400 m
recycling, processing and environmentally conscious disposal of the old equipment helps to prevent any
possible negative impact on the environment and human health while promoting the practice of reusing and/
or recycling materials used in manufacture.
. Proper sorted waste collection for subsequent
