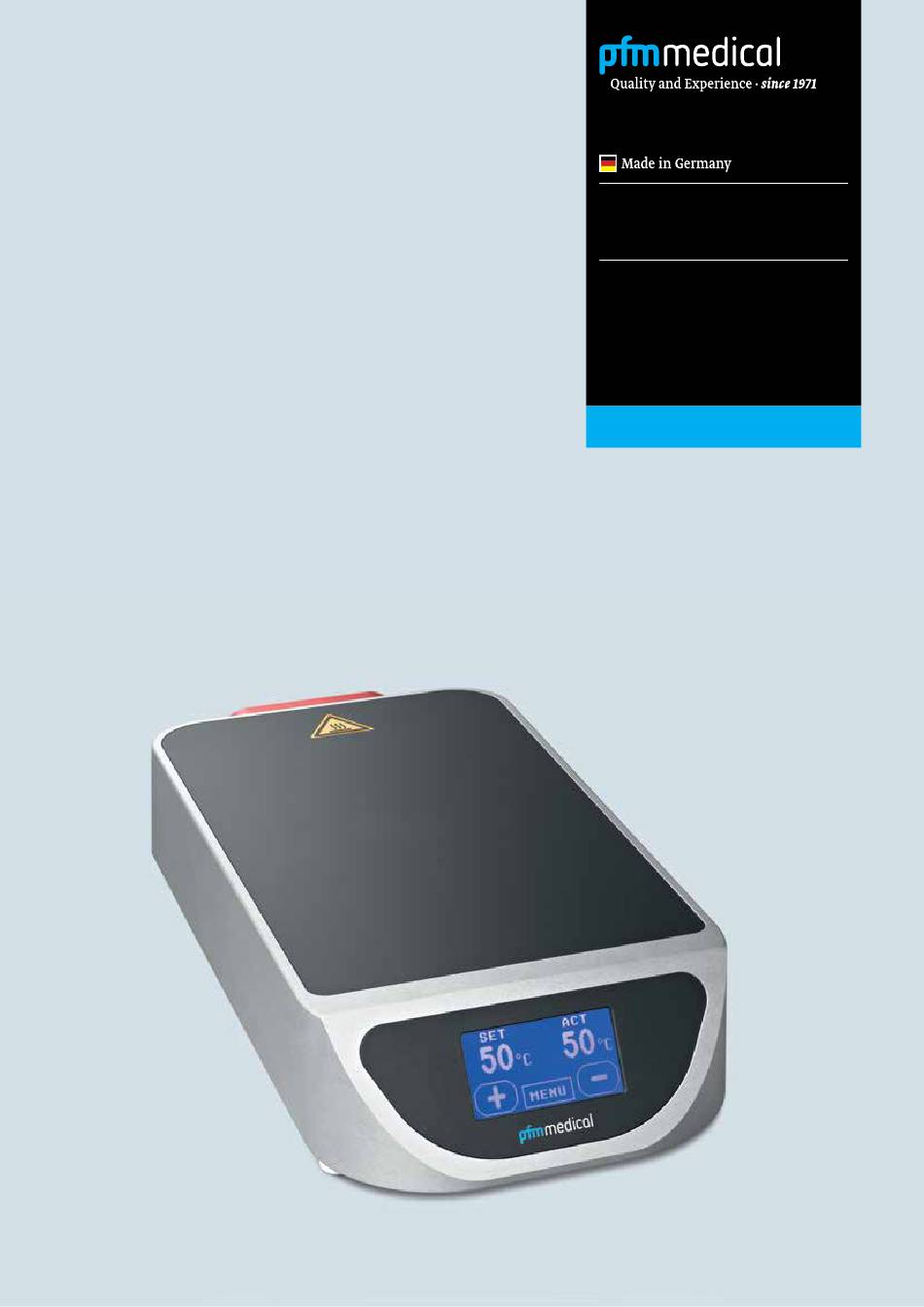

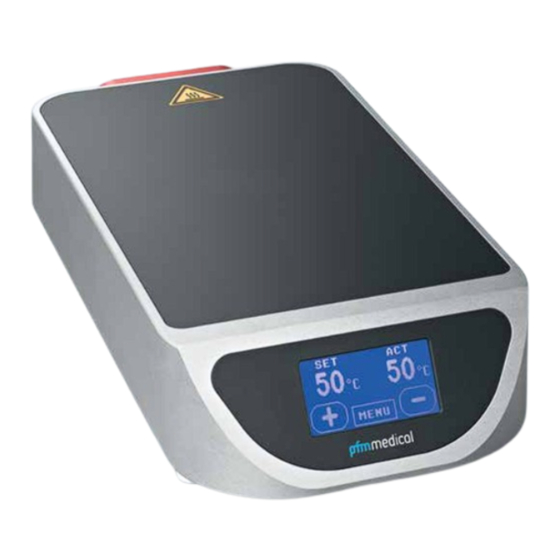

- Page 1 Operating Manual pfm Stretching Table 1100 The pfm Stretching Table 1100 is a modern, newly designed device for stretching and drying paraffin sections in the histotechnology laboratory. It can be used in routine practice, research and industry. www.pfmmedical.com...
- Page 2 Serial number: Please enter the serial number of your instrument, which can be found on the nameplate. pfm Stretching Table 1100 Rev.2024-01-01...
-
Page 3: Table Of Contents
Part 4 – Maintenance, cleaning and care 4.1 Cleaning and care 4.2 Cleaning and care touchscreen/display 4.3 Maintenance 4.4 Instrument fuse 4.5 Warranty 4.6 Declaration of Conformity Part 5 – Disposal of the pfm Stretching Table 1100 when put out of use Rev. 2017-09-29 Rev.2024-01-01... -
Page 4: Part 1 - Safety Instructions
Failure to observe these precaution measures is contrary to the recognized technical regulations and to the intended use of the instrument. In the case of infringement, pfm medical gmbh does not accept any form of liability. 1.1 pfm Stretching Table 1100 safety devices ▸... -
Page 5: Part 2 - Introduction
Simple cleaning and maintenance processes The functions of the instrument are controlled with a The housing of the pfm Stretching Table 1100 is made from touch screen, which allows easy and convenient operation. one aluminium block. The surface is anodised to a light The temperature is also adjusted via the touch-screen colour and easy to clean. -
Page 6: Details Of The Pfm Stretching Table 1100
▸ Over-temperature protection device to avoid overheating and damage 2.4 Technical data for the pfm Stretching Table 1100 ▸ Dimensions overall (W/D/H): 180 x 386 x 80 mm ▸ Dimensions heating plate (W/D): 170 x 300 mm ▸ Weight: 4.0 kg ▸... -
Page 7: Part 3 - Operating Instructions
Operating instructions Part 3 – Operating instructions 3.1 Unpacking and setting up ▸ ▸ Dismount the packaging and remove the instrument. The instrument may be set up only indoors, and not in ▸ Observe the instructions contained in the package. locations where there is a risk of explosion. -
Page 8: Temperature Setting
RESET button. By selecting the RESET display. The display shows the button, a factory reset is performed. current hardware and software The screen display will automatically status. return to the initial display. pfm Stretching Table 1100 Rev.2024-01-01... -
Page 9: Part 4 - Maintenance, Cleaning And Care
Details can be obtained from your responsible sales undertaken by a trained maintenance technician once a representative or directly from pfm medical gmbh. year. pfm medical gmbh is able to service your instrument 4.4 Instrument fuse The instrument fuses are situated on... -
Page 10: Warranty
Maintenance, cleaning and care 4.5 Warranty The product, pfm Stretching Table 1100, was carefully To assert a claim under this undertaking, the device inspected and tested by us. involved in the complaint must be sent to us, at the However, in the event of any defect, apart from minor customer‘s expense and risk, with a detailed description... -
Page 11: Part 5 - Disposal Of The Pfm Stretching Table 1100 When Put Out Of Use
Substances in Electrical and Electronic Equipment). We, pfm medical gmbh, feel responsible for our products, from the initial idea to their disposal and see the situations as being an opportunity for us to make our contribution to the conserving of resources. As the manufacturer, we assume responsibility for the disposal of the decommissioned equipment on your behalf. - Page 12 Should you have any questions our Customer Solutions Team is happy to advise you. service@pfmmedical.com +49 (0)2236 9641-220 +49 (0)2236 9641-51 pfm medical gmbh Wankelstraße 60 50996 Köln Germany www.pfmmedical.com – Your information source for the products of pfm medical gmbh IFU2001100/Rev.2024-01-01...
