Operating Manual
pfm Forceps EWF 600
Please read this operating manual
carefully before using the instrument
for the first time and make certain
that you are familiar with the method
of operation as well as the instrument's
operating elements to ensure that it
is used in the correct way.
www.pfmmedical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWF 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for PFM Medical EWF 600

  • Page 1 Quality and Experience Operating Manual pfm Forceps EWF 600 Please read this operating manual carefully before using the instrument for the first time and make certain that you are familiar with the method of operation as well as the instrument’s operating elements to ensure that it is used in the correct way.
  • Page 2 All the information in this operating manual applies to the pfm Forceps EWF 600. Serial number: Please enter the serial number of your instrument here.
  • Page 3: Table Of Contents

    4.4 Returning the pfm Forceps EWF 600 for repair or maintenance 4.5 Decontamination 4.6 Instrument fuse 4.7 Warranty 4.8 Declaration of Conformity Part 5 – Accessories Part 6 – Disposal of the pfm Forceps EWF 600 when put out of use pfm Forceps EWF 600 Rev. 2022-04-01...
  • Page 4: Part 1 - Safety Instructions

    Safety instructions Part 1 – Safety instructions Please read this operating manual carefully before working with the pfm Forceps EWF 600. Make certain that you are familiar with the instrument‘s controls and method of operation. Always observe the following precautions during operation of the instrument. Failure to do so is contrary to the recognised technical regulations and the intended use of the instrument.
  • Page 5 Permissible temperature range at the place of use +10°C - +40°C 10°C 50°C Permissible temperature range for storage and transportation -10°C - +50°C -10°C Permissible humidity range for storage and transportation, and at the place of use 10% - 80% (non-condensing) pfm Forceps EWF 600 Rev. 2022-04-01...
  • Page 6: Intended Purpose

    Safety instructions 1.2 Intended purpose The pfm Forceps EWF 600 is the first wireless electronic may only be operated by appropriately trained personnel. forceps for safe transfer and alignment of human and animal The product facilitates the preparation of tissue samples...
  • Page 7: General Precautions

    The samples used The electromagnetic environment should be assessed may potentially be infectious. The general laboratory rules before the pfm Forceps EWF 600 are operated. Do not use regarding protection against infections must therefore be this instrument near strong sources of electromagnetic observed.
  • Page 8: Part 2 - Introduction

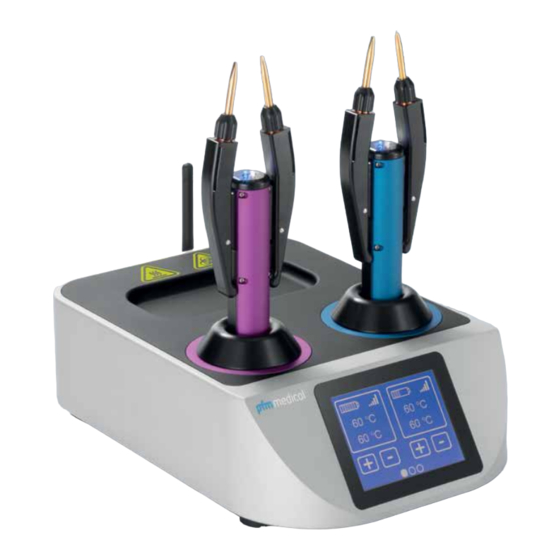

    2.1 View of the pfm Forceps EWF 600 Antenna Base station Forceps Display 2.2 Technical data for the pfm Forceps EWF 600 ▸ Dimensions (W/D/H): 180 × 290 × 250 mm ▸ Power supply: 110 - 240 V, 50/60 Hz ▸...
  • Page 9: Part 3 - Operating Instructions

    NOTE If possible, retain the original packaging for the entire lifetime of the instrument so that you can repackage the instrument correctly if it needs to be sent for servicing. pfm Forceps EWF 600 Rev. 2022-04-01...
  • Page 10: Initial Operation

    3.2 Initial operation ▸ WARNING Before switching on the pfm Forceps EWF 600 for the first time, check that Caution! Only use the mains the supply voltage and frequency power cable with ferrite core specified on the nameplate match the supplied with the instrument.
  • Page 11: Display

    The tips of the forceps are gold-plated for optimal thermal conductivity. 3.6 Illumination of the working area ▸ The pfm Forceps EWF 600 have an integrated white light in order to illuminate the work area for better detection of smaller tissue samples.
  • Page 12: Forceps Battery Level

    A poor connection, or no connection, is indicated by the blue forceps light flashing. 3.9 Menu settings Brightness The pfm Forceps EWF 600 are equipped with a modern touch screen. Lightly Press the button to adjust the Brightness swiping the screen with the fingertip brightness of the display.
  • Page 13: Factory Settings

    Display does not respond Grease (e.g. from hand cream) Check the display for damage or clean it Dirt and dust The display must be dry and free of dirt Humidity Restart the instrument Display damaged pfm Forceps EWF 600 Rev. 2022-04-01...
  • Page 14: Part 4 - Maintenance, Cleaning And Care

    Forceps EWF 600, routine maintenance should be undertaken obtained from your sales representative or directly from by a trained service technician once a year. pfm medical ag pfm medical ag. We recommend an annual electrical safety provides maintenance to ensure that your instrument inspection.
  • Page 15: Returning The Pfm Forceps Ewf 600 For Repair Or Maintenance

    Maintenance, cleaning and care 4.4 Returning the pfm Forceps EWF 600 for repair or maintenance Repairs and maintenance work are usually carried out on Servicing can only be carried out if a certificate is fully site. If this is not possible for any particular reason, the completed in advance and enclosed with the instrument.
  • Page 16: Warranty

    The transport of the instrument to us and return transport during this period shall be at the customer’s risk. 4.8 Declaration of Conformity The current Declaration of Conformity can be found on our website: http://www.pfmmedical.com/downloads pfm Forceps EWF 600 Rev. 2022-04-01...
  • Page 17: Part 5 - Accessories

    1 pair Tripod forceps Spare tips box REF 600660 REF 600670 ▸ For convenient storage of the ▸ Box for storing forceps tips ▸ forceps during operation. Capacity for 5 pairs of spare tips pfm Forceps EWF 600 Rev. 2022-04-01...
  • Page 18: Part 6 - Disposal Of The Pfm Forceps Ewf 600 When Put Out Of Use

    Substances in Electrical and Electronic Equipment). At pfm medical ag, we feel responsible for our products, from the initial concept through to their disposal, and we regard this as an opportunity for us to make our contribution to the conservation of resources. As the manufacturer, we assume responsibility for the disposal of the decommissioned instrument on your behalf.
  • Page 19 Notes For your notes pfm Forceps EWF 600 Rev. 2022-04-01...
  • Page 20 Our Customer Solutions Team will be happy to advise you. service@pfmmedical.com +49 (0)2236 9641-220 +49 (0)2236 9641-51 pfm medical ag Certified according to Wankelstrasse 60 DIN EN ISO 13485 50996 Cologne Germany www.pfmmedical.com – For more information about pfm medical ag products IFU200600/Rev.2022-04-01...
