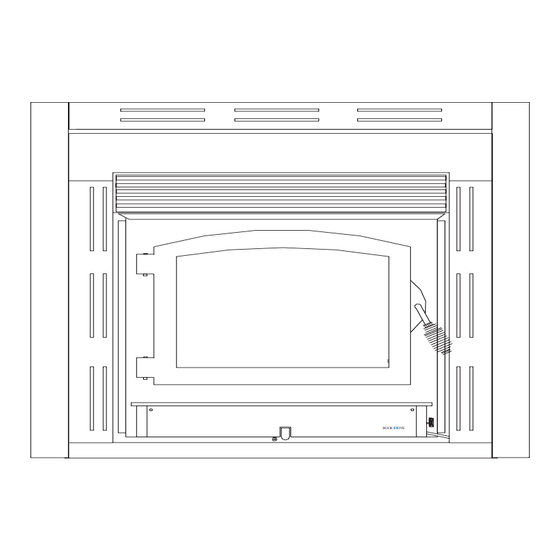

BuckMaster 51ZC Instruction Manual

Zero clearance cabinet for use with fireplace models 51, t-51, 74, t-74 and 21
Hide thumbs Also See for 51ZC:
Table of Contents

Advertisement

Quick Links

Download this manual
FOR USE WITH FIREPLACE MODELS 51, T-51, 74, T-74 and 21
ONLY. MAY BE INSTALLED IN RESIDENTIAL AND MOBILE
HOME.
Contact your insurance company for coverage and installation inspection.
Do not attempt to build a fire in this product. It has been designed and safety tested for use
only with Models 51,T-51,74,T-74 manufactured by NEW BUCK CORPORATION.
Read and follow the installation and operating instructions for this model.
PREPARATIONS
OPERATION
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
FOR YOUR SAFETY, FOLLOW THE
CONTACT THE AUTHORITY HAVE JURISDICTION ( SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION BUREAU,
ect.) SHOULD BE CONSULTED BEFORE INSTALLATION TO DETERMINE THE
NEED TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY:
MANUFACTURED BY NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE,
SPRUCE PINE, N.C. 28777
www.buckstove.com
MODEL 51ZC / MODEL 21ZC
ZERO CLEARANCE CABINET
WARNING
FEATURES
MAINTENANCE
SAFETY NOTICE
ITS/WARNOCK HERSEY, MIDDLETON, WI
BUCK STOVE
INSTALLATION
SAFETY
INSTALLATION
Revised January 2013
INSTRUCTIONS.

Advertisement

Table of Contents
loading

Related Manuals for BuckMaster 51ZC

Summary of Contents for BuckMaster 51ZC

  • Page 1 MODEL 51ZC / MODEL 21ZC ZERO CLEARANCE CABINET FOR USE WITH FIREPLACE MODELS 51, T-51, 74, T-74 and 21 ONLY. MAY BE INSTALLED IN RESIDENTIAL AND MOBILE HOME. Contact your insurance company for coverage and installation inspection. BUCK STOVE WARNING Do not attempt to build a fire in this product.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION I: Residential Installation………………………………………………………..2 Chimney Location ………………………………………………………………………….4 Floor Protection .…………………………………………………………………………….6 Framing Construction Installation……………………………………………………….….7 Corner Location Framing …………………………………………………………………...10 SECTION II: Mobile Home Installation ………………………………………………….13 Framing Construction Installation ………………………………………………………...14 Alternate Floor Protector . ………………………………………………………………….17 Safety Precaution ..………………………………………………………………………….18 Preventive Maintenance …………………………………………………………………..19 …..

  • Page 4: Section I: Residential Installation

    For operation and use of electrical assemblies, see stoves Owners Manual for use of electrical assemblies “USE SOLID WOOD FUEL ONLY.”. The Zero-Clearance Cabinet and the Models 51, T-51, 74, and T-74 Installed (hereafter referred to as the 51ZC) is designed for installation in a family dwelling, where minimum clearance is desired. Page 2...
  • Page 5 (B) Be careful not to damage the unit in handling and unpacking component parts and accessories. (C) Model 51zc Cabinet, use only 6"listed 2100º UL 103 HT TYPE Chimney with the 51zc Cabinet (ONLY AFTER) one of the follwing new Buck Corparation Stoves 51, T-51, 74, T-74, has been installed into the 51ZC Cabinet.
  • Page 6 SELECTING A CHIMNEY INSTALLATION AND LOCATION There are two basic types of chimney installation possible with the 51ZC; straight up through a ceiling, or a chase installation, either outside or inside. These are normally used as follows: CHIMNEY CAP CHIMNEY CAP...
  • Page 7 B. Exterior Chase Installation: (See Figure 4). A chase is an enclosure built specifically to house a chimney. The interior of a chase is open from Model 51ZC to the roof, eliminating the need to cut through ceilings and the roof. Normally, a chase is built through the wall, and the Model 51ZC is located in the bottom of the chase, with the front of the unit flush with the interior wall.

  • Page 8: Floor Protection

    Floor Protection: or Hearth Protector Floor protection must be 3/8” minimum thickness non-combustible material or equivalent. How to use alternate materials and how to calculate equivalent thickness. An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure: 1.

  • Page 9: Framing Construction Installation

    Good planning is essential for a satisfactory installation, therefore, at this point you should have decided where the 51ZC is to be located and the route the chimney will follow to the roof-straight up or chase. If you cannot decide the best route, contact your Dealer for assistance with the planning.
  • Page 10 DIMENSION FIGURE 6 The base for the Model 51ZC must be level with or slightly higher than the “finished” hearth height di- mension (A) Figure 6. Framing must be accomplished after the Model 51ZC is set in place. The chimney can be installed after framing, but installation is considerably more difficult and in some cases, impossible.
  • Page 11 FIGURE 7-B 2. Set the Model 51ZC unit in place and attach the safety shield to the unit as shown in (Page 8 Figure 7-A) and Figure 7-B. You must use a non-combustible material or a UL listed floor protector R-Value 0.6 .(See Page 6) A minimum of 16"...

  • Page 12: Corner Location Framing

    OF ZC CABINET (WITHOUT HOOD TRIM ATTACHED). NOTE: A DOUBLE HEADER MUST BE USED ON A LOAD BEARING WALL. FIGURE 9 NOTE: No floor protector is needed directly under the Model 51ZC Cabinet, only the hearth protector is needed. WARNING: Install the hearth protector only as specified.
  • Page 13 4. A sheet metal safety shield is placed 3" under the cabinet. It must extend out under the floor protec- tor. 5. Now you are ready to install the chimney system for the 51ZC. If you are building an outside chase, follow approved Chimney Manufacturer’s instructions. If you are penetrating a ceiling, install the chimney as follows: a.
  • Page 14 Install the chimney cap and storm collar. 7. The 51ZC cabinet is now ready for framing as follows: a. Frame the 51ZC using 2" x 4" studs or local building code framing. Some minor framing restric- tions are required.
  • Page 15 “DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS.” The Zero-Clearance Cabinet and the with either Models 51, T-51, 74 models, and T-74 (here after re- ferred to as the 51ZC) is designed for installation in a family dwelling, where minimum clearance is desired.

  • Page 16: Framing Construction Installation

    (See Page 6, Figure 5, and Page 7, Figure 6, also Figure 12) to make sure that these clearance restrictions are met. It is much wiser to place your 51ZC correctly at the start of the installation than to be forced to relocate it after much of the work is done.
  • Page 17 Obtain the Listed and Approved Chimney Installation instructions and follow exactly. a) Obtain the starter section of pipe and install on the 51ZC cabinet. It may be necessary to crimp the inside of the starter pipe to ease installation into the 51ZC cabinet.

  • Page 18: Alternate Floor Protector

    NOTE: Follow building and fire codes for each individual state. CAUTION: Refer to chim- ney manufacturer’s instruc- Optional TOPPER tions for assembly and disas- Fire Code Sheet Rock sembly of chimney parts. Be And Metal Fire Stop STORM COLLAR sure to follow chimney instructions for proper clear- ROOF FLASHING ances to combustibles and...
  • Page 19 11. The 51ZC and Model 51,T51,74 or T-74 fireplace are now ready for use. Refer to the stove owners manual for operation, safety, and chimney maintenance. Refer to the back of this manual for 51ZC warranty registration information.

  • Page 20: Safety Precaution

    CLEANING THE UNIT A. The unit should be lightly sanded with fine sandpaper or steel wool, then repainted or touched up with high temperature black paint. B. If the unit is located in a moist or damp location, check thoroughly for signs of condensation during times when the unit is not in use.

  • Page 21: Preventive Maintenance

    PREVENTIVE MAINTENANCE/ SAFETY PRECAUTIONS CHIMNEY A. The chimney should be cleaned as necessary to remove creosote, soot, leaves, bird’s nests, etc. CREOSOTE-FORMATION AND NEED FOR REMOVAL When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote.
  • Page 22 MODEL 51ZC CABINET At some point you may need to remove your Model 51, T-51, 74,T-74 room heater from the Model 51ZC cabinet, if so follow these instruction exactly. Remember if the room heater has been in use allow time for cooling.
  • Page 23 (FRONT STOVE STOPS) FIGURE 17 MODEL 51ZC CABINET CUTOUT NOTE: Before pulling the room heater out of the ZC cabinet you may need to place a drop cloth where the heater is to be placed to protect your floor covering.

  • Page 24: Cabinet Identification

    6. Replace the Right Side Trim using the three (3) 5/16 screws. " 7. Then replace the Top Front Trim using the seven (7) 5/16 screws. " MODELS 51,T-51,74 or T-74 ROOM HEATERS AND MODEL 51ZC CABINET IDENTIFICATION (See Figures 16 & 17 For Additional Identification) FIGURE 18 (24) (18)

  • Page 25: Warranty

    NEW BUCK CORPORATION (NBC) "LIMITED WARRANTY" FOR THE BUCK STOVE PLEASE READ THIS WARRANTY CAREFULLY PRODUCTS COVERED This warranty covers the New Buck Stove heating unit, so long as it is owned by the original purchaser, including optional and standard accessories purchased at the same time, subject to terms, limitations, and conditions herein set out.
  • Page 27 (Last) (First) Address _____________________________________________________________________ City ________________________________________ State ________ Zip ________________ CUSTOMER EMAIL::_________________________________________________________ MODEL 51ZC / 74ZC - Serial Number ___________________________________________ Date of Installation: Day ________________ Month ________________ Year _____________ Installer’s Name _______________________________________________________________ Installer’s Certification Number __________________________________________________ Dealer’s Name ________________________________________________________________ City ________________________________________ State ________ Zip ________________...
  • Page 28 MODEL 21 NON-CATALYTIC UNIT MODEL 21 MODEL 21 NON-CAT NON-CAT Buck St ove Buck St ove Buck Stove FIREPLACE INSERT & FREESTANDING FEATURES PREPARATIONS INSTALLATION OPERATION MAINTENANCE SAFETY SAFETY NOTICE IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
  • Page 30 TABLE OF CONTENTS Important Instructions............................2 Stove Parts Identification............................. 3 SECTION I: Introduction ............................ 4 SECTION II: Masonry Insert Installation ......................5 Floor Protection ..............................6 Masonry Insert Installation options ........................7 Mounting Trim Panels ............................9 SECTION III: Pre-Fab Insert Installation......................12 SECTION IV: Residential Freestanding Installation ..................

  • Page 31: Important Instructions

    INSTALLATION AND OPERATION READ THIS FIRST IMPORTANT INSTRUCTIONS WARNING THIS UNIT GENERATES A LOT OF HEAT, SO TREAT UNIT WITH CARE. HOT WHILE IN OPERATION! KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS.”DO NOT USE CHEMICALS OR FLUIDS TO START FIRE.
  • Page 32 EPA COMPLIANCE STATUS This manual describes installation and operation of the New Buck Corporation Model 21 wood heater. This heater meet the U.S. Environmental Protection Agency’s Emission limits for wood heaters sold after July 1, 1992. Under specific test conditions, this heater has been shown to deliver heat at rates ranging from approximately 41,500 BTU/hr for the Model 21.

  • Page 33: Section I: Introduction

    CAUTION YOUR CHIMNEY OR FLUE MUST BE CORRECTLY SIZED. A CHIMNEY OR FLUE THAT IS TOO SMALL OR LARGE IN DIAMETER, OR TOO SHORT, CAN CAUSE YOUR STOVE TO SPILL SMOKE WHEN DOOR IS OPENED. SECTION I INTRODUCTION Your new MODEL 21 is a non-catalytic unit designed to meet the most stringent emissions standards without the use of a catalytic combustor.

  • Page 34: Section Ii: Masonry Insert Installation

    SECTION II MASONRY INSERT INSTALLATION The Model 21 may be installed using an all masonry fireplace built in accordance with the Uniform Building Code and National Fire Protection Association (NFPA). The first step in this type of installation is to determine the acceptability of fireplace and chimney for use with a woodstove.

  • Page 35: Floor Protection

    Floor Protection: When installing freestanding heater, a floor protector must be use. Floor protector must be 3/8” minimum thickness non-combustible material or equivalent. How to use alternate materials and how to calculate equivalent thickness An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure: 1.

  • Page 36: Masonry Insert Installation Options

    POSSIBLE TOOLS NEEDED FOR INSTALLATION If you decide to install your own stove, there are several hand tools you may need to do the job. If you do not already have them, they are readily available at most hardware stores. Caulking gun Large adjustable wrench (may not be needed) Drop cloths or newspapers...
  • Page 37 SAFETY NOTICE: If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. OPTION (A) AIRTIGHT INSU- LATED CLEAN- STARTER PIPE SEAL TRIM PANELS AND UNDER...

  • Page 38: Mounting Trim Panels

    INSTALLATION PROCEDURE (Use a Listed Direct or Positive Connect)(See Page 6). POSITIONING THE HEATER NOTE: If the three suggested installations have been chosen, certain steps must be followed when installing heater into a masonry fireplace. When positioning heater, the following conditions MUST be met! (See Figure 2).
  • Page 39 10. If direct connect or positive connect kit is not used, follow instructions in mounting trim panels, steps 1-4c on page 8. 11. Mount top trim panel by drilling mounting holes in center of trim panel mounting brackets, with top end side of top panel overlapping side panel.
  • Page 40 CAUTION THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED HIGH TEMPERATURE PAINT THAT CURES DURING THE FIRST TWO OR THREE FIRINGS. YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN ODOR OF BURNING PAINT WHEN YOU BUILD THE FIRST FIRES. THIS IS NORMAL AND IS NOT A CAUSE FOR ALARM.

  • Page 41: Section Iii: Pre-Fab Insert Installation

    SECTION III PRE-FAB INSERT INSTALLATION The Model 21 has been tested with the following: Heatilator Security Tempco Preway Marco Woodside Majestic NOTE: The Model 21 may be installed in any of the pre-fabricated fireplaces listed above if they are big enough to accept heater. NOTE: A FULL CHIMNEY LINER IS REQUIRED IN A ZERO CLEARANCE OR PRE - FABRICATED FIREPLACE.

  • Page 42: Section Iv: Residential Freestanding Installation

    SECTION IV RESIDENTIAL FREESTANDING INSTALLATION TOOLS FOR INSTALLATION Drop cloth, 3/32" Metal drill bit, 5/16" magnetic socket chuck adapter, 5/16" wrench (box or socket) or adjustable wrench, Jigsaw with masonry, metal and wood blades WARNING: DO NOT INSTALL IN A SLEEPING ROOM PREPARING THE STOVE FOR INSTALLATION 1.
  • Page 43 3. Place unit on pad making sure minimumum clearance specifications are met. 4. Lightly mark with a pencil the location of pedestal on protective pad. 5. Next, remove the four (4) screws holding heater to stand. Position heater out of the way of installation area.

  • Page 44: Floor Protection

    Floor Protection: Floor protection must be 3/8” minimum thickness non-combustible material or equivalent. How to use alternate materials and how to calculate equivalent thickness An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure: 1.
  • Page 45 PREPARING THE ROOM HEATER LOCATION 1. Select an installation location that will give the best airflow from the front of the heater to the remainder of the home. 2. Place the protective floor pad in position. 3. Place unit on pad making sure minimum clearance specifications are met. 4.
  • Page 46 A. Vertical exit using (6" Single Wall minimum 24 ga. blued or black pipe and any listed 2100° UL 103 HT. TYPE Chimney) Without optional close clearance shield and pipe shield Model 21 minimum clearance to combustibles Figure 7 Figure 8 BACK WALL BACK WALL CONTEMPORARY CAP...
  • Page 47 HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential Installation B. Vertical Wall Exit using (6" Single Wall minimum 24 ga. blued or black pipe with elbow and any Listed 2100° UL HT chimney and Listed 2100° UL HT. T-Box assembly). Without optional close clearance shields and pipe shield.
  • Page 48 B. Vertical wall exit using (6" Single Wall minimum 24 ga. blued or black pipe with elbow and any listed 2100° UL 103 HT. TYPE Chimney and Listed 2100° UL HT. T-Box assembly). Without optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles.
  • Page 49 HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential and Mobile Home Installation C. Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT chimney). Without close clearance shield and pipe shield. NOTE: For minimum clearances (See Page 20, Figure 11). 1.
  • Page 50 C. Vertical exit using (6" DVL Close Clearance pipe and any listed 2100° UL 103 HT. TYPE Chimney). Without optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. Figure 11 Figure 12 BACK WALL BACK WALL CONTEMPORARY CAP LISTED 2100°...
  • Page 51 HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential and Mobile Home Installation D. Vertical Wall Exit using (6" DVL Close Clearance Pipe and Elbow and any Listed 2100° UL HT chimney and Listed 2100° UL HT T-Box assembly). Without optional close clearance shield and pipe shield. NOTE: For minimum clearances (See Page 22, Figure 13).
  • Page 52 D. Vertical wall exit using (6" DVL Close Clearance pipe with elbow) and any listed 2100° UL 103 HT. TYPE Chimney and Listed 2100° UL HT T-Box assembly). Without optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. BACK WALL BACK WALL Figure 13...
  • Page 53 HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential and Mobile Home Installation E. Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT chimney). With optional close clearance shield and pipe shield. NOTE: For installation of optional close clearance shields and pipe shield (See Page 33).
  • Page 54 E. Vertical exit using (6" DVL Close Clearance pipe and any listed 2100° UL 103 HT. TYPE Chimney). With optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. Figure 15 Figure 16 BACK WALL BACK WALL CONTEMPORARY CAP LISTED 2100°...
  • Page 55 HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential and Mobile Home Installation F. Vertical Wall Exit using (6" DVL Close Clearance Pipe and Elbow and any Listed 2100° UL HT chimney and Listed 2100° UL HT T-Box assembly). With optional close clearance shield and pipe shield NOTE: For installation of optional close clearance shields and pipe shield (See Page 33).
  • Page 56 F. Vertical wall exit using (6" DVL Close Clearance pipe with elbow and any listed 2100° UL 103 HT. TYPE Chimney and Listed 2100° UL HT T-Box assembly). With optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. BACK WALL BACK WALL Figure 17...
  • Page 57 Ceiling Exit (Using Close Clearance listed chimney) 1. Suspend a plumb bob from ceiling above unit so that weight is hanging in center of flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where string is suspended to locate center of chimney hole.
  • Page 58 FINAL CHECK 1. Recheck specified clearances. 2. Remove all foreign material from firebox area. 3. Open primary air draft. 4. Plug power cord into a 115V AC outlet when using with optional motor. Do not run cord under unit or in high traffic areas. 5.

  • Page 59: Alcove Installation Clearances

    SECTION V ALCOVE INSTALLATION AND CLEARANCES Select an installation location that will give the best airflow from the front of the heater to the remainder of the home PREPARING THE STOVE FOR INSTALLATION 1. Inspect the unit for any obvious physical damage. 2.
  • Page 60 Floor Protection: Floor protection must be 3/8” minimum thickness non-combustible material or equivalent. How to use alternate materials and how to calculate equivalent thickness An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure: 1.
  • Page 61 HOW TO LOCATE CHIMNEY EXIT AND INSTALL Alcove Installation Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT chimney). With optional close clearance shield and pipe shield. NOTE: For installation of optional close clearance shields and pipe shield (See Page 33). NOTE: For minimum clearances (See Page 32, Figure 22).
  • Page 62 ALCOVE INSTALLATION AND CLEARANCES Vertical exit using (6" DVL Close Clearance pipe and any listed 2100° UL 103 HT. TYPE Chimney). With optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. Figure 22 Figure 23 BACK WALL BACK WALL BACK WALL CONTEMPORARY CAP...

  • Page 63: Installation Of Close Clearance Shields

    Installation of (Optional) Close Clearance Shields and Pipe Shield 1. Taking close clearance side shields, hold up to side of stove leaving 1/4" gap between shield and top of stove. 2. Make reference mark in center of pre-punched hole in top & bottom of shield. Drill two (2) 3/32"...
  • Page 64 FINAL CHECK 1. Recheck specified clearances. 2. Remove all foreign material from firebox area. 3. Open primary air draft. 4. Plug power cord into a 115V AC outlet when using with optional motor. Do not run cord under unit or in high traffic areas. 5.

  • Page 65: Section Vi: Operation

    SECTION VI OPERATION This section of the manual is to help you get the maximum efficiency and maximum smoke (particulate) reduction from your heater. If you should experience any difficulty or have any questions concerning your heater, contact your dealer for assistance. The manufacturer recommends that for maximum performance burn dried natural seasoned hard wood.
  • Page 66 OPTIONAL MOTOR ASSEMBLY KIT INSTALLATION INSTRUCTIONS STEP 1: REMOVE ACCESS DOOR PANEL LOCATED AT BOTTOM OF UNIT. YOUR MOTOR ASSEMBLY COMES WITH A BRACKET ALREADY AT- TACHED TO THE MOTOR. ALIGN THE HOLES IN MOTOR BRACKET WITH HOLES IN MOTOR MOUNT. SECURE BRACKET WITH TWO ½” HEX HEAD SCREWS PROVIDED.
  • Page 67 STEP 1 MOTOR BRACKET MODEL 26 MODEL 21 MODEL 21 NON-CAT RIGHT SIDE NON-CAT HEARTH SUPPORT NON-CAT Buck Buck St ove St ove Buck Buck THERMOSTAT St ove St ove MOTOR WITH BRACKET ACCESS DOOR PANEL STEP 3 STEP 2 INDICATOR LABEL STRAIN RELIEF...
  • Page 68 OPTIONAL MOTOR KIT ASSEMBLY PARTS 1 - MOTOR (NON-CAT) 1 - MOTOR BRACKET 6 - #10 - 16 X 1/2” HEX HEAD 1 - #6 - 32 X 1/2” SLOT HEAD SCREW 5 - 1/8” X 1” BLACK FLAT GASKET WITH ADHESIVE 1 - JUMPER WIRE 4”...
  • Page 69 SECTION VII MAINTENANCE BRICK LAYOUT Page 40...

  • Page 70: Door Gasket Replacement

    MAINTENANCE DOOR GASKET REPLACEMENT (COLD HEATER) To replace deteriorated gaskets, following steps must be taken to ensure proper installation of gaskets. 1. Obtain proper gaskets and silicone glue from your local dealer. 2. Using pliers, remove any worn and deteriorated gaskets. 3.

  • Page 71: Check Chimney

    MAINTENANCE CHECK CHIMNEY A. Chimney should be inspected twice a year. B. The chimney should be cleaned as necessary to remove creosote, soot, leaves, birds’ nests, etc. Before sweeping the chimney a few steps must be done. 1. Open feed door and remove the 1st Secondary Air Tube by removing cotter pin up in right side facing stove.

  • Page 72: Section Viii: Wood Heater Safety

    SECTION VIII WOOD HEATER SAFETY Certain safety hazards are inherent in any wood heater installation. You should be aware of these so that a safe and proper installation can be made. 1. FAULTY CHIMNEY: An older masonry chimney should be thoroughly checked to be sure there are no holes or weak spots which could allow sparks or hot gases to escape.

  • Page 73: Replacement Parts

    REPLACEMENT PARTS FOR MODEL 21 PAGE 1 NOTE: For replacement parts use only manufacturer’s specified parts. Description Quantity Part No. 1. Door Gold PC212400-G 2. Door Black PC212400-B 3. Door Pewter PC212400-P 4. Door Handle PO210092 5. Retrofit Door Bushing PO210102 6.
  • Page 74 REPLACEMENT PARTS FOR MODEL 21 PAGE 2 NOTE: For replacement parts use only manufacturer’s specified parts. Description Quantity Part No. 21. Primary Air Plate MF201034 22. Screws for Primary Air Plate to Air Control Rod Hex/Washer Slot Machine Screw 10-32 X 1/4” PH103214HWHSM 23.

  • Page 75: Section Ix: Troubleshooting

    SECTION IX TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Sluggish Heater Obstruction in chimney Check for and remove obstruction Improperly sealed trim kit or (a) Check trim kit gasketing direct connect kit seal to fireplace and gasket as necessary to seal unit. Gasket under front bottom of stove if needed.
  • Page 76 PROBLEM POSSIBLE CAUSE SOLUTION High fuel consumption Improper regulation of draft (a) Close inlet air control as or inlet air much as possible to maintain desired heat output (b) Check gaskets, reinstall fiberglass gasketing round doors and glass as necessary Improper door fitting Check door gasket, check adjustment of door latch...

  • Page 77: Limited Warranty

    NEW BUCK CORPORATION (NBC) "LIMITED WARRANTY" FOR THE BUCK STOVE PLEASE READ THIS WARRANTY CAREFULLY PRODUCTS COVERED This warranty covers the new Buck Stove heating unit, so long as it is owned by the original purchaser, including optional and standard accessories purchased at the same time, subject to terms, limitations and conditions herein set out.
  • Page 78 If for any reason you are dissatisfied with suggested procedures, you may contact us in writing New Buck Corporation Customer Service Department P. O. Box 69 Spruce Pine, NC 28777 Email: info@buckstove.com CONDITIONS AND EXCLUSIONS (A) Replacement of parts may be in the form of new or fully reconditioned parts, at NBC's option.

This manual is also suitable for:

21zc

Table of Contents
