Pioneer DC-888Z Operating Instructions Manual

Operating
Instructions

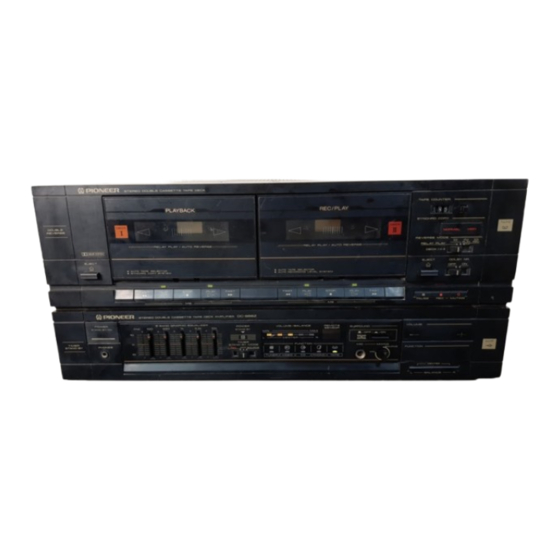

STEREO DOUBLE CASSETTE TAPE DECK AMPLIFIER
DC-S8sZz
FM/AM DIGITAL SYNTHESIZER TUNER
TX-8882Z/T X-8882.L.
AM/FM STEREO TUNER
TX=77TIZITKX"7IFZL
STEREO TURNTABLE
PL-888Z/PL-777Z
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will
know how to operate your modei properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.
In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown in
the explanatory drawings. However, the method of connect-
ing and operating the unit is the game.
IMPORTANT NOTICE
[For U.S. and Canadian models]
The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed
warranty card and keep it in a secure area. This is for your
security.
[For Canadian model]
CAUTION: to prevent ELECTRIC SHOCK DO
NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
ATTENTION: pour prevenin Les cHocs
ELECTRIQUES NE PAS UTILISER CETTE FICHE POLARISEE
AVEC UN PROLONGATEUR UNE PRISE DE COURANT OU
UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES
PEUVENT ETRE INSEREES A FOND SANS EN LAISSER
AUCUNE PARTIE A DECOUVERT.
Features
Checking the accessories
Initial turntable set-up
Rear panel facilities
Connections .......
Antenna connections ...
Front panel facilities
Remote control unit
How to handle cassette tapes
Graphic equalizer controls
Basic operations
CONTENTS or
LINE VOLTAGE SELECTOR SWITCH
Only multi-voltage models are provided with this
switch. U.S., Canadian, European, U.K., and Austra-
lian models are not provided with this switch.
Mains voltages in Saudi Arabia are 127 V and 220 V only.
Never use this model with 110 V setting in Saudi Arabia.
Before your model is shipped from the factory, the switch is
set to the power requirements of the destination; neverthe-
less, you should check that it is set properly before plugging
the power cord into the AC outlet.
1. Disconnect the power cord.
2. Use a medium-size screwdriver.
3. Insert the screwdriver into the groove on the voltage
selector and adjust to the voltage value of your area so that the
tip of the arrow point.
Screwdriver he
"This product is manufactured to comply with t e radio
interference requirements of FEC Directive TR/S8S/EEC
and 82/499/EEC." a @
WARNING: to prevent FIRE OR SHOCK HAZ-
Relay playback 16
Music search ...
Recording muting
Copying tapes .
Mic mixing for singing along
with recorded accompaniment 2
Recording and playback using the audio timer
Surround system .
Maintenance
Troubleshooting
Specifications ..
@ PIONEER'
The future of sound and vision.
