INSTRUCTION MANUAL
THERMOCOUPLE INPUT MODULE, 4 points
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
■ PACKAGE INCLUDES:
Thermocouple input module (body + 4 CJC sensors) ........(1)
Terminating resistor (110 Ω, 0.5 W) ...................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ NONINCENDIVE APPROVAL OPTION
• This equipment is suitable for use in Class I, Division 2,
Groups A, B, C, D or Non-Hazardous Locations only.
• WARNING! – Explosion Hazard –
Substitution of any component may impair suitability for
Class I, Division 2.
• WARNING! – Explosion Hazard –
DO NOT disconnect while the circuit is live or unless the
area is known to be free of ignitable concentrations.
• Temperature Code of this equipment is T5 and the Maxi-
mum Ambient Temperature is 55°C (Surrounding Tem-
perature inside the fire enclosure).
■ CONFORMITY WITH UL APPROVAL
• This equipment is suitable for use in Installation Catego-
ry II and in a Pollution Degree 2 environment.
• Altitude up to 2000 meters.
• This equipment must be mounted inside a suitable fire
enclosure.
• This equipment is to be supplied by a Class 2 power sup-
ply.
■ CONFORMITY WITH EU DIRECTIVES
• The equipment must be mounted inside the instrument
panel of a metal enclosure.
• The actual installation environments such as panel con-
figurations, connected devices, connected wires, may af-
fect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure the CE conform-
ity.
• Install lightning surge protectors for those wires connect-
ed to remote locations. Choose a surge protector with its
maximum surge voltage 40V or less between lines. Rec-
ommended model: MDP-D24.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
(CC-Link V.1.10)
MODEL
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, approx. 90mA
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
• DO NOT set the switches on the module while the power
is supplied. The switches are used only for maintenance
without the power.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
R7C-TS4
EM-7801-B Rev.10 P. 1 / 10

Advertisement

Table of Contents
loading

Summary of Contents for M-system R7C-TS4

  • Page 1 INSTRUCTION MANUAL THERMOCOUPLE INPUT MODULE, 4 points R7C-TS4 MODEL (CC-Link V.1.10) ■ POWER INPUT RATING & OPERATIONAL RANGE BEFORE USE ..• Locate the power input rating marked on the product and confirm its operational range as indicated below: Thank you for choosing us. Before use, please check con- 24V DC rating: 24V ±10%, approx.

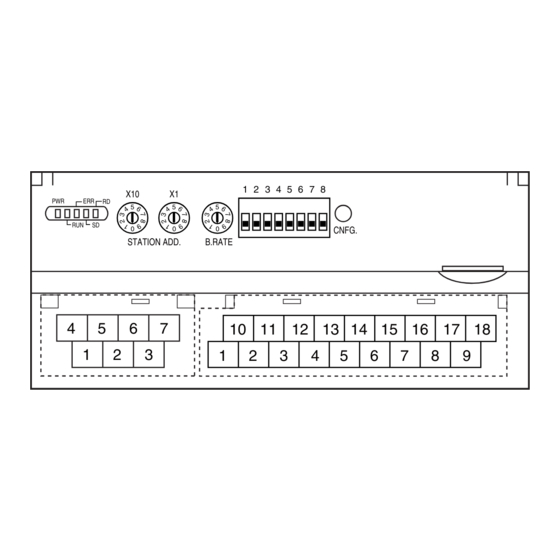

  • Page 2: Component Identification

    R7C-TS4 COMPONENT IDENTIFICATION • Conversion Rate (SW1-3) • Burnout (SW1-4) SW1-3 CONVERSION RATE SW1-4 BURNOUT 250 msec. (*) Upscale (*) 500 msec. Downscale CNFG. STATION ADD. B.RATE • Thermocouple Type (SW1-5, 1-6, 1-7, 1-8) SW1-5 SW1-6 SW1-7 SW1-8 THERMOCOUPLE TYPE...
  • Page 3: Indicator Led

    R7C-TS4 INDICATOR LED ■ STATUS INDICATOR LED SD * STATUS * Communicates normally with occasional CRC errors due to noise interference. Communicates normally but the Baud Rate and/or Station Address switches failed. ERR LED blinks approximately in 0.5 seconds intervals.
  • Page 4: Terminal Connections

    R7C-TS4 INPUT 0 +IN0 TERMINAL CONNECTIONS –IN0 +CJ0 Connect the unit as in the diagram below. –CJ0 ■ EXTERNAL DIMENSIONS unit: mm (inch) INPUT 1 +IN1 115 (4.53) 17 (.66) 54 (2.13) 24V DC –IN1 +CJ1 –CJ1 DIN RAIL INPUT 2...
  • Page 5: Communication Cable Connections

    R7C-TS4 COMMUNICATION CABLE CONNECTIONS Master Unit Remote Unit Remote Unit TERMINATOR TERMINATOR blue white yellow Be sure to connect the terminating resistor included in the product package to the unit at both ends of communication line. The terminator must be connected across DA and DB.
  • Page 6: Wiring Instructions

    R7C-TS4 I/O DATA DESCRIPTIONS ANALOG INPUT 16-bit binary data Negative values represented in 2’s complements DISCRETE I/O Input 0 (Output 0) Input 1 (Output 1) Input 2 (Output 2) 8 points Input 3 (Output 3) 16 points Input 7 (Output 7)
  • Page 7 R7C-TS4 CONFORMITY WITH CE MARKING ■ CE MARKING CE marking requires to integrate safety regulations existed in each country in EU territory and to secure smooth distribution of products of which safety is guaranteed. It is mandatory by law that products distributed and sold in EU territory to have CE mark which shows that the product conforms with the requirements of EU Directive.
  • Page 8 R7C-TS4 • Points of cautions applicable when installing the R7C Series Install the R7C Series inside Keep the opening for a control panel. ventilation as small as posible. Attachment part of earth clamp should be fixed with screw in conduction with the Attach an electro- internal panel plate.
  • Page 9 R7C-TS4 ■ WARNINGS AND CAUTIONS WHEN LAYING CABLES Signal cables connected to the R7C contain high-frequency components. Since these cables has the same effect as an antenna, they emit these high-frequency components to the external space as noise or overlaps noise from the external space on them- selves.
  • Page 10 R7C-TS4 • Points of cautions applicable when wiring the R7C Series Keep the wires away from each other at both ends of the filter. Noise Filter Shielded Cable Earth Clamp To external apparatus To connect with apparatuses outside Remove a part of the shielded...
