Product Overview

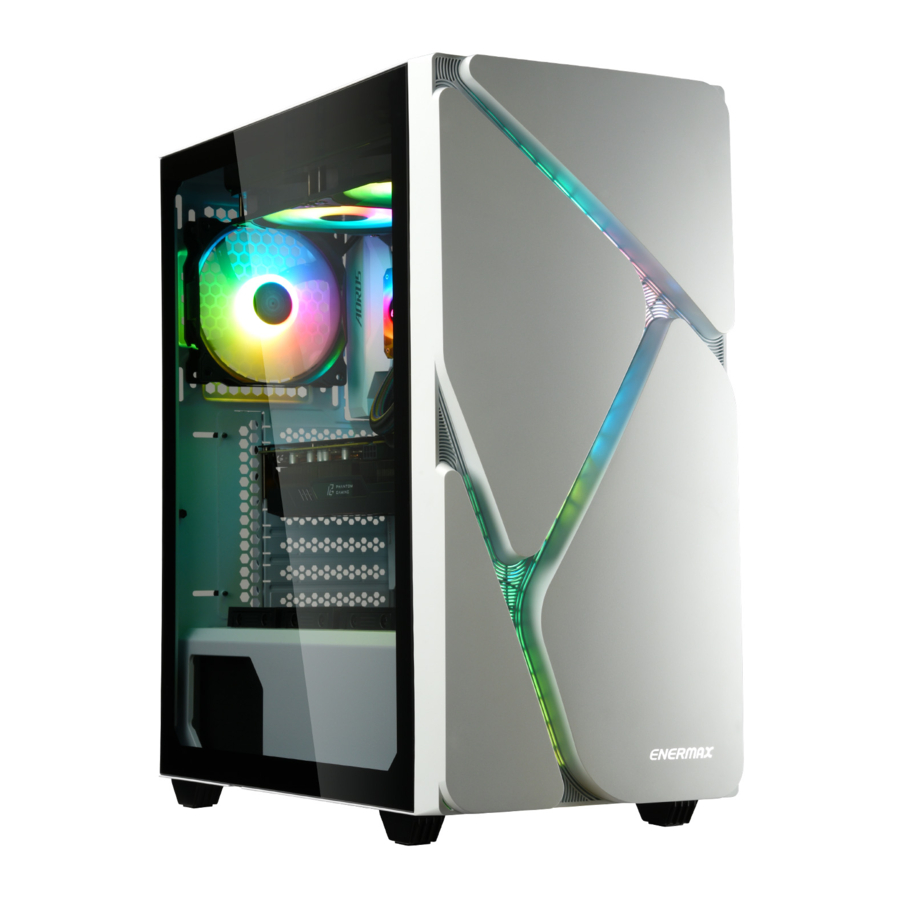

Product View
Specs
| Model Name | ECA-MS30 series | |
| Dimensions | D407 x W215 x H460mm | |
| Material | SPCC, T=0.5mm | |
| M/B Type | ATX, Micro ATX, Mini ATX | |
| I/O | USB3.0 x 2, USB2.0 x 2, HD Audio, Lighting control (reset button) | |
| Drive Bays | 3.5" | 2 |
| 2.5" | 5 | |
| Expansion Slots | 7 | |
| Fan Slots | Front | 2 x 140mm / 3 x 120mm |
| Top | 2 x 140mm / 2 x 120mm | |
| Rear | 1 x 140mm / 1 x 120mm | |
| Liquid Cooling | Front | 360mm / 280mm / 240mm radiator |
| Top | 280mm / 240mm radiator | |
| Rear | 140mm / 120mm radiator | |
| PSU | 160mm | |
| Clearance | Suggested VGA Card Length: 357mm | |
| Suggested CPU Cooler Height: 175mm | ||
*Product specifications are subject to change without notice.
*Options vary by countries or regions.
*For detailed information please visit our website at www.enermax.com
Installation Guide
How to Remove Both Side Panels
(*Hold the lower edge of glass panel to avoid falling when removing)
How to Install the Motherboard
How to Install Power Supply
- Remove the HDD cage to create extra space for cable management
![How to Install Power Supply - Step 2]( "ENERMAX - MarbleShell MS30 - How to Install Power Supply - Step 2")
- Move the HDD cage forward to create extra space for cable management
![How to Install Power Supply - Step 3]( "ENERMAX - MarbleShell MS30 - How to Install Power Supply - Step 3")
How to Install Internal 2.5" & 3.5" Device
How to Install Add-on Cards
How to Install the Radiators
Front: 360mm / 280mm / 240mm
Top: 280mm / 240mm
Rear: 140mm / 120mm
How to Install System Fans
RGB Control Hub
(
ARGB Hub Max. Current: 5A Rated Current of Pre-installed Fan: 0.55A (pc)
*Options vary by countries or regions)
**Convert Reset button to RGB control button
- Connect the case's Reset cable to the Reset header on the ARGB hub.
- The reset function will be disabled; the reset button will become RGB control button. Users may use the button to select 13x pre-set lighting modes.
- User may switch the RGB sync controlled by M/B or case through long pressing the RGB control button for 2~3 seconds.
Suggested Height of CPU Cooler and Length of VGA card
Cable Connection Description
Notice: On some motherboards, the connectors might not be exactly the same as the drawings above, please check with your motherboard manual before installing
If you have any question or need support, please contact your reseller or nearest ENERMAX subsidiary/agent or ENERMAX headquarter service center.
©2019 ENERMAX TECHNOLOGY CORPORATION. All right reserved.
Specifications are subject to change without prior notice.
Some trademarks may be claimed as the property of others.
