Di-Acro ACROTECH 2 TAB NOTCHER Instruction Manual

Hide thumbs Also See for ACROTECH 2 TAB NOTCHER:

Advertisement

Table of Contents

DI-ACRO
#2 TAB NOTCHER
INSTRUCTION MANUAL
REV D 6/12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACROTECH 2 TAB NOTCHER and is the answer not in the manual?

Questions and answers

Related Manuals for Di-Acro ACROTECH 2 TAB NOTCHER

Summary of Contents for Di-Acro ACROTECH 2 TAB NOTCHER

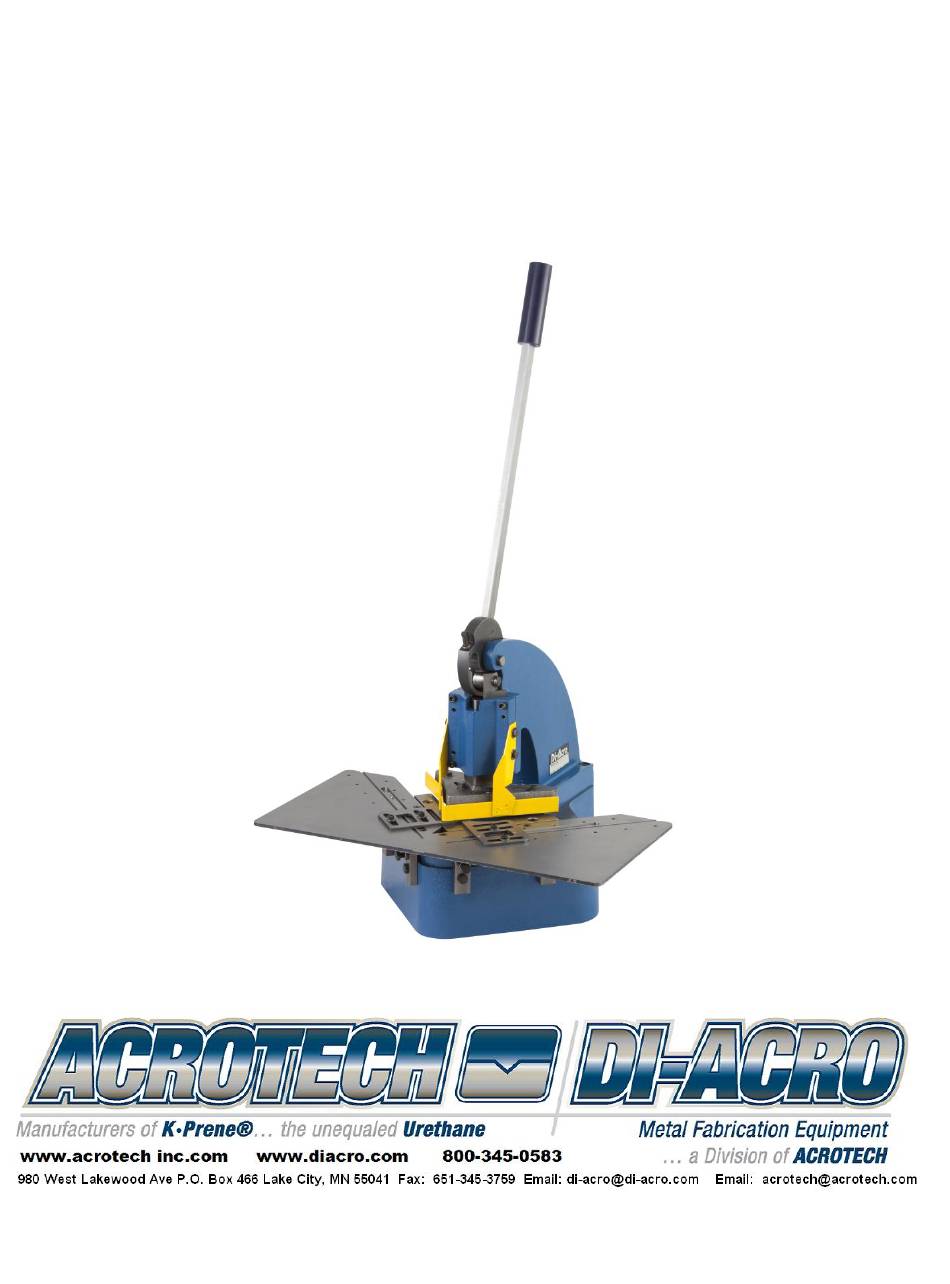

  • Page 1 DI-ACRO #2 TAB NOTCHER INSTRUCTION MANUAL REV D 6/12...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION PG. 3 SET UP PROCEDURE PG. 3-4 TECHNICAL DATA PG. 4 MAINTENANCE PG. 5 PARTS LIST PG. 6-7-8 STAND PG. 8 WARRANTY PG. 9 REV D 6/12...

  • Page 3: Safety Information

    A. Safety Instructions Before Notcher is set up for operation, mount on work bench or stand*. *IF NOTCHER IS MOUNTED ON ITS OWN STAND, SECURE STAND TO FLOOR Set-up Procedure Changing size of tab: Loosen bolts (A) holding lower blade to blade carrier (DO NOT REMOVE) Slide blades forward or back, holding them against shoulder machined in blade carrier to obtain desired tab.

  • Page 4: Technical Data

    Setting size of notch: 1. Loosen screws (G) and set to required notch depth, reading scale along edge (E). Note: Scale is set to read from the edge of the notch so tab size must be subtracted to obtain a corner notch of equal depth. 2.

  • Page 5: Maintenance

    D. Maintenance Lubricate cam roller and ram occasionally with a few drops of heavy machine oil. Sharpening blades 1. Blades have two cutting edges. A new cutting edge is obtained by changing right blade to left side and visa versa. 2.
  • Page 6 PARTS BREAKDOWN # 2 TAB NOTCHER 8030800-080 REV D 6/12...
  • Page 7 #2 TAB NOTCHER 8030800-080 PARTS LIST ITEM PART NUMBER DESCRIPTION 8905350-000 T-NUT 8031110-101 BLADE CARRIER 21A0308C1102 SCREW-HHCS 3/8-16X1-1/2 61X0308 WASHER-3/8 0102WILLIAMS WASHER-1/2 WILLIAMS (NOT WASHER SHOWN GOES UNDER 3/8WASHER) 8031160-101 RULE 22C0104C0508 SCREW-FHMS 1/4-20X5/8 8000110-501 TABLE 8031140-571 PROTRACTOR GAUGE-LH 8031140-572 PROTRACTOR GAUGE-RH 22F0X06F0108 SCREW-BINDER HD #6X1/8...

  • Page 8: Stand

    #2 HAND PUNCH PARTS LIST CONTINUED ITEM PART NUMBER DESCRIPTION 8030570-102 SHIM 8040110-200 UPPER CASTING 20A0102C1304 SCREW-SHCS 1/2-13X1-3/4 20A0516C1102 SCREW-SHCS 5/16-18X1-1/2 8150650-110 NAMEPLATE 030-6503001 CAUTION TAG 21A0102C1102 SCREW-HHCS 1/2-13X1-1/2 8031110-100 BASE 21A0308C1000 SCREW-HHCS 3/8-16X1 31X0308C NUT-JAM 3/8-16 031-1105011 BACKUP PLATE 21A0308C1104 SCREW-HHCS 3/8-16X1-1/4 19A0108X0102...

  • Page 9: Warranty

    ACROTECH/DI-ACRO will satisfy this warranty by replacing the product or refunding the purchase price upon receipt and inspection of the product. ACROTECH/DI-ACRO’s liability under this warranty shall not exceed the amount paid for the product. THIS IS ACROTECH/DI-ACRO’S SOLE WARRANTY IN LIEU OF ALL OTHER...
