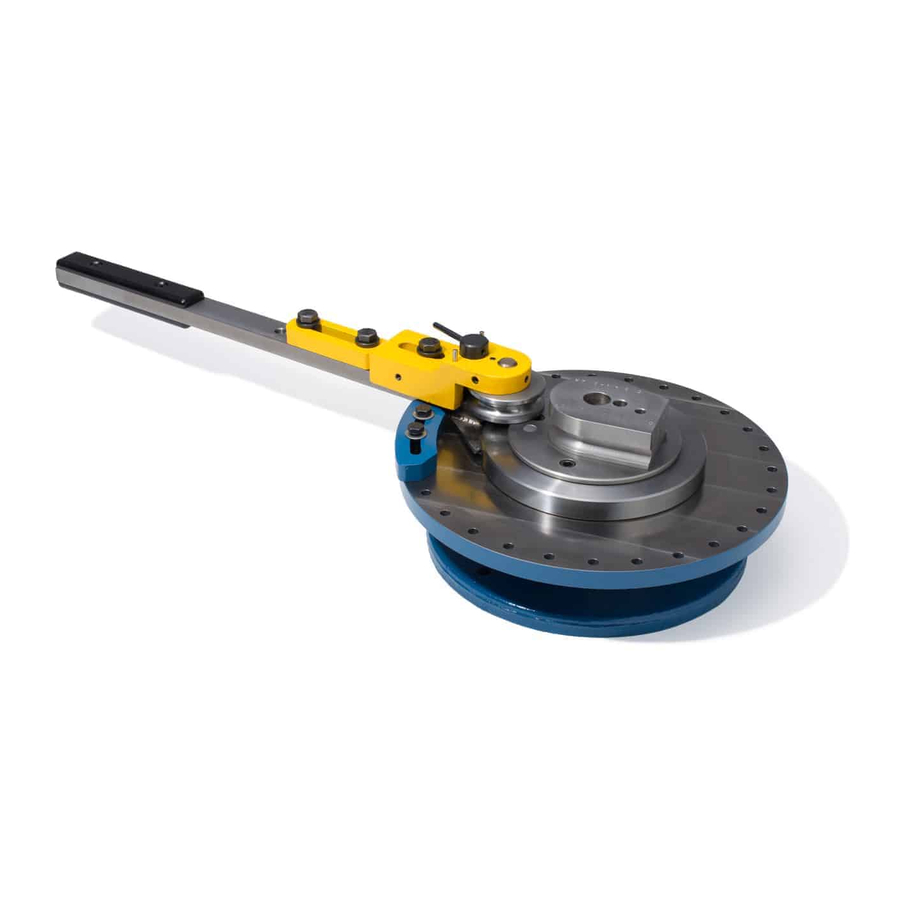

Di-Acro QUIK-LOK Setup And Adjustment

SET-UP AND ADJUSTMENT OF THE DI-ACRO QUIK-LOK

In order to provide sufficient clamping pressure for bending with a Quik-Lok, it must be set up

properly. Failure to follow these instructions may result in poor performance from your Di-Acro

bender.

NOTE: Read the entire procedure prior to setting up the Quik-Lok. A Model 2 bender is shown

throughout this procedure. All other Quik-Lok assemblies will be set up in the same manner.

1. Place the desired radius collar on your bender, and mount the Quik-Lok assembly so that the

clamp block is parallel with the flat side of the radius collar, as shown in Figure 1, below. Leave

the bolts slightly loose for now.

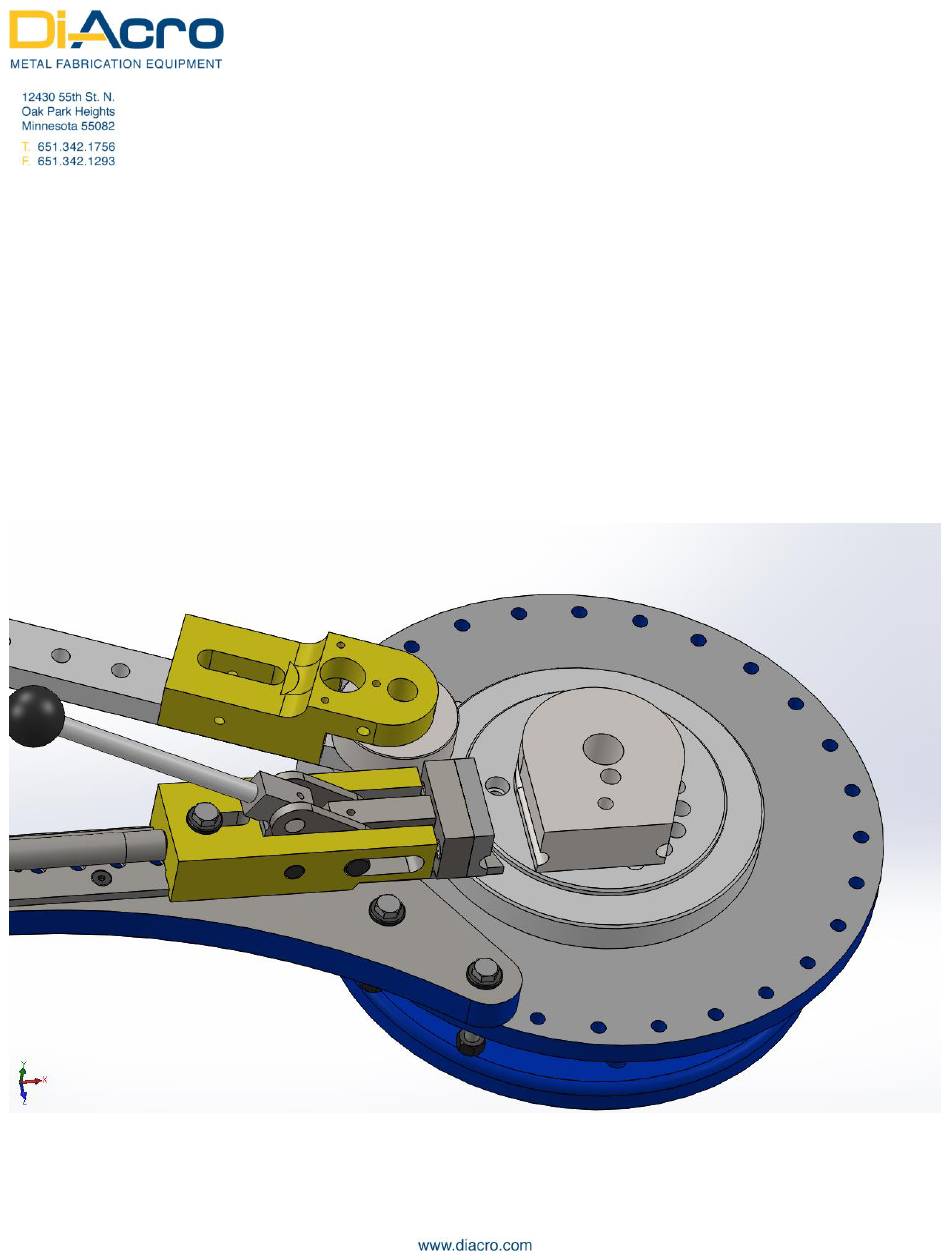

Figure 1: Proper Quik-Lok placement

Table of Contents

Need help?

Do you have a question about the QUIK-LOK and is the answer not in the manual?

Page 1 SET-UP AND ADJUSTMENT OF THE DI-ACRO QUIK-LOK In order to provide sufficient clamping pressure for bending with a Quik-Lok, it must be set up properly. Failure to follow these instructions may result in poor performance from your Di-Acro bender. NOTE: Read the entire procedure prior to setting up the Quik-Lok. A Model 2 bender is shown throughout this procedure.
Page 2 2. With the Clamp Block that corresponds to the radius collar installed onto the Quik-Lok, Index the handle rod forward, as shown in Figure 2. Figure 2: Handle Rod in the Forward, or Clamped, position...
Page 3 Quik-Lok base to achieve this position. Tighten the knurl head screw until it becomes hard to turn. Tighten the bolts for the Quik-Lok base and the hold down bolt in the hanger at this time.
