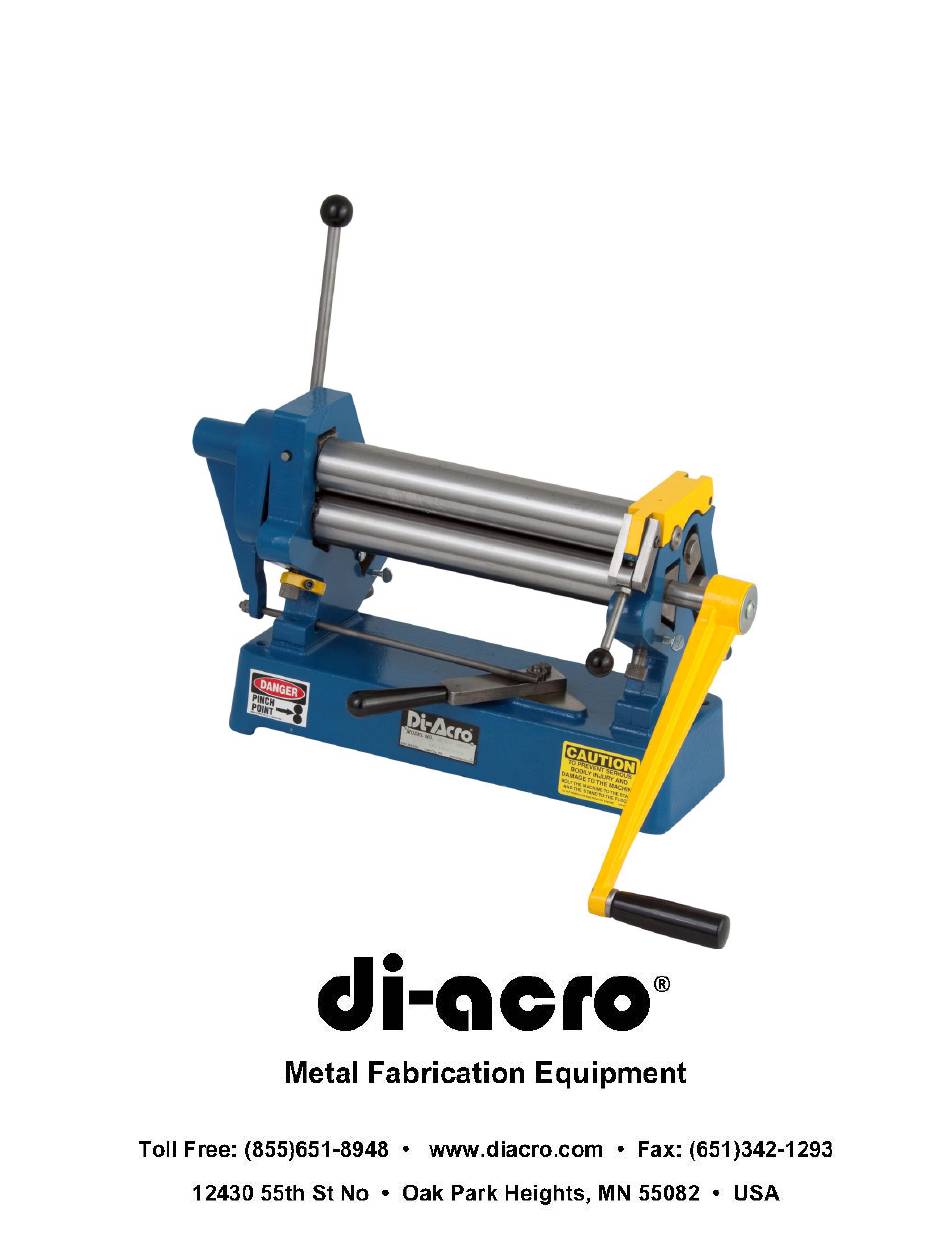

- Page 1 DI-ACRO #12 SLIP ROLLER INSTRUCTION MANUAL REV. E 10/12...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION PG. 3 TECHNICAL DATA PG. 3 FORMING CIRCLES PG. 4 SHAPING METAL PG. 5 #12 SLIP ROLLER BREAKDOWN AND PARTS LIST PG. 6-9 OPTIONAL STAND PG. 10 WARRANTY PG. 11 REV. E 10/12... -
Page 3: Safety Information
A. SAFETY INFORMATION Before roller is set up for operation, mount on work bench or stand*. *IF ROLLER IS MOUNTED ON ITS OWN STAND, SECURE STAND TO FLOOR TECHNICAL DATA No. 12 No. 24 12” 24” Maximum Forming Width Material Capacity - Steel 16 ga. -
Page 4: Forming Circles
C. FORMING CIRCLES REV. E 10/12... -
Page 5: Shaping Metal
D. SHAPING METAL REV. E 10/12... -
Page 6: 12 Slip Roller Breakdown And Parts List
#12 SLIP ROLLER PARTS BREAKDOWN 8422800-080 REV. E 10/12... - Page 7 Parts List 8422800-080 ITEM PART NUMBER DESCRIPTION 31X0516C NUT-JAM 5/16-18 8421110-602 GEAR CAP 18A0104X1102 IN-SPRING 1/4 X1-1/2 8421390-103 GEARS 8421120-201 CAM BLOCK 22D0104C0102 SCREW-THMS 1/4-20X1/2 8100121-401 LOWER PINCH ROLL BOX LH 8000121-400 IDLER ROLL BLOCK 8300121-401 PIVOT BLOCK SIDE FRAME LH ASSY 8000110-370 (SEE PAGE 8 FOR BREAKDOWN OF PARTS FOR LH SIDE FRAME...
- Page 8 Parts List - Continued ITEM PART NUMBER DESCRIPTION 8421111-000 FENDER WASHER 5/16X1-1/4 8422811-400 HANDLE-PINCH ROLL 21A0308C1102 SCREW-HHCS 3/8-16X1-1/2 31X0308C NUT-JAM 3/8-16 SERIAL TAG (NOT SHOWN) 8150650-110 GOES ON FRONT OF MACHINE LEFT SIDE FRAME ASSEMBLY ITEM PART NUMBER DESCRIPTION 421-1103003 SIDE FRAME LH 8410470-102 FRONT ADJUSTMENT SCREW...
- Page 9 RIGHT SIDE FRAME ASSEMBLY ITEM PART NUMBER DESCRIPTION 8421110-300 SIDE FRAME-RIGHT 8410470-102 FRONT ADJUSTMENT SCREW 8421111-001 CLAMP 19A0516X1104 PIN-DOWEL 5/16X1-1/4 8410110-803 SPACER 8000470-102 ADJUSTING SCREW-REAR 28A0104C0102 SCREW-THUMB 1/4X1/2 8000110-303 CLAMP LOCK LINK R 8421110-303 CLAMP LOCK LINK L 8421470-102 CLAMP STUD 31X0308C NUT-JAM 3/8-16 8421120-203...
-
Page 10: Optional Stand
OPTIONAL STAND Stand Dimensions: 20” WIDE, 15” DEEP, 33-1/4” HIGH Part Number: 8230110-900 CALL DI-ACRO FOR PRICE AND AVAILABILITY Fasteners needed to attach Slip Roller to stand are the following: Fasteners to attach stand to floor are not included. PART NUMBER... -
Page 11: Warranty
Warranty & Limitation of Liability Defective parts, of a product manufactured by DI-ACRO, will be replaced or repaired at no charge for twelve (12) months following delivery to the original purchaser. Labor is included for the first 90 days. This warranty becomes void when products have not been used according to instructions furnished by DI-ACRO, nor does it cover any altered parts or unauthorized repairs.
