Di-Acro 4 Bender Instruction Manual

Hand bender

Advertisement

Quick Links

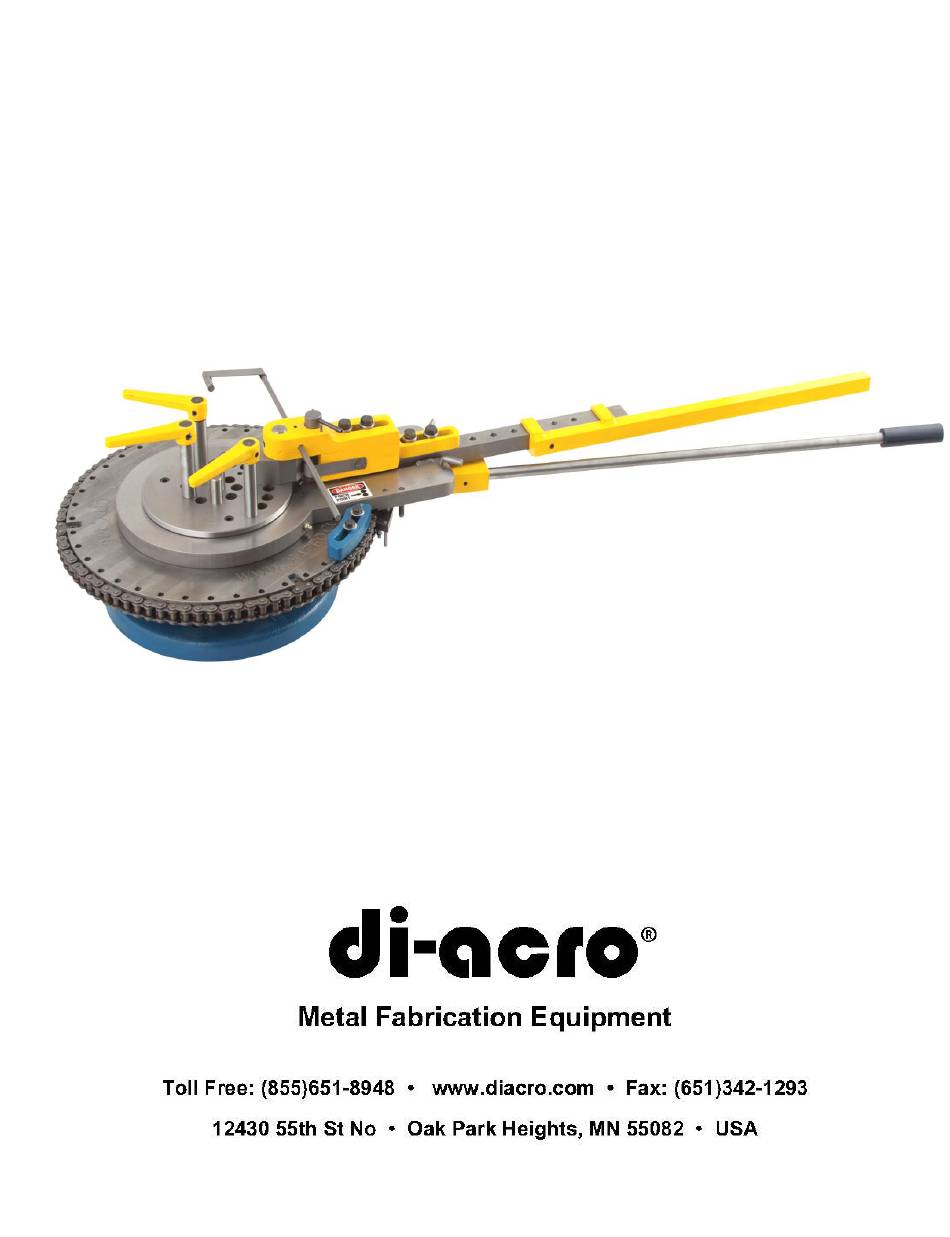

DI-ACRO
#4 HAND BENDER
INSTRUCTION MANUAL
REV. H 10/12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4 Bender and is the answer not in the manual?

Questions and answers

Summary of Contents for Di-Acro 4 Bender

  • Page 1 DI-ACRO #4 HAND BENDER INSTRUCTION MANUAL REV. H 10/12...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION PG. 3 MAINTENANCE PG. 3 #4 HAND BENDER BREAKDOWN AND PARTS LIST PG. 4-6 QUIK-LOK BREAKDOWN AND PARTS LIST PG. 7-8 SPECIFICATIONS & THE ART OF BENDING PG.9 RATCHET AND DIRECT OPERATION PG. 10 QUIK-LOK INSTALLATION & OPERATION PG.
  • Page 3: Safety Information

    SAFETY INFORMATION Before bender is set up for operation, mount on work bench or stand* with stand or work bench bolted in place. *IF BRAKE IS MOUNTED ON ITS OWN STAND, SECURE STAND TO FLOOR MAINTENANCE Lubricate chain as needed. Add grease in grease zerk periodically. REV.
  • Page 4 #4 HAND BENDER PARTS BREAKDOWN 8140800-080 REV. H 10/12...
  • Page 5 Parts List 8140800-080 ITEM PART NUMBER DESCRIPTION 8140110-100 BASE-#4 BENDER 8430200-200 PIN LINK ATTACHMENT 74” 100-0089-P 60 ROLLER CHAIN 8150650-110 SERIAL TAG 8140120-800 HANDLE ARM WELDMENT 120-0191-P GREASE FITTING 8130120-801 EXTENSION ARM WELDMENT 23A0516C1000 SCREW-SSS 5/16-18X1 8140110-501 MOUNTING PLATE 8140120-301...
  • Page 6 Parts List – Continued 8140800-080 ITEM PART NUMBER DESCRIPTION 8140120-304 RATCHET HANDLE PIN STOP 20B0104C0308 SCREW-BHCS 1/4-20X3/8 8000121-803 COLLAR 20A0104C1104 SCREW-SHCS 1/4-20X1-1/4 8000121-804 CHECK PAWL R 8100121-804 CHECK PAWL L 8510100-100 CHECK PAWL SPRING 8200121-804 CHECK PAWL COLLAR 23A0104C0104 SCREW-SSS 1/4-20X1/4 19A0308X2104 PIN-DOWEL 3/8X2-1/4 19A0308X1304...
  • Page 7: Quik-Lok Breakdown And Parts List

    QUIK-LOK BREAKDOWN AND PARTS LIST - 8146111-373 ITEM PART NUMBER DESCRIPTION 8146111-300 BASE 8700111-300 SLIDE WELDMENT 19A0104X1000 PIN-DOWEL 1/4X1 20A0308C0304 SCREW-SHCS 3/8-16X3/4 8146110-700 HANDLE ARM 8310410-900 BEARING 19A0102X1304 PIN-DOWEL 1/2X1-3/4 8100470-102 STUD BOLT 8120810-600 PLASTIC KNOB 8800111-300 LINK 19A0102X1104 PIN-DOWEL 1/2X1-1/4 8146111-301 CLAMP 21A0102F2102...
  • Page 8 RATCHET AND DIRECT OPERATION RATCHET OPERATION For clockwise operation of the Di-Acro No. 4 Bender, engage check pawl (B) and disengage check pawl (C). Remove stop pin (F) from hole (D) and place in hole (E). For counter-clockwise operation, engage check pawl (C) and disengage check pawl (B).
  • Page 9 QUIK-LOK INSTALLATION AND OPERATION forming, insert 3/8” dowel pins (K) and (K-1) in holes to bender base To mount Quik-Lok Clamp on Di-Acro No. 4 Bender for clockwise casting. Bolt in position with 1/2-20 hex screws (L) and (L-1) inserted from the bottom side of base.
  • Page 10: Specifications & The Art Of Bending

    SPECIFICATIONS & THE ART OF BENDING REV. H 10/12...
  • Page 11: Optional Stand

    OPTIONAL STAND Stand Dimensions: 20” WIDE, 15” DEEP, 33-1/4” HIGH Part Number: 8230110-900 CALL DI-ACRO FOR PRICE AND AVAILABILITY Fasteners needed to attach Hand Bender to stand are the following: Fasteners to attach stand to floor are not included PART NUMBER...
  • Page 12: Warranty

    Warranty & Limitation of Liability Defective parts, of a product manufactured by DI-ACRO, will be replaced or repaired at no charge for twelve (12) months following delivery to the original purchaser. Labor is included for the first 90 days. This warranty becomes void when products have not been used according to instructions furnished by DI-ACRO, nor does it cover any altered parts or unauthorized repairs.
