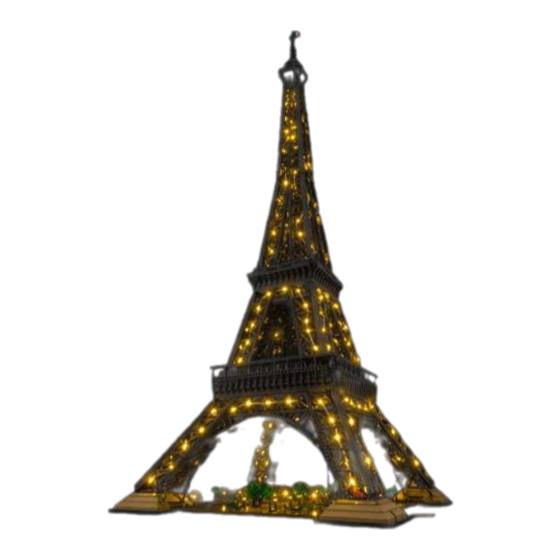

EIFFEL TOWER #10307
®
LIGHT KIT
INSTALLATION GUIDE
Part 2 of 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO EIFFEL TOWER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIGHT MY BRICKS LEGO EIFFEL TOWER

Summary of Contents for LIGHT MY BRICKS LEGO EIFFEL TOWER

  • Page 1 LEGO EIFFEL TOWER #10307 ® LIGHT KIT INSTALLATION GUIDE Part 2 of 2...
  • Page 2 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Contents Instructions: Part 2 Final Product Troubleshooting Contact CONTENTS...
  • Page 3 à les résoudre ici. Se si verificano problemi con il set Light My Bricks, guardare il nostro video per la risoluzione dei problemi o leggere l'elenco delle cause più comuni per la risoluzione dei problemi qui.
  • Page 4 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE NOTE This is Part 2 of the Eiffel Part 1 Connect the 15cm Connecting Tower Light Kit Instructions Cable into the “+5V” port on the If you have not completed RGB IR Control Board.
  • Page 5 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB 30cm Connecting Cable 2x Adhesive Square 50cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 6 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 50cm Connecting Cable NOTE Twist the 15cm Connecting Cable and fold it under the 6-Port Expansion Board. 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 7 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE For Steps 4-5, use one 50cm Connecting Cable while leaving one 50cm Connecting Cable for a later step. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 8 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Leave the 50cm Connecting Cable loose for a later step. NOTE Bend the loose end of the Connecting Cable to look like pictured, to more easily wrap it around the beams. INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 9 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Take the loose RGB Connecting Cable and thread it up the left column. Tile 1x6 - Black Brick 1x2 - Black RGB Strip Light 2.0 INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 10 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB 15cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 11 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB 15cm Connecting Cable Tile 1x6 - Black Brick 1x2 - Black RGB Strip Light 2.0 INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 12 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Tile 1x6 - Black Brick 1x2 - Black RGB Strip Light 2.0 INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 13 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB 15cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 14 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB Strip Light 2.0 Tile 1x6 - Black Brick 1x2 - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 15 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Wall Adaptor (sold separately). A power bank or battery pack is not recommended to power this set. IR Switch Board USB Power Cable NOTE Press the R, G, and B buttons on the Remote, aimed at the RGB IR board, to change the Strip Lights to Red, Green, and...
  • Page 16 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 17 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 18 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 19 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 20 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 21 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 22 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Leave the end of the String Light loose to connect to the bottom section later. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 23 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Take the 15cm Connecting Cable from the bottom level in Part 1, and connect it to the 6-Port Expansion Board. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 24 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Take the 50cm Connecting Cable that is loose from Step 3. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 25 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 26 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2-Port Expansion Board 15cm Connecting Cable Adhesive Square NOTE Take the USB Power Cable plus IR Switch Board from Step 16. NOTE Connect the loose 15cm Connecting Cable into the “OUT A” Port of the IR Control Board.
  • Page 27 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE NOTE Connect to a 5V USB Wall Leave the IR Switch Board plus Adaptor (sold separately). A USB Power Cable sitting in this power bank or battery pack is area until later on. not recommended to power this set.
  • Page 28 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2-Port Expansion Board 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 29 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 30 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square RGB IR Control Board RGB 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 31 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Plate 1x6 - Black RGB Strip Light 2.0 RGB 15cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 32 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Plate 1x6 - Black RGB Strip Light 2.0 RGB 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 33 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 34 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Plate 1x6 - Black RGB Strip Light 2.0 RGB 15cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 35 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Plate 1x6 - Black RGB Strip Light 2.0 INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 36 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB 15cm Connecting Cable Plate, Round 1x1 with Open Stud - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 37 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Plate, Round 1x1 with Open Stud Plate, Round 1x1 with Open Stud - Black - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 38 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB Strip Light 2.0 Plate, Round 1x1 with Open Stud RGB 15cm Connecting Cable - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 39 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB Strip Light 2.0 RGB 15cm Connecting Cable NOTE Ensure the Strip Light is stuck in the position shown, with the ends lining up with the edge of the Round Plate. INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 40 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 41 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 42 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 43 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 44 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 45 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 46 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 47 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 48 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 49 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2Pin-3Pin 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 50 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 51 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 50cm Connecting Cable Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 52 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Thread the cable up through the middle of the tower like in Step 45. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 53 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Bracket 1x1 - 1x1 Inverted - Dark Bluish Gray White 15cm Bit Light Plate, Round 1x1 with Open Stud - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 54 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Plate, Round 1x1 with Bar Handle - Black Tile, Modified 1x1 with Open O Clip - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 55 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Tile, Modified 1x1 with Open O Clip - Black RGB 15cm Bit Light Plate, Round 1x1 with Open Stud - Black Plate, Round 1x1 with Bar Handle - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL...
  • Page 56 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Plate, Round 1x1 with Open Stud RGB 15cm Bit Light - Black Plate, Round 1x1 with Bar Handle - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 57 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Tile, Modified 1x1 with Open O Clip - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 58 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 6-Port Expansion Board RGB 6-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 59 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square NOTE Attach the Adhesive Squares to the back of the RGB 6-Port Expansion Board. NOTE Thread the cables on the tower up through the open window on the top section, plug them into the corresponding boards.
  • Page 60 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 120cm Connecting Cable 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 61 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 62 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Ensure the Eiffel Tower base with the USB Power Cables coming out is facing you. The Top Section side with the cables lines up with it. NOTE Connect the 30cm Connecting Cable from Step 5 into the 2-Port Expansion Board from Step 29.
  • Page 63 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Adhesive Square NOTE Connect the String Light cable from Step 46 into the String Light from Step 22. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 64 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 65 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 30cm Connecting Cable Adhesive Square 2-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 66 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 67 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Wall Adaptor (sold separately). A power bank or battery pack is not recommended to power this set. NOTE Press the R, G, and B buttons on the Remote to change the Strip Lights and RGB Bit Lights to Red, Green, and Blue to test...
  • Page 68 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Swap to the Sparkle Mode by pressing the ON and OFF buttons on the remote to test if the String Lights are working. If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify...
  • Page 69 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® FINAL PRODUCT This finally completes installation of the Light My Bricks LEGO Eiffel Tower 10307 Light Kit. ® FINAL PRODUCT...
  • Page 70 à les résoudre ici. Se si verificano problemi con il set Light My Bricks, guardare il nostro video per la risoluzione dei problemi o leggere l'elenco delle cause più comuni per la risoluzione dei problemi qui.
  • Page 71 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Troubleshooting Firstly, ensure that the Check for AA batteries batteries have power using a using the AA battery pack battery charge gauge. Inside the battery pack are symbols indicating which direction the AA battery If the batteries have no power, should be inserted.
  • Page 72 EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO bricks, the light will not operate.
  • Page 73 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports DISCONNECT POWER IMMEDIATELY Batteries can fail, catch fire, or even It is important to note that connectors can...
  • Page 74 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage. Alternatively, you can contact our Customer Services team by visiting our online support portal.
  • Page 75 © 2022 Light My Bricks Pty Ltd - Head Office: 4/26 Rushdale Street, Knoxfield VIC 3180, Australia. Phone: +61 420 643 543 | All Rights Reserved | Light My Bricks™ sell LED lighting kits only. All LEGO sets featured in images are sold ®...
