- Page 1 LEGO® DARTH VADER HELMET #75304 LIGHT KIT INSTALLATION GUIDE...
- Page 2 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO® DARTH VADER HELMET #75304 LIGHT KIT INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO® Darth Vader Helmet (75304) Light Kit. This PDF details the instructions for the LED light & sound kit only.
- Page 3 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE PACKAGE CONTENTS: LEGO PIECES: 2 x Red 30cm Bit Lights • 2 x Black Round Plate 1x1 w Open Stud 3 x Red 30cm Large Bit Lights • 2 x Black Arm Skeleton, Bent w Clips (Horizontal Grip) 1 x Cool White 30cm Large Bit Light •...
-
Page 4: Table Of Contents
LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Contents Before You Begin Instructions Final Product Troubleshooting Contact CONTENTS... -
Page 5: Before You Begin
LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards. - Page 6 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
- Page 7 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO®...
-
Page 8: Instructions
LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. LEGEND DISCONNECT CONNECT / RECONNECT TURN / FLIP... - Page 9 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Red 30cm Large Bit Light Black 1x1 Modified Plate Rounded with handle Black Arm Skeleton, Bent w Clips (Horizontal Grip) Black Round Plate 1x1 w Open Stud CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID...
- Page 10 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Black 1x1 Modified Plate Rounded with handle Black 1x6 Plate Black Arm Skeleton, Bent w Clips (Horizontal Grip) Black Round Plate 1x1 w Open Stud Cool White 30cm Large Bit Light CONNECT / Legend DISCONNECT...
- Page 11 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 12 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Technic lift arm assembly removed in step 2 Technic Axle 4l Remove the with Stop removed Technic Axle 4L with in step 2 Stop CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 13 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Red 30cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 14 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 15 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
-
Page 16: Final Product

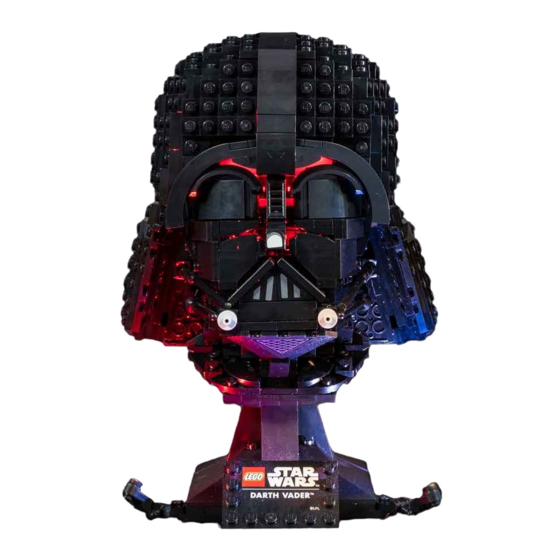

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks Darth Vader Helmet 75304 Light Kit. FINAL PPRODUCT... -
Page 17: Troubleshooting
LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING If you are experiencing Light My Bricks lighting To prevent unnecessary kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our... - Page 18 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
- Page 19 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
- Page 20 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
- Page 21 LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports DISCONNECT POWER IMMEDIATELY Batteries can fail, catch fire, or even It is important to note that connectors can...
-
Page 22: Contact
LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a generalÁ enquiry please refer to our Frequently Asked Questions webpage. Alternatively, you can contact our Customer Services team by visiting our online support portal. - Page 23 lightmybricks.com...
