QUICK START GUIDE
neo 1-4 HDMI Splitter (P8-HDMI-SP4)
This installation guide helps you to install and use your Pulse-Eight neo 1-4 HDMI
Splitter for the first time.
Go to help.pulse-eight.com for additional information on this product including
important technical information not provided in this document and warranty terms
& conditions.
SCAN FOR HELP
CHECK WHAT'S INSIDE THE BOX
• 1 x neo:1-4 HDMI Splitter
IMPORTANT!
!
• Please read the instructions before attempting to install or operate this equipment.
• Visit the
help.pulse-eight.com
configuration tools.

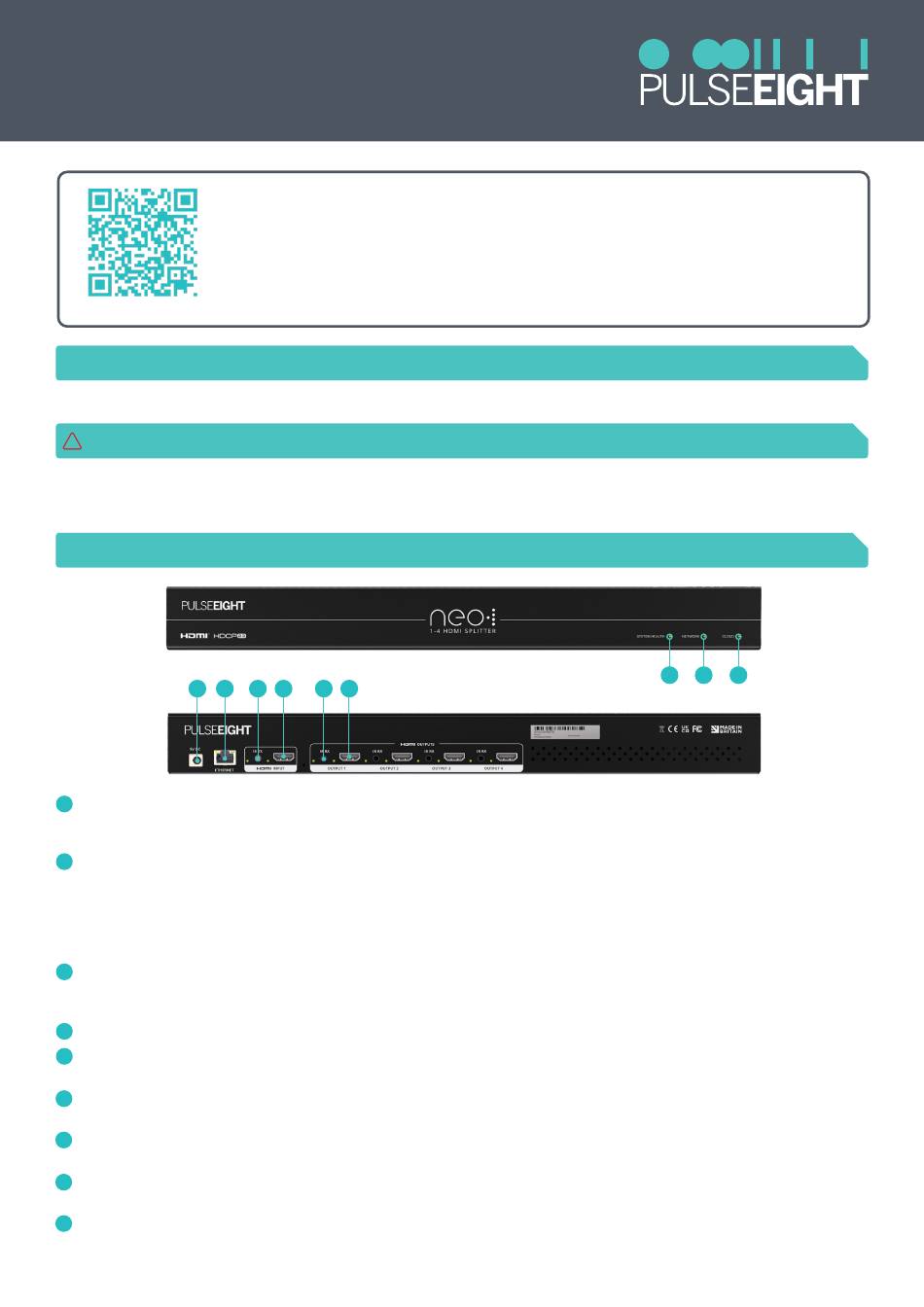

PANEL DESCRIPTIONS
D
E
System Health LED: Indicates splitter health.
A
RED
- It is powering on or fault found.
GREEN
- The system is healthy.
Network LED: Indicates the splitter network connection.
B
RED
- No network cable is connected.
AMBER
(Flashing) - It is discovering the IP address.
AMBER
(Solid) - The network has the IP but cannot ping the router.
GREEN
(Flashing) - The network cannot reach the internet.
GREEN
(Solid) - The network is healthy.
Cloud LED: Indicates the splitter connection to the Pulse-Eight Cloud.
C
RED
- It is not connected to the cloud.
GREEN
- It is connected to the cloud.
48V DC: Use with the supplied power adapter to connect the power.
D
Ethernet: Connect to network - Required for connection to Web Interface, Third Party Control, and Cloud
E
Remote Monitoring Portal.
IR TX Port: Use to control the connected HDMI Source device (STB, Blu-Ray, etc) using a compliant Pulse-Eight
F
IR Emitter.
HDMI Input: Connect the appropriate high speed HDMI cable to each input. These cables should then be
G
connected to the Source device. (Blu-Ray player etc.)
H
IR RX Port: Can be used to accept and distribute IR signals to the IR output port. The IR RX ports can be
connected directly to an IR Receiver bud or to an HDMI extender (e.g. neo:Lite extender set).
I
HDMI Output: Connect the appropriate high speed HDMI cable to each output. These cables should then be
directly connected to each Sink device. (TV/Amplifier etc.)
• 1 x Power Supply Adapter
to download the latest product manual, additional documentation, and
F
G
H
I
• 1 x Quick Start Guide
A
B
C
