QUICK REFERENCE GUIDE - HDMI DAC (P8-HDMIDAC)

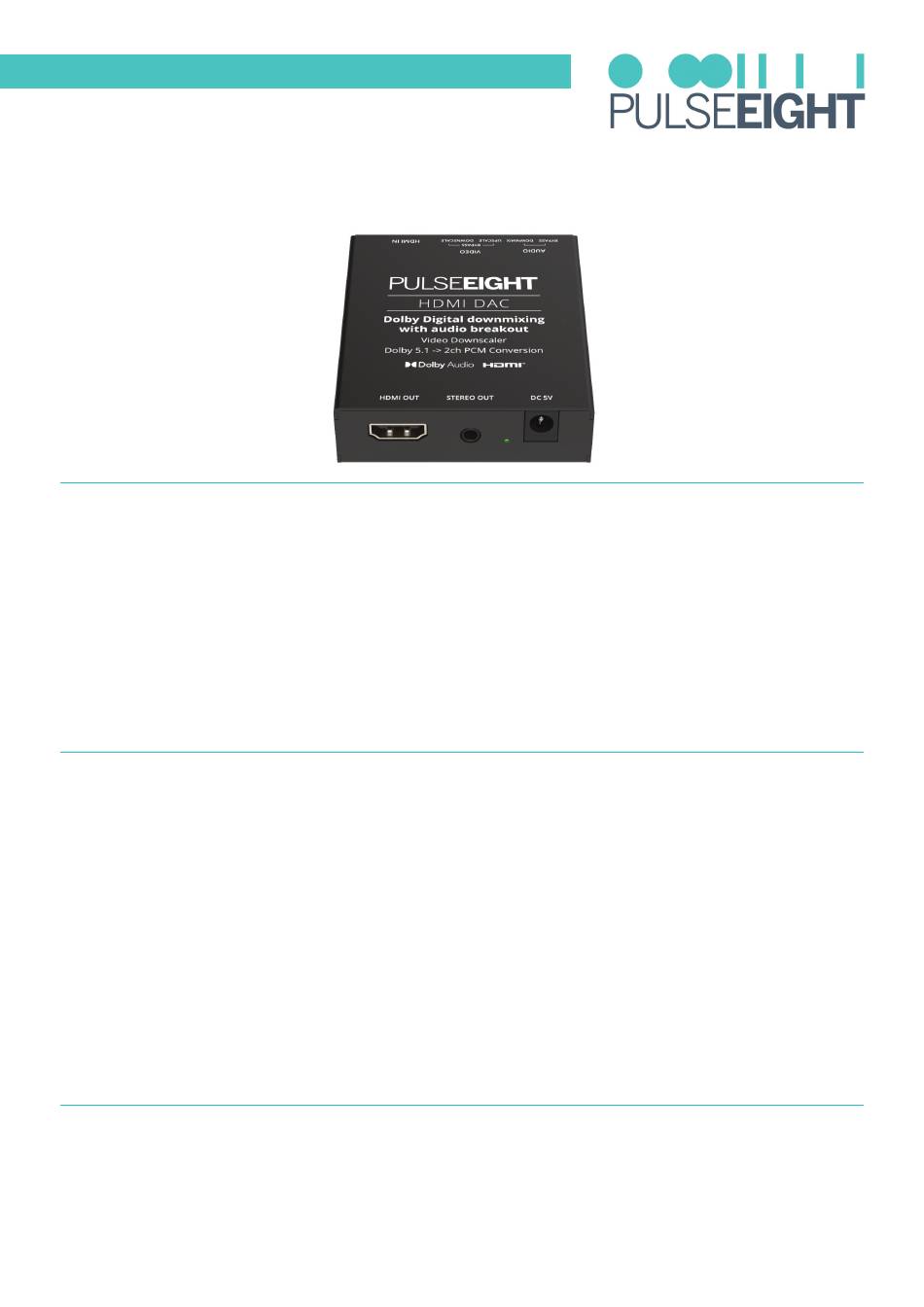

HDMI DAC
INTRODUCTION
Although 4K UltraHD has arrived, not every client will immediately abandon their existing HD screens, so the
ability to support a combination of 4K and 1080p HD displays within the same distribution is critical, especially
when resolution conflicts that affect systems, including screens of varying capabilities, are taken into account.
The P8-HDMI DAC video scaler and digital audio converter (DAC) is intended to be used in
conjunction with a display and a source device. It scales the output to a level compatible with
its display capabilities after adjusting the resolution and audio from an incoming HDMI source.
This product is ideal for integrating HD and 4K sources and displays into a multi-zone residential or commercial
distribution system.
FEATURES
• In-line scaling solution for installations that use both 4K and HD displays without compromising source resolution
• Supports resolutions up to 3840x2160p @24/25/30Hz
• Full 3D support up to 1080p/24hz
• Up to 6 channels of input support (up to 5.1 surround) of audio encoded in Dolby Digital
• Low-latency digital filtering
• Accepts uncompressed digital audio input signals
• Includes digital interpolation filter
• Auto-samples at frequencies of 32, 44.1 and 48KHz
• Supports audio signals up to 24bit with sampling rates up to 192KHz
• THD+N (Total harmonic distortion plus noise) rating: a-93db
• Switchable input selection for video/audio scaling or signal pass-through
• Equalizes and boosts HDMI signal for longer distance transmissions
• Compact design
• LED power indication
INSIDE THE BOX (KIT)
• 1 x HDMI DAC
• 1 x Power Cable
• 1 x Installation Guide
