QUICK REFERENCE GUIDE - DOLBY DAC (P8-DDAC)

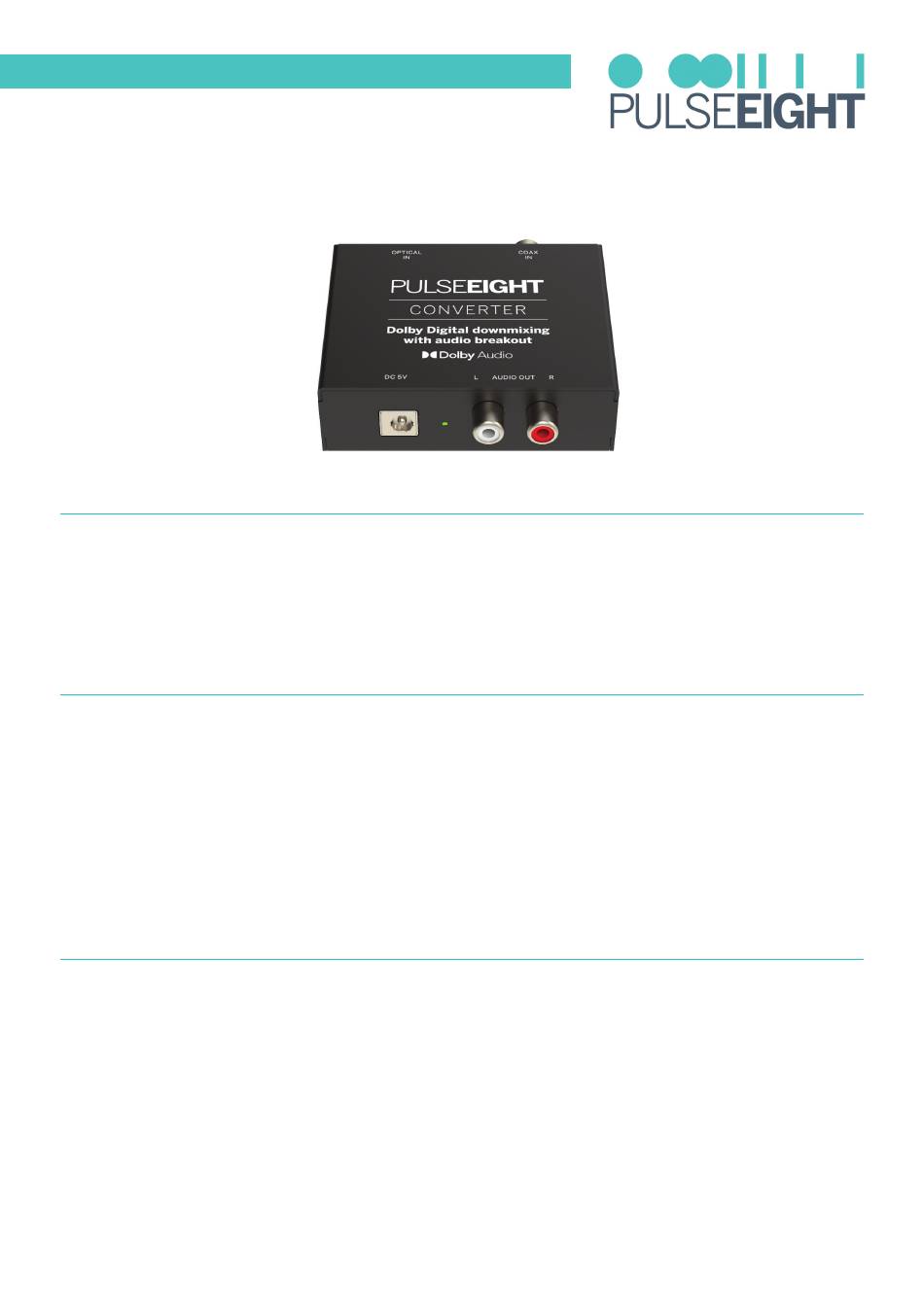

DOLBY DAC
INTRODUCTION
The Pulse-Eight Dolby Digital to Analogue Audio Converter can decode S/PDIF coaxial or TOSLINK optical digital
audio sources and convert them to standard analogue stereo (L/R) audio. Through standard phono style (RCA)
jacks, stereo output signals can then be fed to external devices such as an amplifier, Hi-Fi, recording deck, or
powered speakers. It ensures a smooth transition from modern digital sources to analogue sound systems, such
as DVD and Blu-ray players or AppleTV. With inputs for coaxial or optical connections, it is the ideal solution for
audio conversion needs.
FEATURES
• Includes digital interpolation filter
• Optical & digital coaxial inputs
• LED power indication
• Compact design
• Supports audio signals up to 24-bit with sampling rates up to 192 kHz
• 5.1 Compressed audio supported
• Low-latency digital filtering
• Dynamic Range: 106 dB A-wt
• THD+N (Total harmonic distortion plus noise) rating: -93dB
• Support for Dolby Audio
INSIDE THE BOX (KIT)
• 1 x Dolby DAC
• 1 x Power Cable
• 1 x Installation Guide
1
