Rebotec Phoenix User Manual

Rebotec Phoenix User Manual

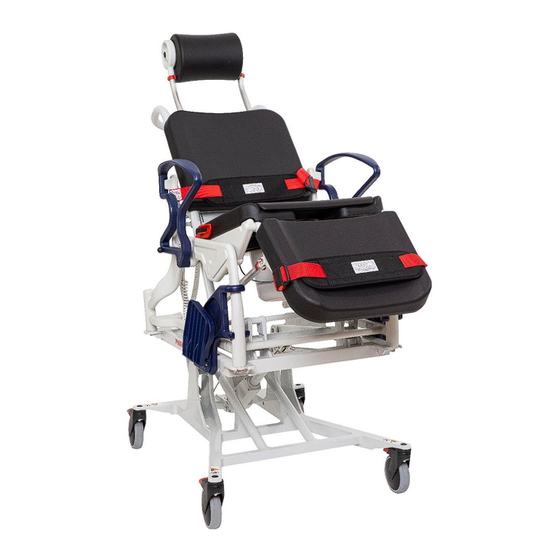

Multifunctional nursing wheelchair
Hide thumbs Also See for Phoenix:

Advertisement

Quick Links

EN
BA-Nr.: 02.07.147/2023-07-A01
Multifunctional nursing wheelchair
Phoenix
352.xx.10
150 kg
XX = colour code
Figure similar
Read this User Manual
user as well as for future use and provide it to the purchaser in the case of subsequent sales.
REBOTEC
DE-49610 Quakenbrück, Artlandstr. 57-59
Telephone: +49 (0) 5431/9416-0
Fax: +49 (0) 5431/9416-66
Web:
Email:
User Manual
before using the product for the first time
®
Rehabilitationsmittel GmbH
www.rebotec.de
info@rebotec.de
Phoenix
352.xx.40
150 kg
and keep it at hand for the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix and is the answer not in the manual?

Questions and answers

Summary of Contents for Rebotec Phoenix

  • Page 1 Telephone: +49 (0) 5431/9416-0 Fax: +49 (0) 5431/9416-66 Web: www.rebotec.de BA-Nr.: 02.07.147/2023-07-A01 Email: info@rebotec.de User Manual Multifunctional nursing wheelchair Phoenix Phoenix 352.xx.10 352.xx.40 150 kg 150 kg XX = colour code Figure similar Read this User Manual before using the product for the first time and keep it at hand for the user as well as for future use and provide it to the purchaser in the case of subsequent sales.
  • Page 2: Table Of Contents

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / 10.7 Linear drive ........... 12 Table of contents Product information ..... 12 Product description ....... 3 Operation of the product ..... 12 Introduction ..........3 12.1 Sitting down ......... 12 LINAK assembly instructions ....3 12.2 Getting up ..........
  • Page 3: Product Description

    • This product is designed for people with adult body proportions. They should weigh Figure shows: Headrest adjustment  40 to 150 kg in the Phoenix PUR backrest cushion  and be at least 146 cm tall. Armrest 2.1 Intended purpose...
  • Page 4: Use

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / showering while sitting or lying down. It can be adjustable and rotatable. A tilt adjustment of the smoothly and variably adjusted between sitting chair, via a lever function, for the supine position and lying positions. of the patient •...
  • Page 5: Protection Classes

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / Meaning Symbol Meaning Symbol Meaning Protection against temporary immersion Mainte- Care nance Protection against continuous immersion structions structions Protection against water from high-pres- Applicable sure/steam jet cleaning Manufac- indoor turer Keep the product clean and clean it regu- use only.
  • Page 6: Incident Reporting

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / • The chair may only be moved on a slope or incline when pressing on the seat plate or adjusting the tilt adjustment. with the help of a caregiver. Generally, on an uphill slope the chair should be pushed forward and on •...
  • Page 7: Warranty

    • The manufacturer grants a warranty of 12 months • 1x wall charger for this product. The prerequisites are the general terms and conditions (www.rebotec.de/agbs), as • 1x user manual (02.07.147) well as the intended use. The statutory warranty • The reprocessing and maintenance instructions provisions shall apply.
  • Page 8: Folding Down The Footrests

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / stop and fold the levers (A) all the way down. 9.1 Folding down the footrests • To adjust the headrest height, fold up the two lev- • Turn (1) the footrests forwards until they engage ers (A) and slide the headrest to the appropriate automatically.
  • Page 9: Adjusting The Tilt Angle

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / 9.5 Adjusting the tilt angle • The backrest can be smoothly and variably tilted Observe the warnings! backwards by approx. 37° and the seat surface can be adjusted by 12°. • Pull the locking lever (A) vertically upwards and then press down on the backrest (B) to the desired position.
  • Page 10: Wall Charger

    To this end, the batteries are equipped with during installation. a snap lock (B). • REBOTEC is not liable for any damage resulting • When attaching, make sure the snap lock is en- from the installation of the charger on the wall. Be- gaged before releasing the battery.
  • Page 11: Control Unit

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / • When connecting the manual switch, make sure Approx. that the jack D (groove and arrangement of the 3000 mm contacts) is positively locked in order to avoid a de- fect in the control unit. The wall charger has an idle power con- 10.5 EMERGENCY OFF function...
  • Page 12: Manual Switch

    Lifting ments and improvements with respect to the de- sign shown in this user manual. • See 16. Field Value Lowering Phoenix / 352.XX.10 Product weight* 53.6 kg Total weight* 61.2 kg Phoenix / 352.XX.40 Battery indicator light Product weight* 53.0 kg...
  • Page 13: Getting Up

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / Caution: risk of falling! • The patient must never use the footrests to support his/her weight when sitting down or getting up (get- ting into and leaving the chair). 12.3 Sitting and lying in the lower posi- tion •...
  • Page 14: Removing The Seats

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / 12.5 Removing the seats • The seat, the leg rest and the back pad can be re- moved from their locking position on the chair frame for cleaning purposes or for replacement (see description, page 2).
  • Page 15: Troubleshooting

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / • Observe infection control. Disinfect the product be- 13 Troubleshooting fore reuse. 13.1 General • Do not mix different cleaning and disinfectant prod- ucts. Fault Possible cause Remedy Armrest cannot Deposits in the 14.2 Cleaning Cleaning, regu-...
  • Page 16: Maintenance

    • Depending on the disinfectant, a subsequent wip- ticle. This may affect the safety and function of the ing with warm water may be necessary. item. In such cases, REBOTEC will not assume • Remove the disinfectant without leaving any resi- any liability.
  • Page 17: Spare Parts & Accessories

    440.10.40 322.30.10 Safety belt size S. 322.10.50 Safety belt slide-on pad 322.30.99 Set, safety belts for Phoenix incl. slide-on pads Use only REBOTEC spare parts and accessories to ensure the proper and safe functioning of the product. - 17 -...
  • Page 18: Drawing & Dimensions

    BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / 16 Drawing & dimensions Designation Phoenix 1230 mm Overall height 1110 mm Overall height 1060 mm Handlebar height 650 mm Overall width 1110 mm Overall depth Overall depth 1435 mm 570 mm Seat height 450 mm...
  • Page 19 BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / - 19 -...
  • Page 20 BA-Nr.: 02.07.147/2023-07-A01 REBOTEC / REBOTEC ® Rehabilitationsmittel GmbH D-49610 Quakenbrück, Artlandstr. 57-59 Phone: +49 (0) 5431/9416-0 Fax: +49 (0) 5431/9416-66 Web: www.rebotec.de Email: info@rebotec.de Read this User Manual before using the product for the first time and keep it at hand for the...
