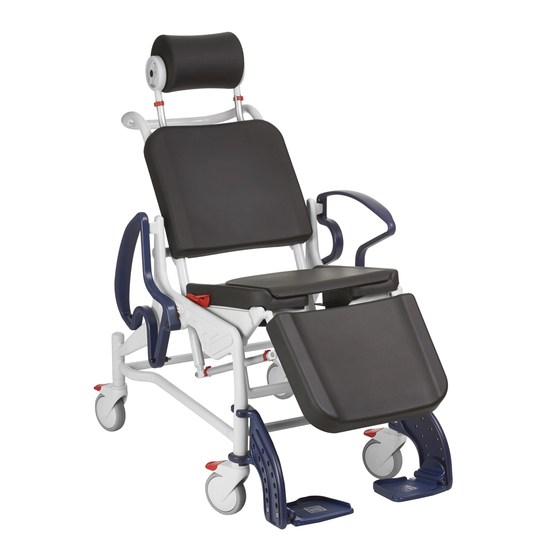

REBOTEC Rehabilitationsmittel GmbH DE-49610 Quakenbrück, Artlandstr. 57-59 Telephone : (+49) 5431/9416-0 Telefax : (+49) 5431/9416-66 WA-Nr.: 02.11.151/2018-09 http://www.rebotec.de e-mail: info@rebotec.de Maintenance Instructions Multifunctional wheel chairs Phoenix PU/PS Phoenix PU/PS-Hydraulic Phoenix PU/PS-Electric Important advisory! Store the maintenance inspection reports carefully. This will allow you to keep an...
Page 2
1.1 Maintenance / inspection requirements impact product’s safety function. REBOTEC accepts no liability in such cases. In this maintenance instructions pamphlet you’ll find information and advisories on the safe and When performing maintenance and repairs, please use the product’s User Instructions booklet as an professional maintenance and/or repair work on the Multifunctional wheel chairs.
Page 3
Maintenance protocol No.: Product information/Multifunctional wheel chair: Phoenix -H/-E (medical product class I) REB02.11.151-18-09 Product Serial no. Year of Use starting Manufacturer User Inventory no. Location of use Control unit Battery no. Drive unit no. Hand switch no. Function inspection ( electric checked for: Article Scope of work...
Maintenance overview Product information/Multifunctional wheel chair: Phoenix -H/-E (medical product class I) REB02.11.151-18-09 Product Serial no. Year manuf. Use start Manufacturer User Location of use Inventory no. 1st Maintenance Maintenance company Report Signature Date Remarks: 2nd Maintenance Maintenance company Report Signature Date Remarks:...
Page 7
REBOTEC / MA-Nr.: 02.13.153/2018-02-A01 General information These installation instructions contain information and information on the safe and proper installation (Step 1 to Step 6) of the maintenance kit for multifunction care wheelchairs. Only use original spare parts from for the REBOTEC maintenance of the product.
Page 8
REBOTEC / MA-Nr.: 02.13.153/2018-02-A01 Step 1: Unlock the armrest pull out the lock swivel the armrest slightly backwards pull the armrest aside and swing it forward - 4 -...
Page 9
REBOTEC / MA-Nr.: 02.13.153/2018-02-A01 Step 2: Covers remove protective covers on both sides tilt the chair slightly backwards Step 3: Rear bearings loose the screws counterclock- wise with the Allen key remove the bearing with the appropriate tool, moving the...
Page 10
REBOTEC / MA-Nr.: 02.13.153/2018-02-A01 Step 4: Front bearings loose the screws counterclockwise with the Allen key pull out the parts plug spare parts together (brass and synthetic sleeve) tighten screw with washer clockwise Step 5: Review Check the ease of movement by tilting the chair, if necessary make adjustments, see model-based user instructions BA (9.5)
