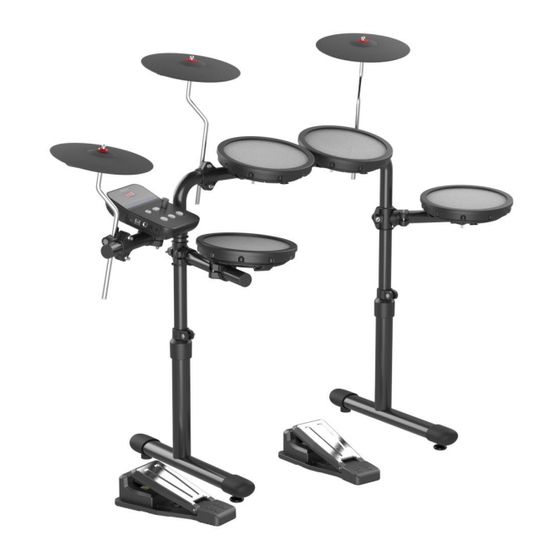

- Page 1 XDrum DD-250 Mesh E-Drum Kit Art. No.: 00088326 Operating instructions Revision: 07/2022...
-
Page 2: Table Of Contents
XDrum DD-250 These operating instructions are protected by copyright. Reproduction of these operating instructions, even in part, is only permitted with the permission of Musikhaus Kirstein GmbH. The same applies to the reproduction or copying of pictures, even in modified form. -
Page 3: Intended Use
XDrum DD-250 Thank you for choosing this product. To ensure that you are completely satisfied with this product, please read carefully and understand this instruction manual before using our product. Keep these operating instructions in a safe place. The operating instructions must be passed on to all subsequent users. - Page 4 XDrum DD-250 • Installation is only permitted on a stable and solid surface. An appropriate substructure may have to be provided. • Do not place any open light sources (candles, etc.) on or near the product. • Only operate the item from an earthed mains socket.
-
Page 5: Included Components
XDrum DD-250 • Do not expose the unit to direct sunlight, place it near equipment that radiates heat, leave it in a closed vehicle or otherwise expose it to extreme temperatures. Excessive heat may deform or discolour the unit. •... -
Page 6: Construction
XDrum DD-250 Construction 1. Construction of the rack system 2. Attaching the drum pads XDrum DD-250 2022-07-13... - Page 7 XDrum DD-250 3. Attaching the module 4. Mounting the hihat and cymbal arms 2022-07-13 XDrum DD-250...
- Page 8 XDrum DD-250 5. Attaching the hihat and cymbal pads 6. Wiring of the individual components XDrum DD-250 2022-07-13...
-
Page 9: Module Specifications
XDrum DD-250 7. Height adjustment of the rack system Module specifications Songs Preset Kits Sounds DSP effects EQ, PAN Tempo 20-320 BPM Power supply connection Type C, 5V, 1A USB (USB type B, USB midi) AUX (3.5 mm stereo jack) Connections L/Mono (6.35mm stereo jack) -
Page 10: Module Operating Elements
XDrum DD-250 Module Operating elements 1. Display: For displaying various information. 2. Drums indicator: Indicates that you are in drums mode. 3. Tempo indicator: Indicates that you are in tempo mode. 4. Rhythm indicator: Indicates that you are in rhythm mode. -
Page 11: Module Connections
XDrum DD-250 Module connections 1. Mains connection (DC 5V): Connect the supplied type C power supply (DC 5V, 1A) here to supply the e-drum with power. 2. USB socket (USB): Connect the module to your computer via USB cable (USB-A - USB-B) to send and receive midi data and to receive USB audio data. -
Page 12: Get Ready To Play - The Most Important Functions
XDrum DD-250 Get ready to play - the most important functions Switching on the module 1. Turn the volume control anti-clockwise to reduce the volume completely. Set the volume of the connected external amplifiers to 0 as well. 2. Press the power button to switch the unit on. -
Page 13: Drum Kit Settings
XDrum DD-250 Drum Kit Settings 1. Press the Select button to switch between the different drum kits. After switching on, the module is in kit mode by default and the kit indicator lights up. 2. The display shows the drum kit number, press the [+] or [-] button to select a drum kit from the list (12 in total). - Page 14 XDrum DD-250 3. Use the metronome button (Metro/Play) to switch on the metronome. Press it again to deactivate the metronome. 4. Press the [+] or [-] buttons to change the tempo. By pressing the buttons for a long time, you can change the tempo faster.
-
Page 15: Playing To A Song
XDrum DD-250 Changing the Metronome Rhythm 1. Use the Select button to select the rhythm mode of the metronome. 2. The display shows the set rhythm. In rhythm mode, press the [+] or [-] buttons to set the rhythm. Playing to a song 1. -
Page 16: Power Saving Mode
XDrum DD-250 When the metronome is off, long press the metronome button (Metro/Play) to turn it When the metronome is on, press and hold the metronome button (Metro/Play) to turn it off. Power saving mode When this function is activated, the unit switches off automatically if no signal is received from one of the input sockets or the pads for a certain period of time. -
Page 17: Index - List Of Drum Kits, Songs And Sounds
XDrum DD-250 Index - List of drum kits, songs and sounds 2022-07-13 XDrum DD-250... -
Page 18: Midi Notes Of The Pads
XDrum DD-250 Midi notes of the pads Kick Midi Note 0x24 Snare Midi Note 0x26 Tom 1 Midi Note 0x30 Tom 2 Midi Note 0x2d Tom 3 Midi Note 0x2b HiHat Open Midi Note 0x2e HiHat Closed Midi Note 0x2a...
