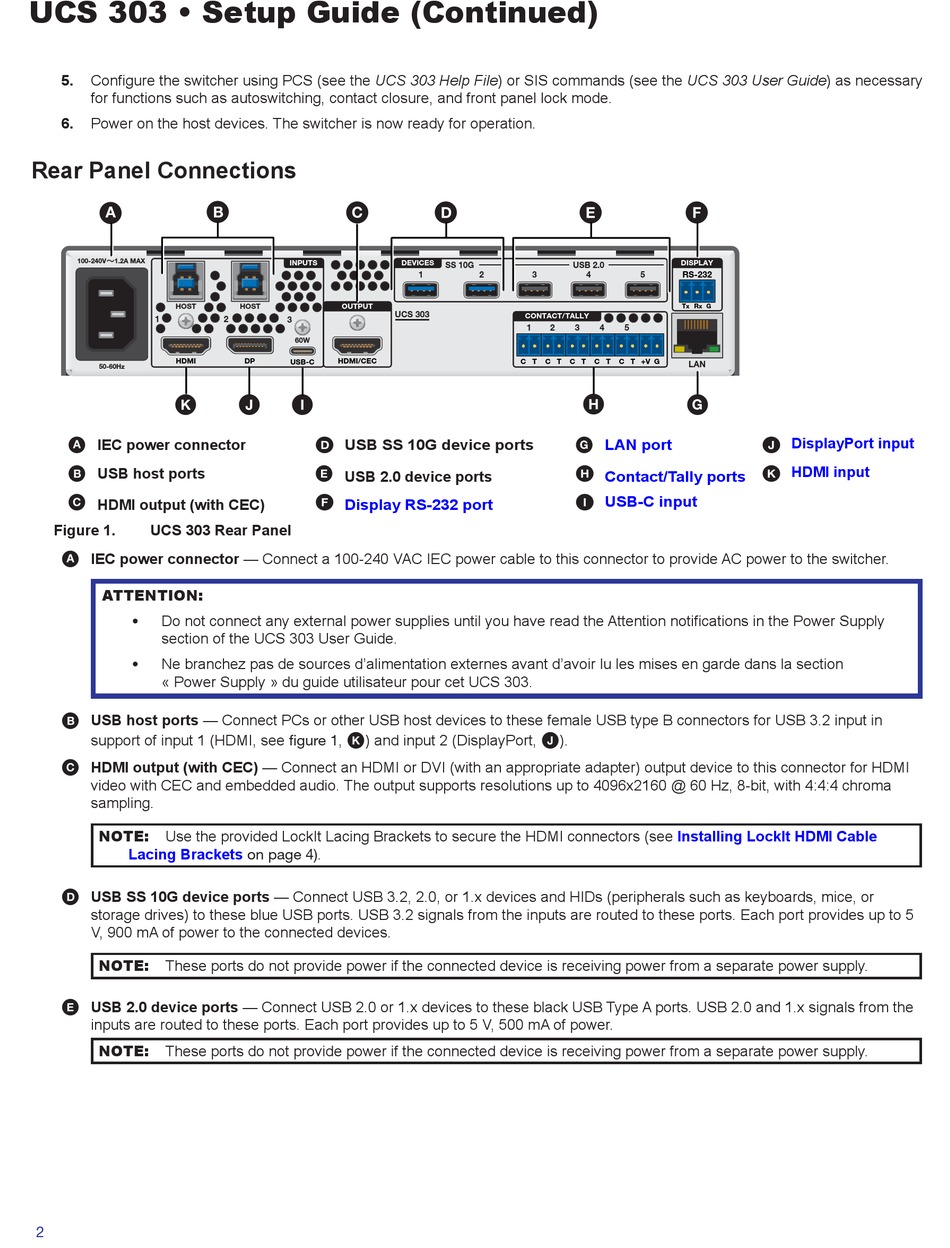

UCS 303 • Setup Guide (Continued)
5. Configure the switcher using PCS (see the UCS 303 Help File) or SIS commands (see the UCS 303 User Guide) as necessary
for functions such as autoswitching, contact closure, and front panel lock mode.
6. Power on the host devices. The switcher is now ready for operation.

Rear Panel Connections

B B B
A A A
~
100-240V 1.2A MAX
HOST
1
HDMI
50-60Hz
K K K
IEC power connector
A
USB host ports
B
C HDMI output (with CEC)
Figure 1. UCS 303 Rear Panel
IEC power connector — Connect a 100-240 VAC IEC power cable to this connector to provide AC power to the switcher.
A
ATTENTION:
•
Do not connect any external power supplies until you have read the Attention notifications in the Power Supply
section of the UCS 303 User Guide.
•
Ne branchez pas de sources d'alimentation externes avant d'avoir lu les mises en garde dans la section
« Power Supply » du guide utilisateur pour cet UCS 303.
USB host ports — Connect PCs or other USB host devices to these female USB type B connectors for USB 3.2 input in
B
support of input 1 (HDMI, see figure 1,
HDMI output (with CEC) — Connect an HDMI or DVI (with an appropriate adapter) output device to this connector for HDMI
C
video with CEC and embedded audio. The output supports resolutions up to 4096x2160 @ 60 Hz, 8-bit, with 4:4:4 chroma
sampling.
NOTE:
Use the provided LockIt Lacing Brackets to secure the HDMI connectors (see
Lacing Brackets
USB SS 10G device ports — Connect USB 3.2, 2.0, or 1.x devices and HIDs (peripherals such as keyboards, mice, or
D
storage drives) to these blue USB ports. USB 3.2 signals from the inputs are routed to these ports. Each port provides up to 5
V, 900 mA of power to the connected devices.
NOTE:
These ports do not provide power if the connected device is receiving power from a separate power supply.
USB 2.0 device ports — Connect USB 2.0 or 1.x devices to these black USB Type A ports. USB 2.0 and 1.x signals from the
E
inputs are routed to these ports. Each port provides up to 5 V, 500 mA of power.
NOTE:
These ports do not provide power if the connected device is receiving power from a separate power supply.
2
C C C
INPUTS DEVICES
HOST
OUTPUT
UCS 303
2 3
60W
DP HDMI/CEC
USB-C
J J J I I I
USB SS 10G device ports
D
E
USB 2.0 device ports
F Display RS-232 port
) and input 2 (DisplayPort,
K
on page 4).
D D D E E E
SS 10G USB 2.0
1 2 3 4
CONTACT/TALLY
1 2 3
C T C T C T C T
H H H
G
H
I
).
J
F F F
DISPLAY
5 RS-232
Tx Rx G
4 5
C T +V G
LAN
G G G
LAN port
J
K
Contact/Tally ports
USB-C input
Installing LockIt HDMI Cable
DisplayPort input
HDMI input
