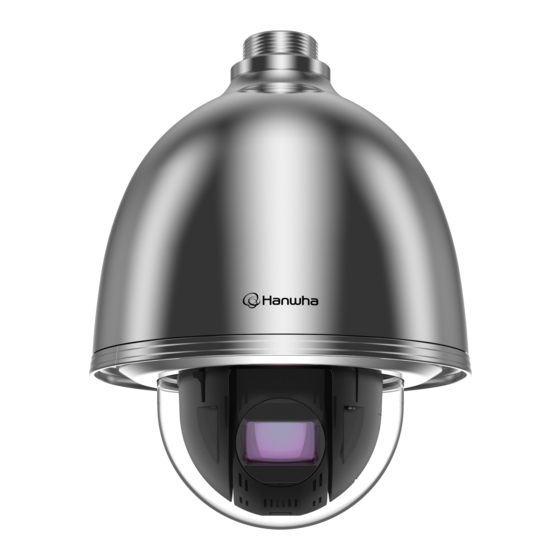

Hanwha Vision QNP-6320HS User Manual
  1. Manuals
  2. Brands
  3. Hanwha Vision Manuals
  4. Security Camera
  5. QNP-6320HS
  6. User manual

Hanwha Vision QNP-6320HS User Manual

Hide thumbs Also See for QNP-6320HS:
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CAMERA
User Manual
QNP-6320HS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QNP-6320HS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanwha Vision QNP-6320HS

Summary of Contents for Hanwha Vision QNP-6320HS

  • Page 1 NETWORK CAMERA User Manual QNP-6320HS...
  • Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 21. Installing or using the product in water can cause serious damage to the product. 22. If your product works normal, the degree of preset precision is 0.2˚. In the case of reboot due to outage, firmware upgrade, etc., its tolerance might have to be adjusted after checking for any changes in Preset setup.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Network I/O box - separately sold product Optional Accessories for Installation At a Glance APPENDIX Troubleshooting...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    WHAT’S INCLUDED NETWORK I/O BOX - SEPARATELY SOLD PRODUCT Please check if your camera and accessories are all included in the product package. Appearance Item Name Description Model Name (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description...

  • Page 8: At A Glance

    overview AT A GLANCE Mounting surface Appearance Inside Item Description Cable bushing A waterproof rubber cap, which allows a network cable to go through it. Item Description Network Port Port for connection with the network using an Ethernet cable. Housing Protects the internal PTZ mechanism from direct sunlight, external shock, and corrosion.

  • Page 9: Installation & Connection

    installation & connection INSTALLATION Inserting a Micro SD Card 1. Using the screw driver, loosen 3 screws by turning them Precautions before installation counterclockwise and separate the dome cover. Ensure you read out the following instructions before installing the camera: ~ Select an installation site that can hold at least 5 times the camera’s weight.
  • Page 10 installation & connection Removing a Micro SD Card Installing by wall mount Gently press down on the exposed end of the memory card as shown in 1. Using a Torx L wrench, turn the three screws counterclockwise to remove the the diagram to eject the memory card from the slot.
  • Page 11 5. Attach the housing to the bracket by turning it clockwise. 8. Align the holes of the camera body and the housing and turn them slightly. 6. Attach the camera’s safety cable to the housing. 9. Using a Torx L wrench, turn the three screws clockwise to tighten the housing.

  • Page 12: Connecting With Other Device

    installation & connection Notes for Waterproofing CONNECTING WITH OTHER DEVICE ` Installing the unit on the wall by combining the outdoor housing and wall mount 1. Install the wall mount on the vertical wall. If the mount is Powering and networking Concrete wall installed on an inclined wall, moisture can penetrate inside the Connect the PoE+ supported router or PoE+ injector with the PoE port of the camera.
  • Page 13 Network Cable Specification Connecting audio and alarm I/O You can connect audio and alarm using a network I/O box separately sold. Item Contents Remark Connector RJ45 (10/100BASE-T) Ethernet 10/100BASE-T Microphone Cable UTP Category 5e Max Distance 100 m DC Resistance ≤ 0.125 Ω/m Network PoE Support PoE+...

  • Page 14: Network Connection And Setup

    network connection and setup network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 15: Connecting The Camera Directly Tusing Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 16: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. QNP-6320HS - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 17: Port Range Forward (Port Mapping) Setup

    PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 18: Connecting To The Camera From A Shared Local Pc

    network connection and setup CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 19: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 20: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network.

  • Page 21: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is PROBLEM SOLUTION set to <Enable>, but no notification A. Check <Data & Time> settings. When an Windows 10 user accesses e-mail reaches me even when an B.
  • Page 22 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
