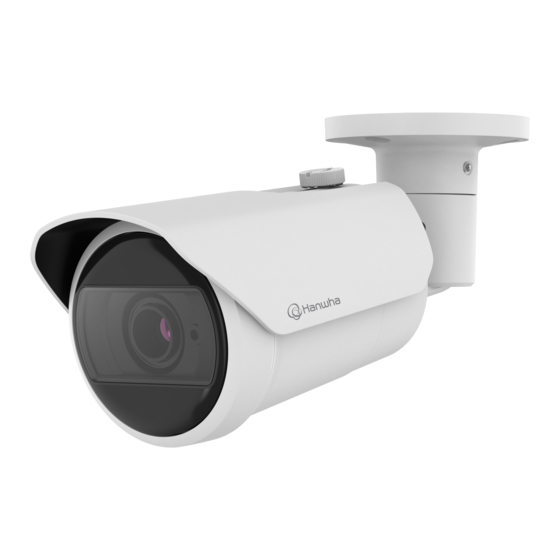

Hanwha Vision QNO-C8083R User Manual
Hide thumbs Also See for QNO-C8083R:

Advertisement

NETWORK CAMERA
User Manual
QNV-C9083R/QNV-C8083R
QNO-C9083R/QNO-C8083R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QNO-C8083R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hanwha Vision QNO-C8083R

  • Page 1 NETWORK CAMERA User Manual QNV-C9083R/QNV-C8083R QNO-C9083R/QNO-C8083R...
  • Page 2 Network Camera User Manual Copyright ©2023 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 16. This product is intended to be supplied by a UL Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2” and rated from PoE (48Vdc), 0.25A. (QNO-C9083R/QNO-C8083R) The lightning flash with arrowhead symbol, within an equilateral triangle, is 17.
  • Page 4 When a new product box is opened (or during the initial use of the product), moisture might build up on the glass of the camera. The built-up moisture disappears naturally within a few QNO-C9083R/QNO-C8083R hours after powered on. Do not arbitrarily loosen or tighten the gore valve.
  • Page 5: Table Of Contents

    CONTENTS OVERVIEW NETWORK CONNECTION AND Important Safety Instructions Connecting the Camera Directly to Local Recommended PC Specifications Area Networking SETUP Recommended Micro SD/SDHC/SDXC Connecting the Camera Directly to a DHCP Memory Card Specifications Based DSL/Cable Modem NAS recommended specs Using Device Manager Optional Accessories for Installation Automatically searching camera Configuring IP address...
  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)
  • Page 7 Outdoor Vandal Dome Camera Outdoor Bullet Camera QNV-C9083R/QNV-C8083R QNO-C9083R/QNO-C8083R English _7...
  • Page 8: Optional Accessories For Installation

    QNV-C9083R/ QNV-C8083R SBP-300WMW (Wall Mount) SPP-C7400 SBP-140HMW * SBP-300PMW2 required for SBD-140PMW SBP-300PMW2 pole installation (Pole Mount) SBV-140TMW (Tilt Mount) SBP-300WMW1 (Wall Mount) * SBP-300PMW2 required for pole installation QNO-C9083R/ QNO-C8083R SBD-140PMW SBO-140BW SBO-090GP *SBO-090GP required for installation 8_ overview...
  • Page 9 Ceiling Mount Model name Corner Mount Parapet Mount Installation Box Assembly Individual Parts SBP-300LMW QNV-C9083R/ QNV-C8083R SBP-C15P SBP-300KMW1 SBP-180CMB SBP-140CMB SBP-300NBW SBP-150CMI SBP-300CMI SBP-300CMW SBP-150CMP SBP-300CMW1 SBP-300CMP SBP-900CMW SBP-900CMP SBP-156KMW SBP-156LMW1 QNO-C9083R/ QNO-C8083R English _9...
  • Page 10: Outdoor Vandal Dome Camera

    outdoor vandal dome camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount-plate Camera-body Wiring hole cover Dome-cover <QNV-C9083R/QNV-C8083R> IR LED Audio/Alarm cable port Illumination Sensor Lens Option (not included) Reset button SPP-C7400 Use installation screws of at least M4, L30 for the installation of this product.
  • Page 11: Installation

    INSTALLATION 2. Remove the camera body by turning the mount plate fastening screws counterclockwise. Note that it is not necessary to loosen the screws completely. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 12 outdoor vandal dome camera Inserting a Micro SD card Removing a Micro SD card Insert the micro SD card into the micro SD card slot on the camera body in the arrow direction. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot.
  • Page 13 Installation (mount plate) When connecting cables from the side, first remove the wiring hole cover of the dome cover. [Directly installing on wall/ceiling] 1. Place the mount plate on the desired location considering the direction to be monitored, mark the locations for the screw holes and cable holes, and then drill the holes.
  • Page 14 outdoor vandal dome camera [Installing using pipe] Installation (camera body) 1. When connecting and installing a pipe, you can remove the wiring hole cover of the dome cover. Use a cable bushing compliant with the network cable to be connected. As shown in the picture, remove the wiring hole cover of the lower dome cover and install the pipe Camera main: use a cable with the diameter of Ø5 to Ø6.5 according to the instructions below.
  • Page 15 4. Insert the cable bushing of the network cable into the camera body. [Installing audio/alarm cables (separately sold)] 6. Remove the cable bushing next to the PoE port from the camera body. 5. Connect the network cable connector to the PoE port of the camera body. 7.
  • Page 16 outdoor vandal dome camera 8. Connect the audio/alarm cable connector to the audio/alarm cable port of the camera body. 10. Adjust the lens to the desired direction with reference to “Adjusting the monitoring direction for the camera” section. (page 18) If you tilt the lens, you may need to adjust the lens as this may block the screen.
  • Page 17 Outdoor installation Be careful not to alter the monitoring direction of your camera. When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.
  • Page 18: Adjusting The Monitoring Direction For The Camera

    outdoor vandal dome camera ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Tilt Lens Rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. At this time, rotating the main body of the camera in the left and right direction is called PAN, and adjusting the angle of the camera is called TILT.
  • Page 19: Outdoor Bullet Camera

    AT A GLANCE As for each sales country, accessories are not the same. Sunshield fixing screw Tooth washer Sunshield <QNO-C9083R/QNO-C8083R> Camera body Port box PoE port Use installation screws of at least M4, L30 for the installation of this product.
  • Page 20: Installation

    outdoor bullet camera INSTALLATION Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 21 Installation 4. Loosen the fixing screws of each control part to adjust the monitoring direction of the camera. Note that it is not necessary to loosen the screws completely. [Directly installing on wall/ceiling] Connect a monitoring device to the USB port and then monitor and adjust it. 1.
  • Page 22 outdoor bullet camera 5. Use the sunshield mounting screws and tooth washers to join the sunshield to the camera body. TR20 <Tilt> When adjusting the camera monitoring direction, loosen the corresponding fixing screws, adjust the camera, and then tighten the screws. Forcibly adjusting the camera while the screws are fastened may cause scratches and malfunction. 22_ outdoor bullet camera...
  • Page 23 How to connect the RJ45 waterproof cable to a LAN cable Outdoor installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be 1. Insert it through the arrow direction. purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.
  • Page 24: Installation & Connection

    PoE Router PoE Router Ethernet WiFi dongle <QNO-C9083R/QNO-C8083R> Ethernet The Micro USB port of the product is provided for easier installation, and is not recommended for monitoring purposes. <QNV-C9083R/QNV-C8083R> The Micro USB port of the product is provided for easier installation, and is not recommended for monitoring purposes.
  • Page 25 Powering and networking Connecting WiFi Connect the PoE device with the PoE port of the camera. Camera Setup 1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port. Connect and use a PoE enabled router. Use a PoE device that complies with the IEEE 802.3af standard. Smartphone Setup 1.
  • Page 26 installation & connection Connecting to Audio Input/Output ~ Audio Codec - Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate: 16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling Frequency: 16kHz) Speaker ~ Full duplex Audio...
  • Page 27 Connecting to the I/O port box To connect the external sensor Connect the Alarm I/O cable to the corresponding port of the port box. Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the other strand to the [GND] port.
  • Page 28: Connecting The Camera Directly To Local Area Networking

    network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
  • Page 29: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).
  • Page 30: Manually Registering Camera

    network connection and setup Configuring Dynamic IP AUTOMATICALLY CONFIGURING IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically ~ Example of the Dynamic IP environment configure the IP. QNV-C9083R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2.
  • Page 31: Port Range Forward (Port Mapping) Setup

    PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.
  • Page 32: Connecting To The Camera From A Shared Local Pc

    network connection and setup CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.
  • Page 33: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.
  • Page 34: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 characters, you must use at least 3 system over the network.
  • Page 35: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION Voice is not recorded even though When an Windows 10 user accesses ~ You must enable the <Audio In> check box in <Basic> - <Video Profile>. ~ This is what happens when microphone driver has been set to Realtek driver. audio input settings are configured.
  • Page 36 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
