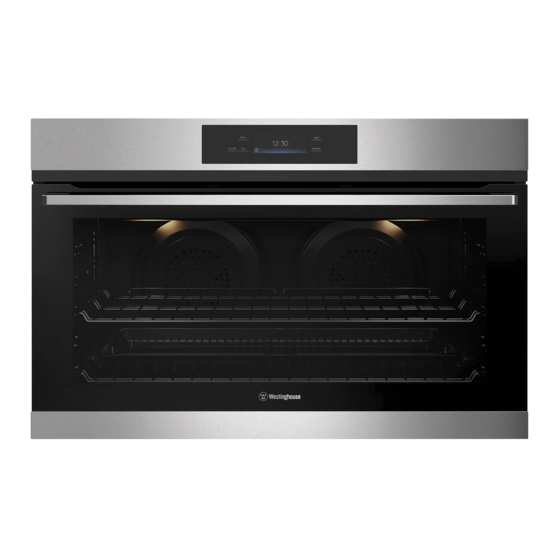

Westinghouse WVE9915SDA User Manual

90cm electric built-in ovens
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
Enjoy peace of mind.
Register your appliance today.
Stay updated on better living services, safety notices and
shop for accessories.
1. Open the camera app on your smartphone and
point at the QR code to scan
Product Registration QR code is located on the
front of your appliance or inside the door rim*.
2. Tap the notification or link to open the registration form
3. Complete your details and enjoy peace of mind
*Exact location of QR code may vary depending on oven model
90cm ELECTRIC
BUILT-IN OVENS
WVE9915SDA/DDA
IMPORTANT SAFETY INSTRUCTIONS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WVE9915SDA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westinghouse WVE9915SDA

Summary of Contents for Westinghouse WVE9915SDA

  • Page 1 2. Tap the notification or link to open the registration form 3. Complete your details and enjoy peace of mind *Exact location of QR code may vary depending on oven model 90cm ELECTRIC BUILT-IN OVENS WVE9915SDA/DDA IMPORTANT SAFETY INSTRUCTIONS...

  • Page 2: Table Of Contents

    Westinghouse manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read this user manual carefully and store in a Installation, cleaning and servicing warnings handy place for later reference. Pass the user manual • An authorised person must install this appliance. on to possible new owners of the appliance. (Certificate of Compliance to be retained).
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING WARNING WARNING WARNING Oven Child safety • During use the appliance becomes hot. Care should • This appliance is not intended for use by persons be taken to avoid touching the hot surfaces inside (including children) with reduced physical, sensory the oven.

  • Page 5: Description Of Your Appliance

    DESCRIPTION OF YOUR APPLIANCE WVE9915SDA/DDA Programmable electric oven Control Panel 170˚C DESCRIPTION OF YOUR APPLIANCE...

  • Page 6: Installation Of The Appliance

    INSTALLATION OF THE APPLIANCE Cabinet requirement IMPORTANT TIPS & INFORMATION Models are designed to be built into cabinetry either To minimise the weight of the oven for easier below a benchtop or into a vertical cabinet. installation, remove the oven door and oven internal accessory pack.
  • Page 7 Underbench installation Vertical cabinet installation Your underbench oven looks best when the control The oven can be built into a vertical cabinet in the panel is directly under the benchtop. An upper infill same manner as an underbench. The required cavity panel may be added if the cooktop placed above the dimensions are the same and the product is secured benchtop is too deep.
  • Page 8 INSTALLATION OF THE APPLIANCE (continued) Cabinet construction for built in oven For the best integration within a kitchen, install this appliance in a cupboard that gives a flush fit with the surrounding cupboard fronts. A recess of 20mm is ideal. NOTE: Your appliance must be mounted on a horizontal surface for the full width and depth of the product.

  • Page 9: Wiring Requirements

    This appliance must be installed by an authorised person, according to all codes and regulations of: • ELECTRICAL supply authorities. • Building regulations. Entry point of electrical cable • Local government and council authorities. • AS/NZS 5601.1. MODEL TOTAL KW • AS/NZS 3000. WVE9915SDA/DDA WIRING REQUIREMENTS...

  • Page 10: Before Operating Your Appliance

    BEFORE OPERATING YOUR APPLIANCE FOR THE FIRST TIME Preparing your appliance for the first time • Please remove all internal boxes and bags from the oven before operation. • Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth.

  • Page 11: Installing Your Oven Accessories

    INSTALLING YOUR OVEN ACCESSORIES Installing the side racks Insert the rear peg into the rear access hole provided, ensuring peg is fully inserted. Then locate the front peg into the front access hole and push in firmly. Fitting the shelves between the side rack wires The shelves are designed so that they have maximum extension but cannot be accidentally pulled right out.
  • Page 12 INSTALLING YOUR OVEN ACCESSORIES (continued) Fitting grill dish and insert Your oven comes with a full width grill dish and a grill insert. The grill dish insert is designed with flexibility to adjust distance between the food and the grill element. Maximum grill power Grill dish insert brings the food closer to the grill element.

  • Page 13: Using Your Oven

    USING YOUR OVEN 170°C On / Off Press and hold to turn the oven on and off Favourites Lists the favourite settings Menu Lists the oven functions Touch display Shows the current settings of the oven Preheat To deactivate the Preheat function Light To turn the lamp on and off Press...
  • Page 14 USING YOUR OVEN (continued) Display indicators Basic indicators – to navigate on the display To confirm the selection / setting To go one level back in the menu To undo the last action How to turn the oven on and off To turn the options on and off 12:34 Sound alarm function indicators –...
  • Page 15 Take a shortcut! Run in the empty oven before the first use. Remove all accessories and removable shelf supports from the oven. Set the temperature to 180°C for the function: Fan force d . Let the oven operate for 30 minutes. How to set Assisted Cooking The oven can emit an odour and smoke during burn off.
  • Page 16 USING YOUR OVEN (continued) Take a shortcut! Press + to add the setting to the list of: Favourites. Press – press to reset the setting. – press to cancel the setting. How to choose end option Function lock Press This function prevents an accidental change of the heating Press function.
  • Page 17 Symbol Function description Heat comes from the element surrounding the fan. This fan circulates the hot air around the oven Fan Forced cavity so that you can put your food in different places in the oven and still cook them at the same time.
  • Page 18 USING YOUR OVEN (continued) Symbol Function description The ‘Rapid Heat’ function is ideal for cooking frozen precooked foods such as savoury pastries, Rapid Heat pizzas, mini meals (TV dinners), meat pies and fruit pies. Heat comes from the element surrounding the fan as well as a smaller element above the food. Simply place the food in the oven straight from the freezer and heat.
  • Page 19 Symbol Function description The ‘Keep Warm’ function is a low temperature oven function designed to keep your food at a perfect eating temperature without cooking it further. Heat comes from the smaller elements above the food and is circulated by the fan. Use ‘Keep Warm’ to keep your food warm while you Keep warm prepare the rest of the meal or afterwards while you wait for the late arrival.
  • Page 20 USING YOUR OVEN (continued) Main menu Press Menu Menu item Application Assisted cooking Lists automatic programmes. Cleaning Lists cleaning programmes. Favourites Lists the favourite settings. Options To set the oven configuration. Settings Setup To set the oven configuration Service Shows the software version and configuration Submenu for Options Submenu Application...
  • Page 21 Submenu for Setup Submenu Application Language Sets the oven language. Display brightness Sets the display brightness. Key tones Turns the tone of the touch fields on and off. It is not possible to mute the tone for Buzzer volume Sets the volume of key tones and signals. Time of day Sets the current time and date.
  • Page 22 USING YOUR OVEN (continued) Your oven has the ability to add steam while baking. Get to know your new oven with this Cooking with steam is a great addition to straight ‘hot ‘Simple Test Cake’ air’ cooking. Steam brings out all the natural flavours and goodness in the food, cooks evenly from surface to Although we strive for a perfect performing oven, it’s centre and retains more nutrients and vitamins.
  • Page 23 • Make sure dishes will fit into the oven before you switch it on. • Keep edges of trays at least 40mm from the side of the oven. This allows free circulation of heat and ensures even cooking. • Do not open the oven door more than necessary. •...
  • Page 24 USING YOUR OVEN (continued) Choosing the best oven settings The following table is intended as a guide and experience may show some variation in cooking times necessary to meet individual requirements. We recommend that you preheat your oven for 30 minutes. Modes without oven fan FOOD TEMPERATURE •C...
  • Page 25 Easy Bake + Steam function WATER IN CAVITY TEMPERATURE OVEN SHELF FOOD TIME IN MINUTES WELL (ML) • POSITION* Yeast goods Bread loaves 180 - 200 2 or 3 35 - 45 Bread rolls 190 - 210 2 or 3 20 - 25 Gluten free bread 180 - 200...
  • Page 26 Roasting Meat As a method of cooking, grilling can be used to: • Enhance the flavours of vegetables, fish, poultry Place the meat in the oven and set the temperature and meat. between 180°C and 200°C. (It is recommended • Seal the surface of the food and retain the to wrap your meats in an oven roasting bag or foil natural juices.

  • Page 27: Dealing With Cooking Problems

    DEALING WITH COOKING PROBLEMS (see also TROUBLESHOOTING) PROBLEM CAUSES REMEDIES Uneven cooking: • Incorrect shelf position. – Select shelf that puts food in the centre of the oven. • Trays not centralised. – Centre trays. • Air flow in oven uneven. –...

  • Page 28: Cleaning Your Oven Accessories

    CLEANING YOUR OVEN Oven WARNING WARNING • Always keep your appliance clean. Ensure that fats • Always switch off power to the oven before and oils do not accumulate around elements or fans. cleaning. • Always keep the oven shelves, baking tray, grill dish •...
  • Page 29 CLEANING YOUR OVEN (continued) Cleaning your oven door Cleaning your oven door The oven door has been designed to allow the two inner door glasses to be removed for cleaning without WARNING WARNING removing the door from the product. • DO NOT use the oven without the inner and Removing the inner door glass for cleaning: middle door glass fitted.

  • Page 30: Troubleshooting

    TROUBLESHOOTING Faults If there is a problem with the oven and/or grill, please: • Check the points listed below before calling for service. It may be possible to avoid a call by fixing the problem yourself – and so continue cooking. NOTE: We may charge for service even in the guarantee period if your problem is due to the causes listed below.

  • Page 31: Warranty

    (c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products In addition, Electrolux is not liable under this warranty if: Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004...
  • Page 32 0800 10 66 10 email: customercare@electrolux.co.nz web: westinghouse.co.nz and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved. © 2023 Electrolux Home Products Pty Ltd ABN 51 004 762 341...

This manual is also suitable for:

Wve9915dda
