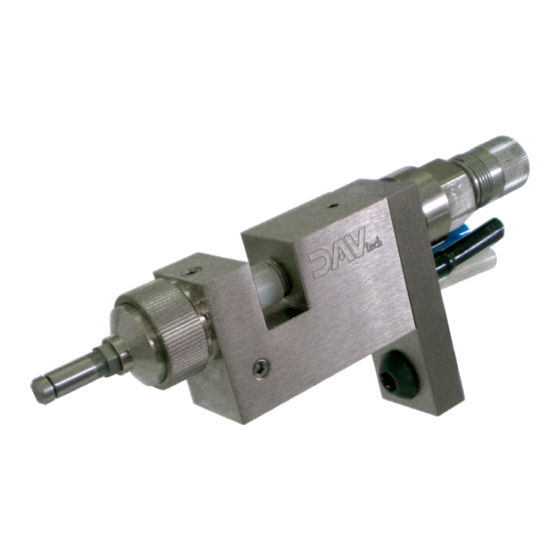

- Page 1 Installation and maintenance guide 360° SPRAY VALVE FOR INTERNAL DAS 50N DAV TECH SRL Via Ravizza, 30 - 36075 Montecchio Maggiore (VI) - ITALY Tel. 0039 0444 574510 - Fax 0039 0444 574324 davtech@davtech.it - www.davtech.it...
- Page 2 Installation and maintenance guide Index 1 INTRODUCTION pag. 3 1.1 The manual 1.2 Warranty 1.3 Goods receiving 2 TECHNICAL DESCRIPTION pag. 3 2.1 Valve operation 2.2 Technical specifications 2.3 Connection diagram 3 INSTALLATION pag. 4 3.1 Mounting in the machine 3.2 Drive the valve 3.3 Fluid connection 3.4 Setting of the dispensed shot...
-
Page 3: Technical Description
Reproduction of any part of this manual, in any form, without the express written permission of DAV Tech. The text and illustrations in this manual are not binding, the DAV tech reserves the right, at any time and without notice, the right to make any changes to improve the product or for reasons of character manufacturing or commercial. -
Page 4: Installation
Fastening hole 3.2 Drive the valve The DAS 50 / DAS 50N spray valve must be operated by two separate solenoid valves; a 3/2 way for the pilot (black tube) and a 3/2 way for the nebulization (blue tube). The operating pressure must be between 4 ... 6 bar. -
Page 5: Adjustment Knob
360° SPRAY VALVE FOR INTERNAL DAS 50N 3.4 Setting of the dispensed shot Pin stroke adjustment determines the amount of fluid delivered. > Version with micrometric adjustment: To adjust the travel, act on the adjustment knob at the top of the valve. -
Page 6: Troubleshooting
Dirt in the air cap Clean the air cap 6 SPARE PARTS AND DIMENSIONS 6.1 Overall dimensions DAS 50 / DAS 50N The size of the enclosure depends on the type of extender used and its length. Download 3D models from our web-site. - Page 7 360° SPRAY VALVE FOR INTERNAL DAS 50N listino ricambi 2023 5.2 Esploso ricambi DAS 50 N 5.3 Lista ricambi DAS 50 N CODE DESCRIPTION 0003.36000009 MICROMETRIC REGULATION COMPLETE 0003.000200 PRESSURE SPRING 0003.36000006 FIXING PLATE 0003.010407 BLUE HOSE (ATOMIZING AIR) 0003.050407 CLEAR HOSE (FLUID) 0003.140407...
- Page 8 DAV TECH SRL Via Ravizza, 30 - 36075 Montecchio Maggiore (VI) - ITALY - Tel. 0039 0444 574510 - Fax 0039 0444 574324 davtech@davtech.it - www.davtech.it We reserve the right to modify at any time, without notice, the specifications, dimensions and weights in this manual.
