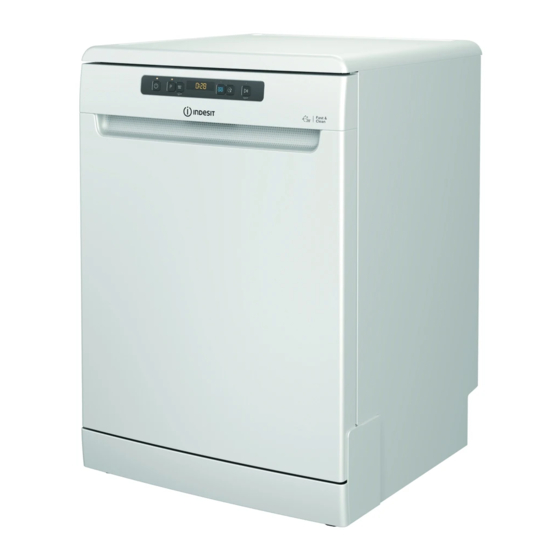

Indesit DFO 3T133 A F Quick Manual

Quick Guide
THANK YOU FOR BUYING AN INDESIT PRODUCT.
In order to receive a more complete assistance, please
register your appliance on: www.indesit.com/register
Before using the appliance carefully read the Safety Instruction.
CONTROL PANEL
1. On-Off / Reset button with
indicator light
2. Program selection button with
indicator light
3. Multizone button with indicator
light / Tablet (Tab)
4. Eco program indicator light
5. Display
6. Program number and remaining
time indicator
FIRST TIME USE
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on
the machine's functional components.
• It is mandatory that the salt reservoir never be empty.
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher and must be
filled when the SALT REFILL indicator light
1. Remove the lower rack and unscrew the reservoir cap
(anticlockwise).
2. Only the first time you do this: fill the salt reservoir
with water.
3. Position the funnel (see figure) and fill the salt reservoir
right up to its edge (approximately 1 kg); it is not unu-
sual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly, so that no detergent can get into
the container during the wash program (this could damage the water
softener beyond repair).
Whenever you need to add salt, it is mandatory to complete the proce-
dure before the beginning of the washing cycle to avoid corrosion.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse
aid dispenser A should be filled when the RINSE
AID REFILL indicator light
D
panel is lit.
C
NEVER pour the rinse aid directly into the appliance
tub.
A
PROGRAMS TABLE
Program
Eco 50°- Program is suitable to clean normally soiled tableware, that for
this use, it is the most efficient programme in terms of its combined ener-
1.
gy and water consumption, and that it is used to assess compliance with
the EU Ecodesign legislation.
Auto Intensive 65°- Automatic program for heavily soiled dishes and
2.
pans (not to be used for delicate items).
3.
Auto Mixed 55° - Automatic program for normally soiled pans and dishes.
Glass 45° - Program for delicate items, which are more sensitive to high
4.
temperatures, for example glasses and cups.
Fast&Clean 28' 45° - Program to be used for half load of lightly-soiled
5.
dishes with no dried food residues. Without drying.
Extra Hygiene 65° - Normally or heavily soiled crockery, with additional an-
6.
tibacterial wash. Can be used to perform maintenance of the dishwasher.
Extra 50° - Program that allows to wash very big items loaded in the
7.
lower rack. Please apply detergent directly to tub instead of detergent
dispenser. Upper rack should be removed with this cycle.
Prewash - Use to refresh crockery planned to be washed later. No deter-
8.
gent to be used with this program.
Push&GO 50° - Everyday wash and dry cycle that ensures great cleaning
9.
performance in a short time without the need to pre-treat dishes.
7. Tablet (Tab) indicator light
8. Closed water tap indicator light
9. Rinse Aid refill indicator light
10. Salt refill indicator light
11. Push&GO button with
indicator light
12. Delay button with indicator light
13. Start/Pause button with
indicator light / Drain out
in the control panel is lit.
in the control
Programs description
PLEASE SCAN THE QR CODE ON YOUR
APPLIANCE IN ORDER TO HAVE MORE
DETAILED INFORMATION
1 2 3 4
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device C. Introduce the
detergent into the dry dispenser D only. Place the amount of detergent for
pre-washing directly inside the tub.
If all-in-one detergents are used, we recommend using the TABLET button,
because it adjusts the program so that the best washing and drying results
are always achieved.
Usage of detergent not designed for dishwashers may cause
malfunction or damage to the appliance.
WATER SOFTENING SYSTEM
Water softener automatically reduces water hardness, consequently pre-
venting scale buildup on heater, contributing also to better cleaning effi-
ciency. This system regenerates itself with salt, therefore it is required
to refill salt container when empty.
Frequency of regeneration depends on water hardness level setting - regen-
eration takes place once per 6 Eco cycles with water hardness level set to 3.
Regeneration process starts in final rinse and finishes in drying phase, be-
fore cycle ends.
• Single regeneration consumes: ~3.5L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.
Available
options
*)
-
-
-
-
-
-
-
5 6 7 8 9 10 11 12
Duration
Water
of wash
consumption consumption
program
(litres/cycle) (kWh/cycle)
(h:min)
**)
3:10 9.5
2:00 - 3:10 14.0 - 17.0
1:30 - 2:30 14.5 - 16.0
1:40 11.5
0:28 9.0
1:40 10.0
1:00 11.0
0:12 4.5
1:25 11.5
EN
13
Energy
0.85
1.50 - 1.85
1.15 - 1.30
1.20
0.50
1.30
1.20
0.01
1.10
