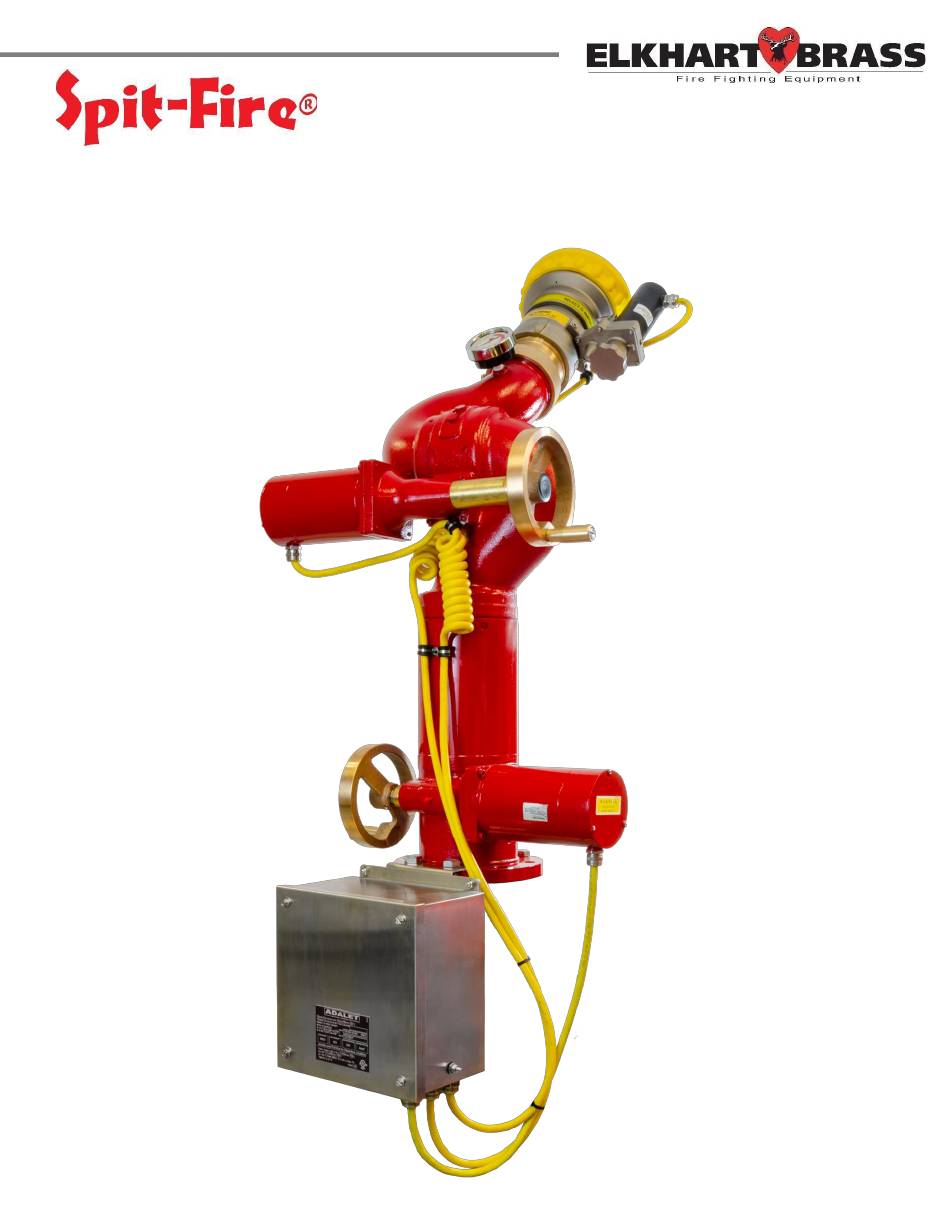

- Page 1 08394159 Monitor Installation, Operation, & Maintenance Instructions For ATEX Applications 1302 W • E , IN 46514 • 574-295-8330 • 800-346-0250 98370000 R EARDSLEY LKHART...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT SAFETY INFORMATION MONITOR CALLOUT DRAWING OVERVIEW INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS MAINTENANCE SPECIFICATIONS MONITOR HYDRAULIC DATA DIMENSIONAL DRAWINGS WIRING SPARE PARTS NOTES... -
Page 3: Product Safety Information
• Become thoroughly familiar with the hydraulic characteristics of this equipment, as well as the pumping system used to supply it. • Water valve’s that are provided by Elkhart Brass are programmed to close slowly to avoid water hammer. Always open and close valves slowly to avoid water hammer. -
Page 4: Monitor Callout Drawing

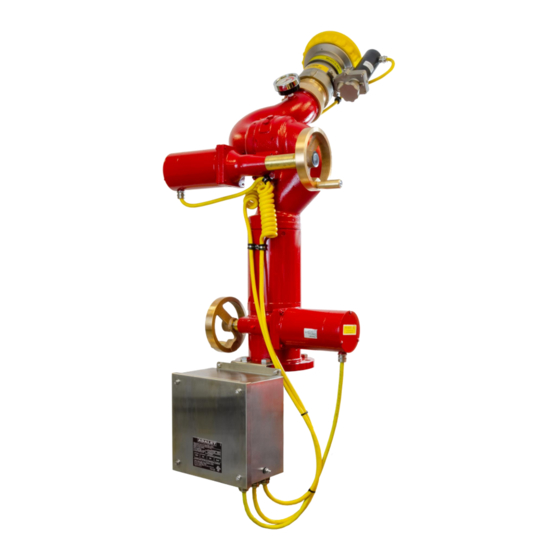

MONITOR CALLOUT Pressure Gauge Nozzle Manual Override Vertical Manual Override Double Race Bearings Constant Torque/Constant Current Motor Horizontal Manual Override Junction Box 4”-150# ANSI Flange Figure 1: Monitor Callout Drawing... -
Page 5: Overview
OVERVIEW ATEX Spit-Fire Monitor Features: • Construction: All brass with vaned 4” waterway • Mounting Flange: 4” 150# flat-face ANSI flange (raised face flange available as option) • Discharge: 3½” NHT male outlet • Stream Shaper: #284-B brass shaper included •... -
Page 6: Installation Instructions
Secure the inlet flange with eight (8) 5/8”-11 UNC Grade 5 hex head bolts. Torque bolts to 60-70 ft-lbs. if using Elkhart Brass supplied gaskets. If using a gasket supplied by others, follow manufacture’s guidelines. -
Page 7: Operating Instructions
• Valve Manual Override – The manual hand wheel will turn whenever the actuator is electrically operated. Do not attempt to operate the manual override handwheel if the actuator is in operation. Turning the manual override wheel on an Elkhart Brass supplied actuator clockwise closes the valve and turning the manual override wheel counterclockwise will open the valve. -
Page 8: Specifications
SPECIFICATIONS General Specs • Input Power 240 VAC (50/60Hz.) 1 Phase • Electrical Load 0.40 AMPS Per Motor • Monitor Dimensions 23” dia. x 52” h • Monitor Weight Approx. 300 lbs. MONITOR HYDRAULIC DATA Figure 4: Monitor Friction Loss Chart... -
Page 9: Dimensional Drawings
DIMENSIONAL DRAWING Figure 5: Monitor Dimensional Drawing... -
Page 10: Wiring
WIRING Figure 6: Monitor Cable Wiring to Junction Box Terminals... -
Page 11: Spare Parts
SPARE PARTS ATEX SPITFIRE MODEL # 8394159 PART NO. DESCRIPTION 460910SP1 MOTOR AND CABLE-ELECTRIC (240VAC) NOZZLE 46092SP1 MOTOR AND CABLE-ELECTRIC (240VAC) VERTICAL 460921SP1 MOTOR AND CABLE-ELECTRIC (240VAC) HORIZONTAL 33587000 PRESSURE GAUGE (0-300 PSI) -
Page 12: Notes
NOTES... - Page 13 LKHART RASS 1302 W EARDSLEY P.O. B 1127 E LKHART IN 46514 : 574-295-8330 • 800-346-0250 HONE : 574-293-9914 WWW.ELKHARTBRASS.COM © E ., I . 2021 LKHART RASS ® 08394159 M ONITOR , & M NSTALLATION PERATION AINTENANCE NSTRUCTIONS ATEX APPLICATIONS 98370000 R...
