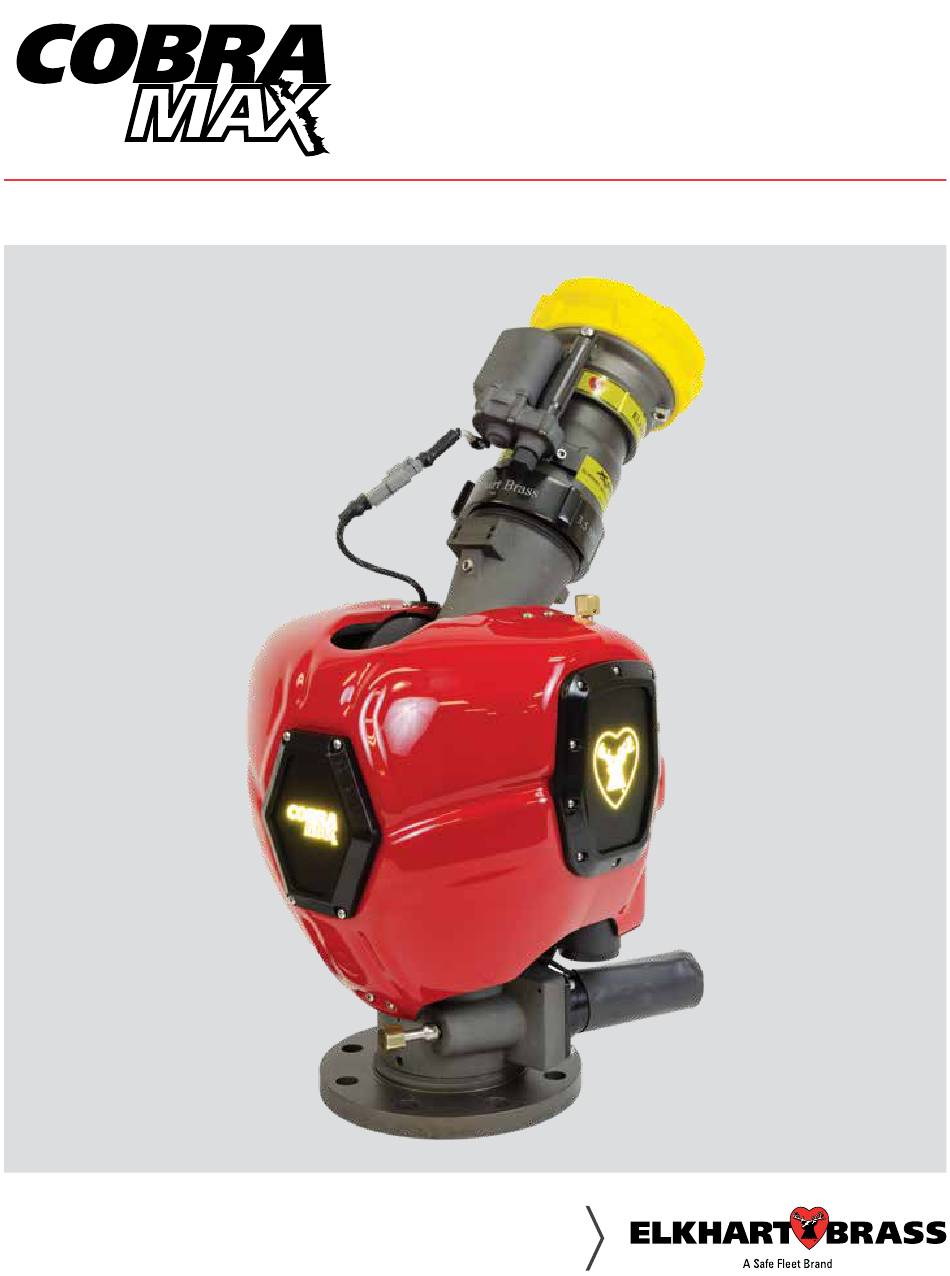

The Back Light Module displays the CobraMax Logo while the Side Light Modules display the Elkhart Brass Elk and Heart logo (standard). The optional Custom- Etched Side Lenses allow customers to personalize the look of the Side light modules with their own logo such as a department emblem, station number, or other desired image. - Page 3 Side Light Modules Back Light Module Shroud Cover CobraMax-Ready Mounting Bosses...
-
Page 4: Cobramax Installation
CobraMax Installation Reference the CobraMax Kit Parts Drawing on Pages 10-11 for more detail on parts used. 1. Position the monitor so that the discharge is pointed straight up away from its base as shown. Power off the monitor and disconnect its main power harness. Collect the following tools that will be required to perform the CobraMax installation. - Page 5 3. Remove the EXM2 Module by removing the four #8-32 screws holding it in place. Disconnect the Green Deutsch connector and remove its wedge lock. Remove the pin plugs from the appropriate holes and insert the wires of harnesses 37573000 as shown here.
- Page 6 5. Attach two Light Module Support brackets onto the back half of the monitor shroud with four of the provided Socket Head #8-32 screws as shown. Attach the Back Light Module to the back half of the shroud with the four Pan Head #8-32 screws provided (Insert the Light Module wires through the cutout in the shroud).
- Page 7 7. Attach the Front Shroud onto the monitor as shown with six of the #10-32 Pan Head Screws provided. Insert the nozzle wire harness through the shroud and install the rubber grommet in the hole as shown. Attach four of the Light Module Support Brackets into the locations shown using the provided #8-32 screws.
- Page 8 9. Apply a generous amount of Mobilux EP2 Lithium Grease or an appropriate O-ring compatible grease to the provided AS-568-048 and AS-568-049 O-Rings. Install the AS-568-049 O-Ring onto the Right and Left Light Module housings as shown. Install the AS-568-048 O-Rings into the Light Module Bezels as shown. (Reference: The -049 O-ring is larger than the -048 O-Ring) AS-568-049 O-Ring AS-568-048 O-Ring...
- Page 9 11. Use Channellock pliers to attach the override ¾" Nut or Handwheels removed previously to the override extensions. Use the same spring pins that were removed previously to hold them in place. Attach ¾" Nut Overrides Attach Handwheel Overrides 12. Reconnect the main power harness to the monitor and power on the monitor. Rotate the monitor and ensure that the monitor does not contact the shroud covers in a way that will cause damage to the shroud covers.
-
Page 10: Cobramax Parts Drawing
CobraMax Parts Drawing... -
Page 11: Cobramax Parts List
CobraMax Parts List... -
Page 12: Changing Light Module Colors
Changing Light Module Colors 1. On any connected EXM2 input device, press and hold AUX + OSC. All three light modules will begin flashing approximately 1 time every second. 2. Press either AUX or OSC to cycle between colors. Color choices are Blue, Green, Yellow, Red, and White. - Page 13 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Modifications made to this equipment not expressly approved by Elkhart Brass Mfg. Co., Inc., could void the users authority to operate the equipment.
