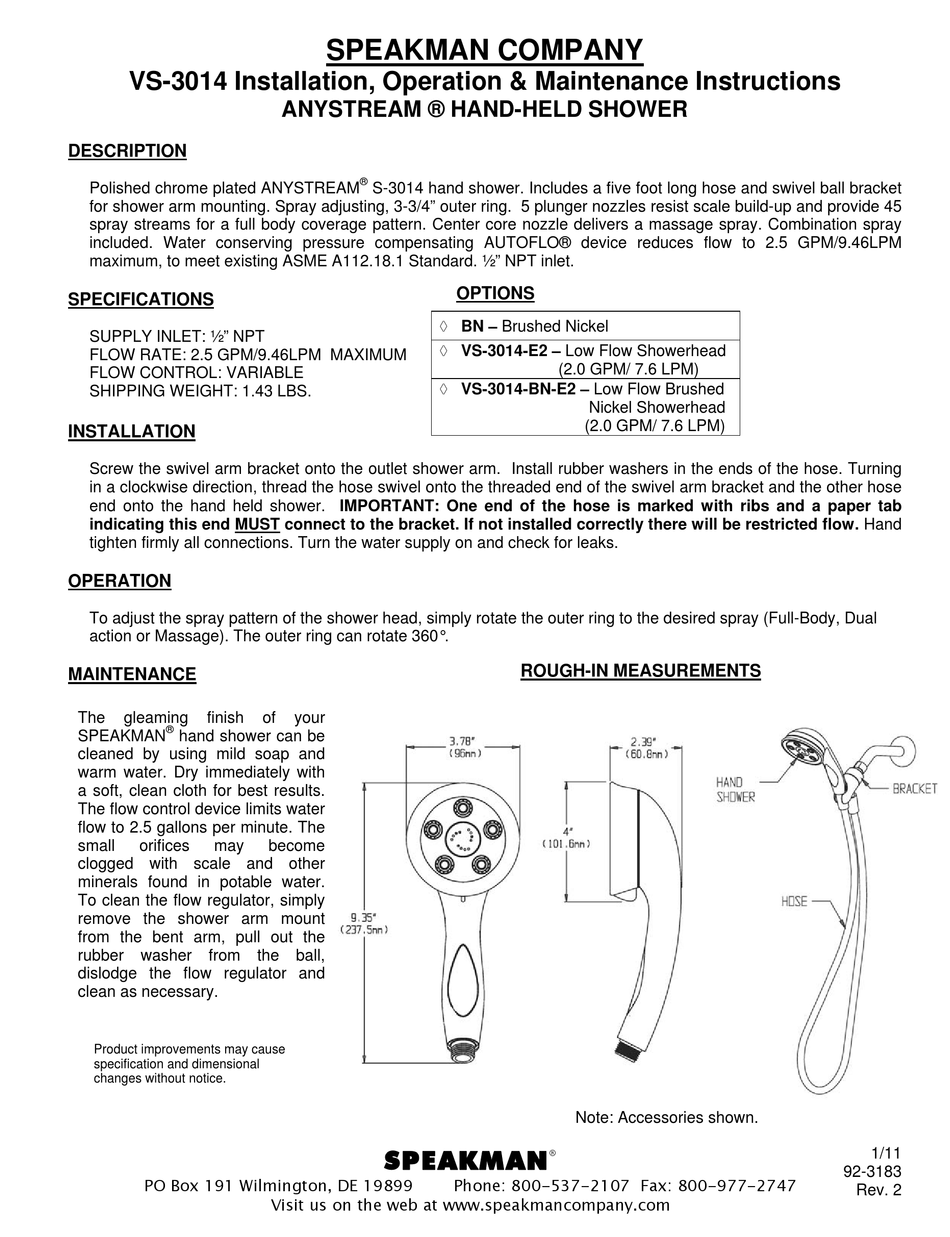

VS-3014 Installation, Operation & Maintenance Instructions

DESCRIPTION

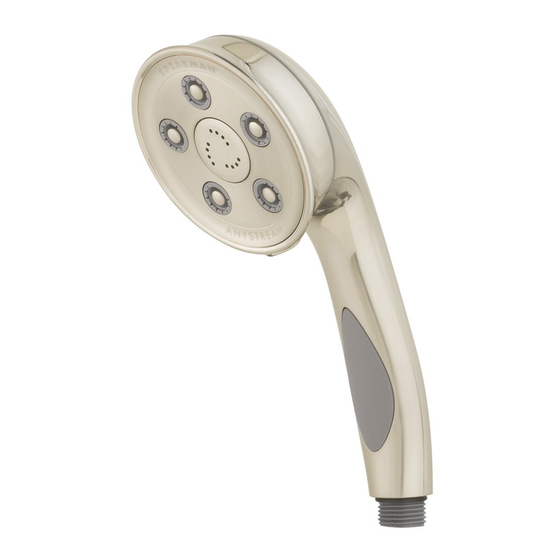

Polished chrome plated ANYSTREAM
for shower arm mounting. Spray adjusting, 3-3/4" outer ring. 5 plunger nozzles resist scale build-up and provide 45
spray streams for a full body coverage pattern. Center core nozzle delivers a massage spray. Combination spray
included. Water conserving pressure compensating AUTOFLO® device reduces flow to 2.5 GPM/9.46LPM
maximum, to meet existing ASME A112.18.1 Standard. ½" NPT inlet.

SPECIFICATIONS

SUPPLY INLET: ½" NPT
FLOW RATE: 2.5 GPM/9.46LPM MAXIMUM
FLOW CONTROL: VARIABLE
SHIPPING WEIGHT: 1.43 LBS.
Installation
Screw the swivel arm bracket onto the outlet shower arm. Install rubber washers in the ends of the hose. Turning
in a clockwise direction, thread the hose swivel onto the threaded end of the swivel arm bracket and the other hose
end onto the hand held shower. IMPORTANT: One end of the hose is marked with ribs and a paper tab
indicating this end MUST connect to the bracket. If not installed correctly there will be restricted flow. Hand
tighten firmly all connections. Turn the water supply on and check for leaks.

OPERATION

To adjust the spray pattern of the shower head, simply rotate the outer ring to the desired spray (Full-Body, Dual
action or Massage). The outer ring can rotate 360°.

MAINTENANCE

The gleaming finish
®
SPEAKMAN hand shower can be
cleaned by using mild soap and
warm water. Dry immediately with
a soft, clean cloth for best results.
The flow control device limits water
flow to 2.5 gallons per minute. The
small orifices may
clogged with scale and other
minerals found in potable water.
To clean the flow regulator, simply
remove the shower arm mount
from the bent arm, pull out the
rubber washer from the ball,
dislodge the flow regulator and
clean as necessary.
Product improvements may cause
specification and dimensional
changes without notice.
PO Box 191 Wilmington, DE 19899
SPEAKMAN COMPANY
ANYSTREAM ® HAND-HELD SHOWER
®
S-3014 hand shower. Includes a five foot long hose and swivel ball bracket
 BN – Brushed Nickel
 VS-3014-E2 – Low Flow Showerhead
 VS-3014-BN-E2 – Low Flow Brushed
of your
become
SPEAKMAN
Visit us on the web at www.speakmancompany.com

OPTIONS

(2.0 GPM/ 7.6 LPM)
Nickel Showerhead
(2.0 GPM/ 7.6 LPM)

ROUGH-IN MEASUREMENTS

Note: Accessories shown.
®
Phone: 800-537-2107 Fax: 800-977-2747
1/11
92-3183
Rev. 2
