Speakman COMMANDER SC-1210-AF Installation, Maintenance & Operation Instructions

SC-1210-AF Installation, Maintenance & Operation Instructions

DESCRIPTION

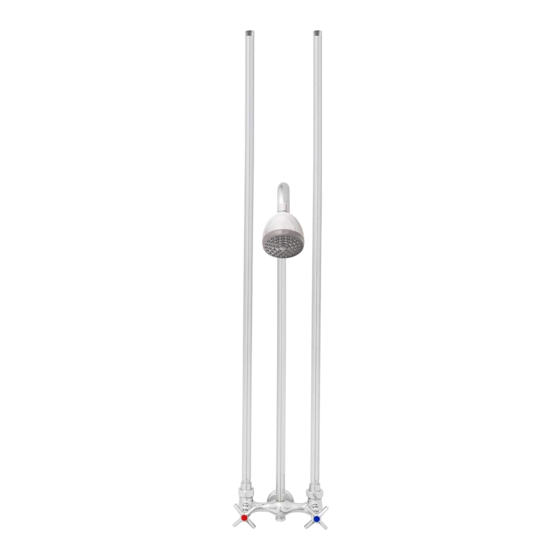

Speakman COMMANDER exposed chrome plated shower with PERFECT® valves on 6" centers. ¼ turn ceramic
cartridges covered by 25 year Silver warranty. Chrome plated patented vandal-resistant four arm handles with color-
coded indexes. ½" NPTM chrome plated brass risers. Reversible valve body. Polished chrome plated brass gooseneck
with supporting strap. S-2270-AF COSMOPOLITAN® showerhead with flow control device reduces flow to 2.5 GPM/9.46
LPM maximum to meet existing ANSI A112.18.1M Standard.

SPECIFICATIONS

SUPPLIES: ½" NPT FEMALE
FLOW RATE: SHOWERHEAD, 2.5 GPM/9.46 LPM MAX (FIXED)
SHIPPING WEIGHT: 12.74 LBS.

OPTIONS

◊
LH –
Less Showerhead
◊
BH –
Brass Handles

INSTALLATION

NOTE: Supply lines must have ½" NPT female threaded ends and be 1-1/8" from center of supply line to finished wall.
Supplies must be on 6" centers. Recommended height from center of valve body to floor is 54". Valve body is reversible to
take supplies from below.
Apply pipe sealant to one end of supply pipes. Screw pipes into supply lines.
Apply sealant to threads of supply lines. Slip coupling nuts onto lines and screw swivels up hand tight. Gripping on small
diameter of swivels with a pipe wrench, tighten pipes and/ or swivels. Slip strap onto gooseneck. Apply sealant to inlet
threads of gooseneck and screw into valve body. Tighten and position outlet with valve body. Placing rubber washers on
inlets of valve body, position body assembly up to swivels and hand tighten coupling nuts. Hold assembly up against wall
and mark location of mounting holes for valve body and gooseneck strap. NOTE: Gooseneck strap location optional.
Disconnect assembly from supply lines. Drill starter holes for mounting screws. NOTE: Wall must be supported where
body and strap mounts. Connect valve assembly to supply lines and tighten coupling nuts with wrench. Fasten body and
strap to wall using (4) wood screws provided. Turn water supplies on and flush both hot and cold sides of fitting. Apply
sealant to threads of gooseneck. Screw showerhead onto gooseneck and tighten with pipe wrench. Check all connections
for leaks.

OPERATION

Simply rotate the handles ¼ turn maximum to operate the shower valve.

MAINTENANCE

Valves are washerless and require no routine maintenance. The gleaming finish of your SPEAKMAN COMMANDER
exposed shower can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best
results.
SPEAKMAN COMPANY
COMMANDER® EXPOSED SHOWER
◊
2 - S-2252-AF –
ANYSTREAM® Shower head
◊
LSP –
Less Supply Pipe
◊
3 - S-2253-AF
ANYSTREAM®
Shower head
◊
VR –
Vandal Resistant (S-2252,
S-2253 only)
92-1886
05/00
